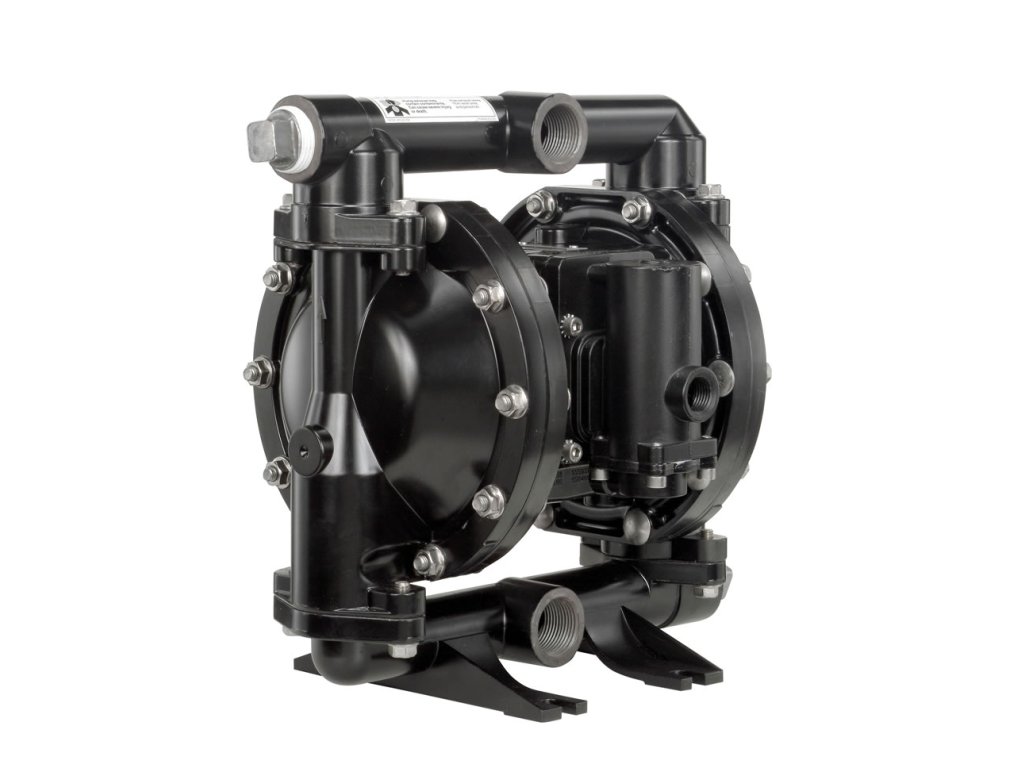

Membránové čerpadlo ARO 1" Hliník/Santopren ATEX, Výkon 200 l/min, výtlak 8,3 bar
Code: PD10A-BCP-AAARelated products
Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.
Santoprene diaphragm for pump ARO PD05P
Air silencer ARO, pos. 201
ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,
ARO, air sleeve, pos. 103
ARO, air service kit, PD03/05/07
Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.
Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.
ARO, valve seat, PVDF, 66605X-4XX, pos. 21
Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings
Santoprene diaphragm for pump ARO PD10, pos. 7
Santoprene diaphragm for pump ARO PD05P
ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)
Product detailed description




Additional parameters
| Category: | ARO diaphragm pump |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 20.7 kg |
| Řada : | ARO |
| Materiál tělesa čerpadla: | Hliník |
| Materiál sedel čerpadla: | Hliník |
| Materiál kuliček čerpadla: | Santopren |
| Materiál membrán čerpadla: | Santopren |
| Max. výkon: | 200 l/min |
| Max. výtlak: | 8,3 bar |
| pH: | 2 až 14 |
| ? Samonasávací schopnost: | -5,7 m |
| Max. teplota média: | |
| Max. velikost pevných částic: | max. 3,2 mm |
| Připojení sání/výtlak: | Vnitřní závit 1" BSPT |
| Pohon: | Stlačený vzduch max. 6,9 bar |
| Připojení vzduch: | Vnitřní závit 1/4" |
| ATEX: | ANO |
