    Optical sensor with metal thread M12x1 AO012

    Code: AO012
    AO012 optický senzor
    96 € / pcs 116 € incl. VAT 96 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    28/08/2025
    • Light sensor - receiver
    • Functional control output
    • Switchable light and dark switching

    Pass-through sensor with M12x1 metal thread - Receiver with 4 m range and adjustable light and dark switching. The remote beam sensor system is characterized by very high detection ranges because it consists of two separate components: a transmitter and a receiver. The automatic AO012 optical receiver reliably switches the range up to 4 m. The light beam moves in only one direction, thus promoting high resistance to dust, water vapor or lens contamination. This ensures a high operating margin. The AO012 receiver is manufactured with M12 metal thread and is combined with the corresponding object recognition transmitter(AO011).

    Further technical parameters and suitable accessories (sensor AA005, AA006, AA007, AA008, attachment AA902 and transmitter AO011)

    Detailed information

    Related products

    AA902 et main 800
    Mounting bracket M12 AA902
    Skladem na externím skladu
    12 € incl. VAT
    10 €

    For safe and optimal installation of M12 sensors.

    Code: AA902
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    220 € incl. VAT
    182 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    325 € incl. VAT
    268 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    266 € incl. VAT
    220 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO004 optický senzor
    Optical sensor stainless steel IP69K AO004
    Skladem na externím skladu
    108 € incl. VAT
    89 €

      Light sensor - receiver Can be used in hygienic and wet areas High quality compact stainless steel cabinet Best optical performance in standard applications - even in humid...

    Code: AO004
    AO017 Mini optický snímač s krytem PA
    Mini optical sensor with PA cover AO017
    Skladem na externím skladu
    178 € incl. VAT
    147 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 Light-switching diffuse reflection sensor with...

    Code: AO017
    AO019 optický senzor s krytem PA
    Mini optical sensor with PA cover AO019
    Skladem na externím skladu
    178 € incl. VAT
    147 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 The AO019 reflected light scanner reliably locates...

    Code: AO019
    AO027 Optický senzor s krytem
    Optical sensor with PA cover AO027
    Skladem na externím skladu
    52 € incl. VAT
    43 €

    Degree of protection IP 65 | IP67 In combination with AO026 receiver Compact design for use in harsh installation conditions The AO027 light sensor features an extremely...

    Code: AO027
    AO021 Mini optický senzor s krytem PA
    Mini optical sensor with PA cover AO021
    Skladem na externím skladu
    154 € incl. VAT
    127 €

    Visible red light for easy adjustment Reflective sensor with polarizing filter Degree of protection IP 65 | IP67 The AO021 dark switchable auto glass reflective sensor with...

    Code: AO021
    AO024 světelný snímač
    Optical sensor with PA cover AO024
    Skladem na externím skladu
    111 € incl. VAT
    92 €

    Degree of protection IP 65 | IP67 Diffuse reflection sensor with background suppression High quality plastic housing The AO024 reflective sensor features a particularly compact...

    Code: AO024
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO012

    General information

    m
    320 Hz
    receiver
    Infrared light

    Outputs / inputs

    light/dark programmable
    .

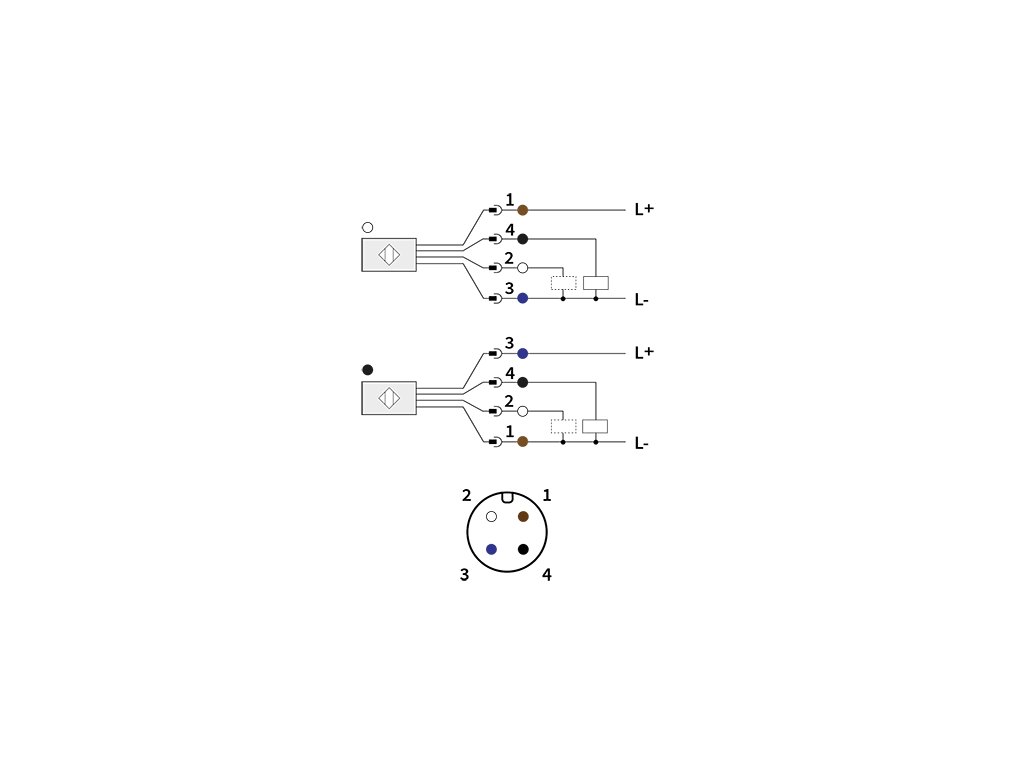

    Electrical data

    Yes
    10 ... 36 V DC
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    II
    30 mA

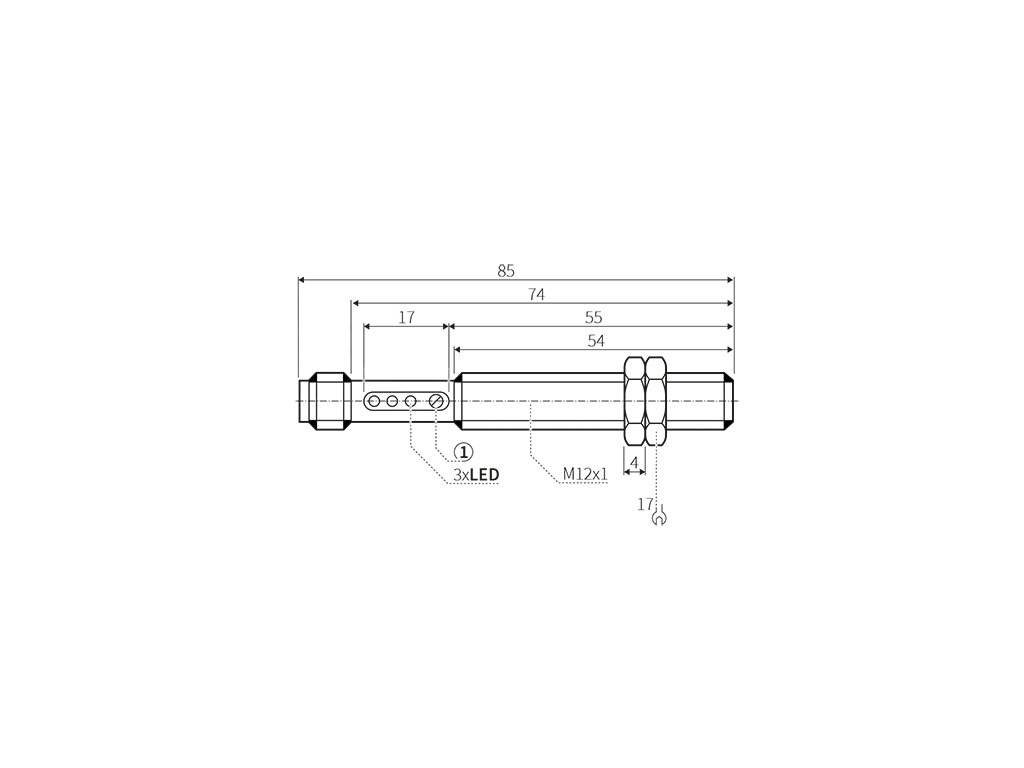

    Mechanical data

    with thread
    Brass white-bronze coated
    gold-plated M12s with 4-pin contacts

    85 mm

    environmental conditions

    . -25°C
    60°C
    IP65

    Further information

    display Switching status: LED, yellow
    Operation: LED, green
    Function: LED, red
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    : Potentiometer for sensitivity adjustment
    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
