    Optical sensor with metal thread M18x1 AO015

    Code: AO015
    Brand: Autosen
    AO015 optické snímače
    66 € / pcs 80 € incl. VAT 66 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    06/05/2025



    • Pass-through sensor - transmitter
    • Visible red light for easy adjustment
    • Degree of protection IP67

    Pass-through sensor with metal thread M18x1 - transmitter with a range of 20 m. The AO015 Passing Light Sensor is a red light transmitter with a range of up to 20 m, which must be combined with a suitable object recognition receiver(AO016). A visible red light allows easy adjustment of the light barrier. The light beam covers only one path, thus promoting high insensitivity to dust, water vapor or lens contamination. This ensures a high operating margin

    The AO015 optical transmitters can be used with the AO016 optical receiver.

    Other technical characteristics and corresponding accessories (sensor line AA005, AA006, AA007, AA008, AA903 mounting and AO016 receiver)

    Detailed information

    Related products

    AA903 et main 800
    Assembly console M18 AA903
    Skladem na externím skladu
    13 € incl. VAT
    11 €

    For safe and optimal installation of M18 sensors.

    Code: AA903
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    217 € incl. VAT
    180 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    320 € incl. VAT
    265 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AL001 et main 800 Laserový senzor
    Laser sensor AL001 Ultra Performance
    Skladem na externím skladu
    462 € incl. VAT
    382 €

    The AL001 automatic laser distance sensor helps with particularly challenging position or level detection tasks with the best performance Wherever red light sensors cannot be...

    Code: AL001
    AO011 optický přijímač
    Optical sensor with metal thread M12x1 AO011
    Skladem na externím skladu
    93 € incl. VAT
    77 €

    Pass-through sensor - transmitter Protection class IP65 DC, 10 ... 36 V Pass-through sensor with metal thread M12x1 - Transmitter with a range of 4 m. The remote beam sensor...

    Code: AO011
    AO029 Optický snímač
    Optical sensor with PA cover AO029
    Skladem na externím skladu
    67 € incl. VAT
    56 €

    Reflective sensor with polarizing filter dark ON Visible red light for easy adjustment The AO029 reflective sensor with high quality plastic housing combines reliability and...

    Code: AO029
    AO030 Optický senzor
    Optical sensor with PA cover AO030
    Skladem na externím skladu
    27 € incl. VAT
    22 €

      In combination with the AO031 transmitter Degree of protection IP67 dark ON AO030 is a dark switch receiver for optical remote sensors that use red light. The device has a...

    Code: AO030
    AO028 Optický senzor s krytem
    Optical sensor with PA cover AO028
    Skladem na externím skladu
    86 € incl. VAT
    71 €

    Visible red light for easy adjustment light ON Protection class IP65 The AO028 diffuse reflection sensor has a threaded plastic housing in M18 threaded design and offers a...

    Code: AO028
    AO019 optický senzor s krytem PA
    Mini optical sensor with PA cover AO019
    Skladem na externím skladu
    175 € incl. VAT
    145 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 The AO019 reflected light scanner reliably locates...

    Code: AO019
    AL003 et main 800 Laserový snímač
    Laser distance sensor M30x1,5 metal thread AL003
    Skladem na externím skladu
    319 € incl. VAT
    263 €

    Laser distance sensor with background suppression, M 30x1.5 metal threads, DC PNP, background suppression, visible laser light, laser safety class 2, adjustment, manual...

    Code: AL003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO015

    General information

    20 m
    red light

    Outputs / inputs

    .

    Electrical data

    10 ... 36 V DC
    DC
    II
    . 15 mA

    Mechanical data

    PMMA
    with thread
    (1.4404)

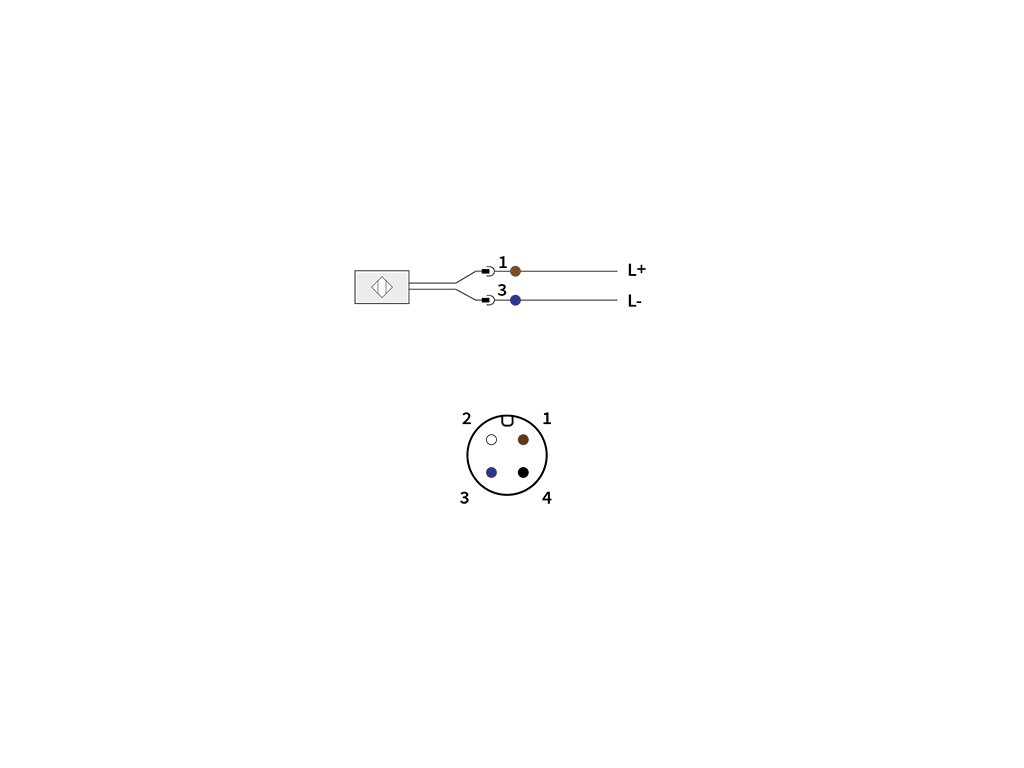

    gold-plated M12 contacts with 2 pins
    contact

    60 mm

    environmental conditions

    . -25°C
    60°C
    IP67

    Further information

    display : LED, green
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
