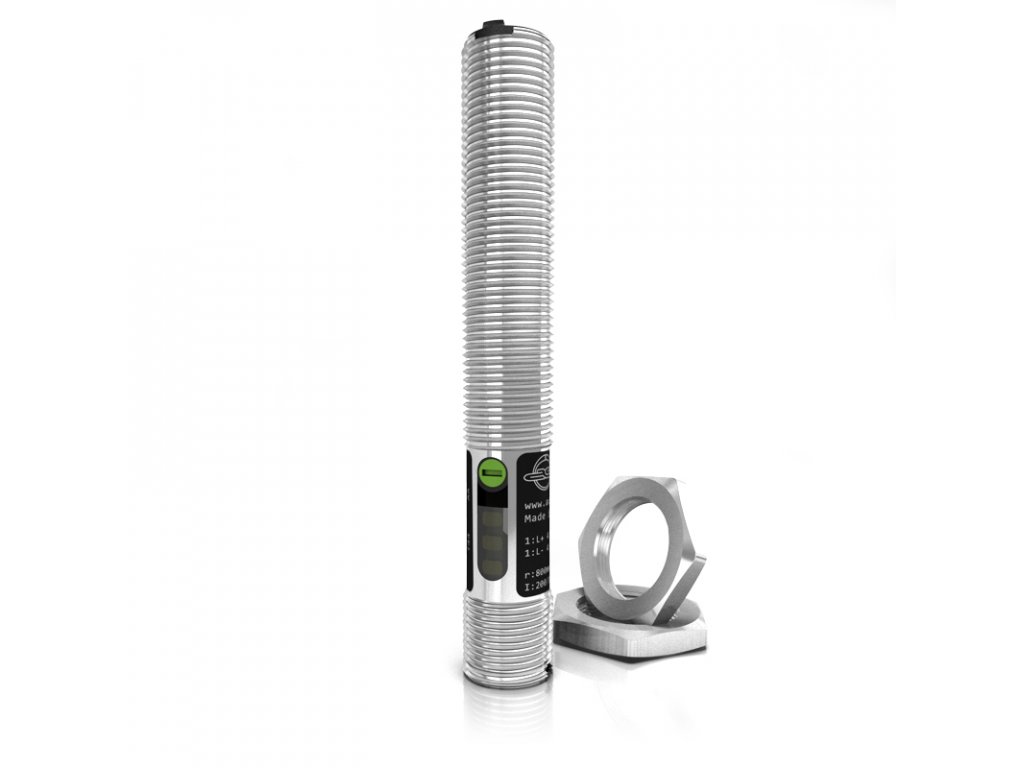

    Optical sensor with metal thread M12x1 AO010

    Code: AO010
    AO010 Optický snímač
    117 € / pcs 142 € incl. VAT 117 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    24/02/2026
    • Reflective sensor with polarizing filter
    • Visible red light for easy adjustment
    • Switchable light and dark switching

    reflective sensors with polarizing filter, M12x1 metal thread - light/programmable and dark output control function. The reflected light barrier AO010 threaded design is used in combination with the reflector (AA950/AA951). The optical transmitter and receiver of the red light are located in a metal housing. The position sensor has a polarizing filter. The main advantage of using a sensor with a polarizing filter in combination with a triple mirror is that the probability of poor function due to high reflectivity (z. B. safety vests, etc.) is minimized. The light is focused on a triple mirror and reflected to rotate 90°. The polarizing filter only allows this beam of light through the switching of the sensor.Other technical characteristics and corresponding accessories (sensor line AA005, AA006, AA007, AA008, AA902 and mounting corner cube AA950 / AA951).



    Detailed information

    Related products

    AA902 et main 800
    Mounting bracket M12 AA902
    Skladem na externím skladu
    13 € incl. VAT
    10 €

    For safe and optimal installation of M12 sensors.

    Code: AA902
    AA950 et main 800
    Circular mirror 80 mm AA950
    Skladem na externím skladu
    15 € incl. VAT
    12 €

    The AA950 circular mirror is designed for red light and infrared reflex light barriers with polarizing filter

    Code: AA950
    AA951 et main 800
    Square mirror 48 x 48 mm AA951
    Skladem na externím skladu
    19 € incl. VAT
    15 €

    The light reflected from the light barrier is sent to the triple mirror AA951. The polarizing filter allows only the intended light beam to be transmitted from the sensor. The...

    Code: AA951
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    223 € incl. VAT
    185 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    329 € incl. VAT
    272 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    270 € incl. VAT
    223 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO009 Optický senzor s kovovým závitem
    Optical sensor with metal thread M12x1 AO009
    Skladem na externím skladu
    140 € incl. VAT
    116 €

    Diffuse reflection sensor with output control function Switchable light and dark switching Highly focused beam of infrared light Diffuse reflection sensor with output control...

    Code: AO009
    AO029 Optický snímač
    Optical sensor with PA cover AO029
    Skladem na externím skladu
    69 € incl. VAT
    57 €

    Reflective sensor with polarizing filter dark ON Visible red light for easy adjustment The AO029 reflective sensor with high quality plastic housing combines reliability and...

    Code: AO029
    AO012 optický senzor
    Optical sensor with metal thread M12x1 AO012
    Skladem na externím skladu
    118 € incl. VAT
    97 €

    Light sensor - receiver Functional control output Switchable light and dark switching Pass-through sensor with M12x1 metal thread - Receiver with 4 m range and adjustable light...

    Code: AO012
    AO019 optický senzor s krytem PA
    Mini optical sensor with PA cover AO019
    Skladem na externím skladu
    180 € incl. VAT
    149 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 The AO019 reflected light scanner reliably locates...

    Code: AO019
    AO003 optický senzor
    Optical sensor stainless steel IP69K AO003
    Skladem na externím skladu
    75 € incl. VAT
    62 €

    Pass-through sensor - transmitter Can be used in hygienic and wet areas High quality compact stainless steel cabinet Best optical performance in standard applications - even...

    Code: AO003
    AO001 optický senzor
    Optical sensor stainless steel IP69K AO001
    Skladem na externím skladu
    177 € incl. VAT
    146 €

    IO-Link interface Diffuse reflection sensor with background suppression Can be used in hygienic and wet areas Best optical performance in standard applications - even in humid...

    Code: AO001
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO010

    General information

    .1 ... 0,8 m
    320 Hz
    Reflective light barrier
    red light

    Outputs / inputs

    light/dark programmable
    .

    Electrical data

    Yes
    10 ... 36 V DC
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    II
    35 mA

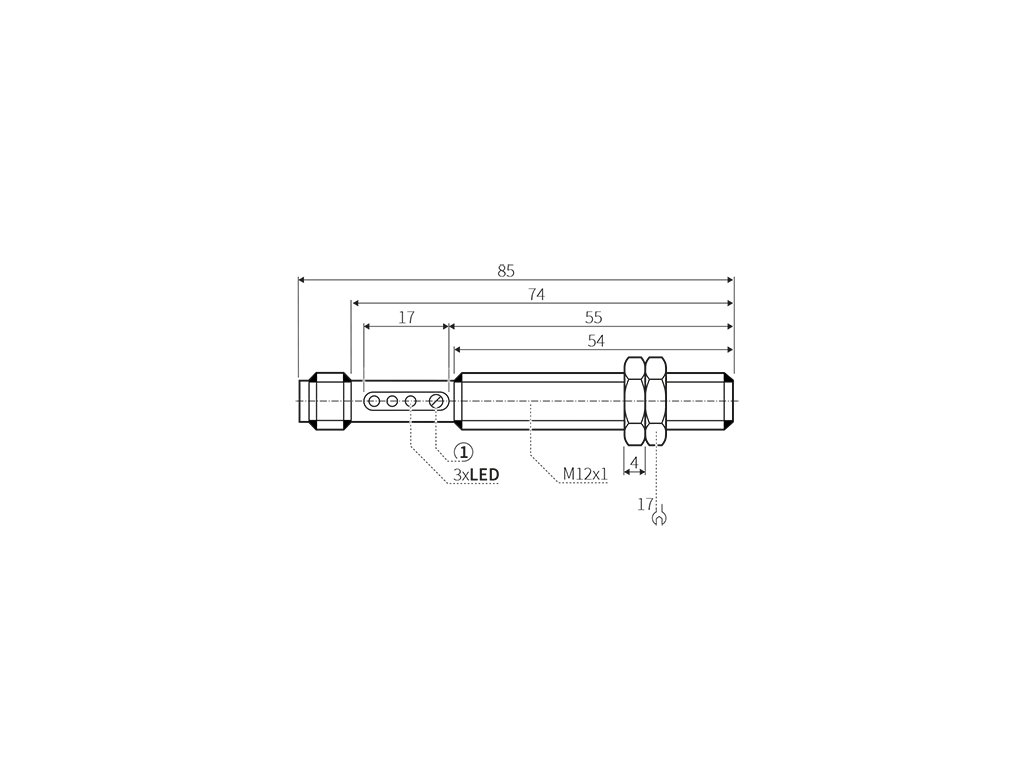

    Mechanical data

    with thread
    Brass white-bronze coated
    gold-plated M12 contacts with 4-pin contacts

    85 mm

    environmental conditions

    . -25°C
    60°C
    IP65

    Further information

    display Switching status: LED, yellow
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    : Potentiometer for sensitivity adjustment
    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
