    Mini optical sensor with PA cover AO023

    Code: AO023
    Brand: Autosen
    AO023 Mini optický senzor s krytem PA
    102 € / pcs 123 € incl. VAT 102 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    06/05/2025
    • Light sensor - receiver
    • In combination with the AO022 transmitter
    • Compact design for use in harsh installation conditions

    The AO023 is used as a dark switch receiver for long-beam optical sensors. A suitable transmitter is AO022. The optical system works with red light and has a very long range of almost three meters. Distance and all other parameters can be easily set using IO-Link with the io software

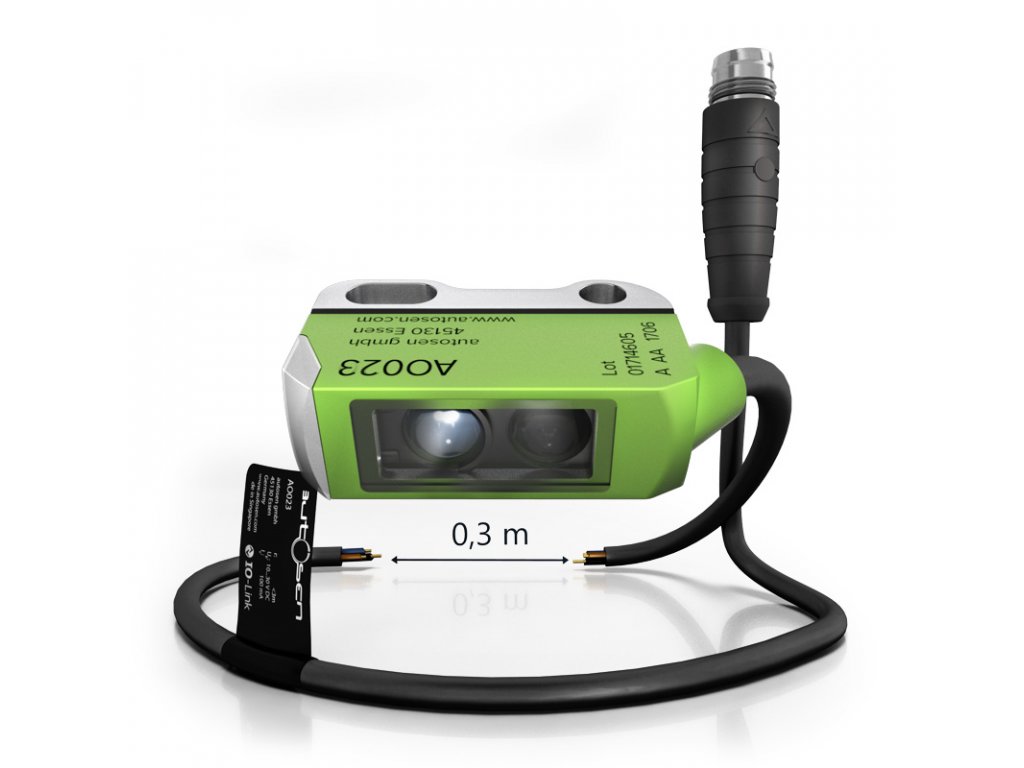

    In the case of through-beam sensors, the path of the light beam is only in one direction. This has the advantage that the optical system is less sensitive to dust, steam and other interfering factors. The high IP67 protection rating provides reliable detection of very small, flat and mirrored objects even in harsh environments. The compact design allows installation in tight spaces. Connection is very convenient via an M8 connector, which is connected to the light barrier receiver via a 30 cm 3 x 0.08 mm² PVC cable



    Detailed information

    Related products

    AA948 et main 800
    Mounting bracket AA948
    Skladem na externím skladu
    21 € incl. VAT
    17 €

    For safe and optimal sensor installation.

    Code: AA948
    AA009 et main 800 Kabel pro snímač
    Sensor cable 2 m PUR M 8 4 pole IP 69 AA009
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Resistant to oils and coolant lubricants Degree of protection IP65 | IP67 | IP68 | IP 69K AC/DC

    Code: AA009
    AA011 et main 800 konektor pro snímač
    Sensor cable 2 m PUR M8 4 pole IP 69 AA011
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Resistant to oils and coolant lubricants Degree of protection IP65 | IP67 | IP68 | IP 69K AC/DC

    Code: AA011
    AA013 et main 800 kabel do potravinářský průmysl
    Sensor cable 2 m PVC M8 4 polar IP69 AA013
    Skladem na externím skladu
    24 € incl. VAT
    20 €

    Can be used in hygienic and humid areas Vibration and shock resistant AC/DC

    Code: AA013
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    217 € incl. VAT
    180 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    320 € incl. VAT
    265 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    263 € incl. VAT
    217 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO016 Optický senzor
    Optical sensor with metal thread M18x1 AO016
    Skladem na externím skladu
    92 € incl. VAT
    76 €

    Light sensor - receiver Dark switching (normally open) Degree of protection IP67 Self-contained pass-through sensor with M18x1 metal thread - receiver with a range of 20 m. The...

    Code: AO016
    AO030 Optický senzor
    Optical sensor with PA cover AO030
    Skladem na externím skladu
    27 € incl. VAT
    22 €

      In combination with the AO031 transmitter Degree of protection IP67 dark ON AO030 is a dark switch receiver for optical remote sensors that use red light. The device has a...

    Code: AO030
    AO020 Mini optický senzor s krytem
    Mini optical sensor with PA cover AO020
    Skladem na externím skladu
    175 € incl. VAT
    145 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 With the AO020 reflective light scanner, the...

    Code: AO020
    AO003 optický senzor
    Optical sensor stainless steel IP69K AO003
    Skladem na externím skladu
    73 € incl. VAT
    60 €

    Pass-through sensor - transmitter Can be used in hygienic and wet areas High quality compact stainless steel cabinet Best optical performance in standard applications - even...

    Code: AO003
    AO012 optický senzor
    Optical sensor with metal thread M12x1 AO012
    Skladem na externím skladu
    115 € incl. VAT
    95 €

    Light sensor - receiver Functional control output Switchable light and dark switching Pass-through sensor with M12x1 metal thread - Receiver with 4 m range and adjustable light...

    Code: AO012
    AO010 Optický snímač
    Optical sensor with metal thread M12x1 AO010
    Skladem na externím skladu
    138 € incl. VAT
    114 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment Switchable light and dark switching reflective sensors with polarizing filter, M12x1 metal thread...

    Code: AO010
    AO006 optický senzor
    Optical sensor with PA cover AO006
    Skladem na externím skladu
    155 € incl. VAT
    128 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment dark ON The optical sensor AO006 is one of the retroreflective sensors that are used in...

    Code: AO006
    AO022 Mini optický senzor s krytem PA
    Mini optical sensor with PA cover AO022
    Skladem na externím skladu
    107 € incl. VAT
    88 €

    Pass-through sensor - transmitter In combination with the AO023 receiver Compact design for use in harsh installation conditions   AO022 is a transmitter for optical remote...

    Code: AO022
    AO014 Optický snímač s kovovým závitem M18x1
    Optical sensor with metal thread M18x1 AO014
    Skladem na externím skladu
    111 € incl. VAT
    92 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment Dark switching (normally open) Reflective light barrier with polarizing filter, M18x1-metal...

    Code: AO014
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO023

    General information

    m *
    In combination with the AO022 transmitter
    receiver
    red light

    Outputs / inputs

    dark
    Yes

    Electrical data

    Yes
    10 ... 30 V DC power class 2 cULus
    Yes
    DC
    PNP
    100 mA
    2.5 V
    III
    . 15 mA

    Mechanical data

    PMMA
    (1.4401)
    ABS

    Gold plated 4-pin contacts with pigtail

    environmental conditions

    . -25°C
    60°C
    IP65/IP67

    Further information

    display Switching status: LED, yellow
    Operation: LED, green
    No accessories
    DIN EN 60947-5-2
    CE

    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
