    Home / Produkty / Průmyslová automazice / Snímače polohy / Laserové snímače / Optical sensor with metal thread M18x1 AO016

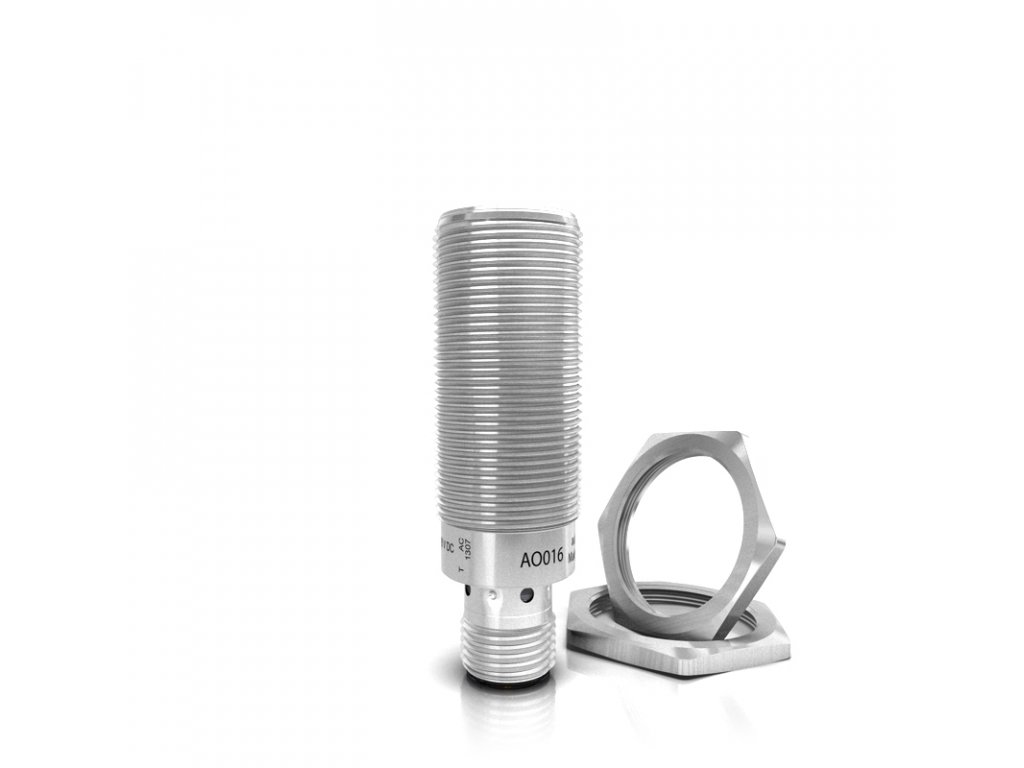

    Optical sensor with metal thread M18x1 AO016

    Code: AO016
    AO016 Optický senzor
    78 € / pcs 94 € incl. VAT 78 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    23/09/2025
    • Light sensor - receiver
    • Dark switching (normally open)
    • Degree of protection IP67

    Self-contained pass-through sensor with M18x1 metal thread - receiver with a range of 20 m. The through-beam sensor AO016 is a red light receiver that must be combined with the corresponding object recognition transmitter(AO015). The AO016 optically receiver reliably switches to a range of up to 20 m. A visible red light allows easy adjustment of the light barrier. The light beam covers only one path and therefore supports a high operating margin

    Optical receiver AO016 can be used with optical transmitter AO015

    Additional technical parameters and suitable accessories (sensor cable AA005, AA006, AA007, AA008, clamp AA903 and receiver AO015)

    Detailed information

    Related products

    AA903 et main 800
    Assembly console M18 AA903
    Skladem na externím skladu
    13 € incl. VAT
    11 €

    For safe and optimal installation of M18 sensors.

    Code: AA903
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    223 € incl. VAT
    184 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    328 € incl. VAT
    271 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    269 € incl. VAT
    222 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO026 optický senzor
    Optical sensor with PA cover AO026
    Skladem na externím skladu
    64 € incl. VAT
    53 €

    Switchable light and dark switching Degree of protection IP 65 | IP67 In combination with the AO027 transmitter The AO026 light sensor features a particularly compact...

    Code: AO026
    AO017 Mini optický snímač s krytem PA
    Mini optical sensor with PA cover AO017
    Skladem na externím skladu
    180 € incl. VAT
    149 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 Light-switching diffuse reflection sensor with...

    Code: AO017
    AO013 Reflexní světelný snímač
    Optical sensor with metal thread M18x1 AO013
    Skladem na externím skladu
    127 € incl. VAT
    105 €

    Diffuse reflection sensor with background suppression Visible red light for easy adjustment light ON Diffuse reflection sensor with background suppression and potentiometer for...

    Code: AO013
    AO022 Mini optický senzor s krytem PA
    Mini optical sensor with PA cover AO022
    Skladem na externím skladu
    109 € incl. VAT
    90 €

    Pass-through sensor - transmitter In combination with the AO023 receiver Compact design for use in harsh installation conditions   AO022 is a transmitter for optical remote...

    Code: AO022
    AO012 optický senzor
    Optical sensor with metal thread M12x1 AO012
    Skladem na externím skladu
    117 € incl. VAT
    97 €

    Light sensor - receiver Functional control output Switchable light and dark switching Pass-through sensor with M12x1 metal thread - Receiver with 4 m range and adjustable light...

    Code: AO012
    AO029 Optický snímač
    Optical sensor with PA cover AO029
    Skladem na externím skladu
    69 € incl. VAT
    57 €

    Reflective sensor with polarizing filter dark ON Visible red light for easy adjustment The AO029 reflective sensor with high quality plastic housing combines reliability and...

    Code: AO029
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO016

    General information

    20 m
    1000 Hz
    receiver
    red light

    Outputs / inputs

    dark
    .

    Electrical data

    Yes
    10 ... 36 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    II
    10 mA

    Mechanical data

    PMMA
    with thread
    (1.4404)

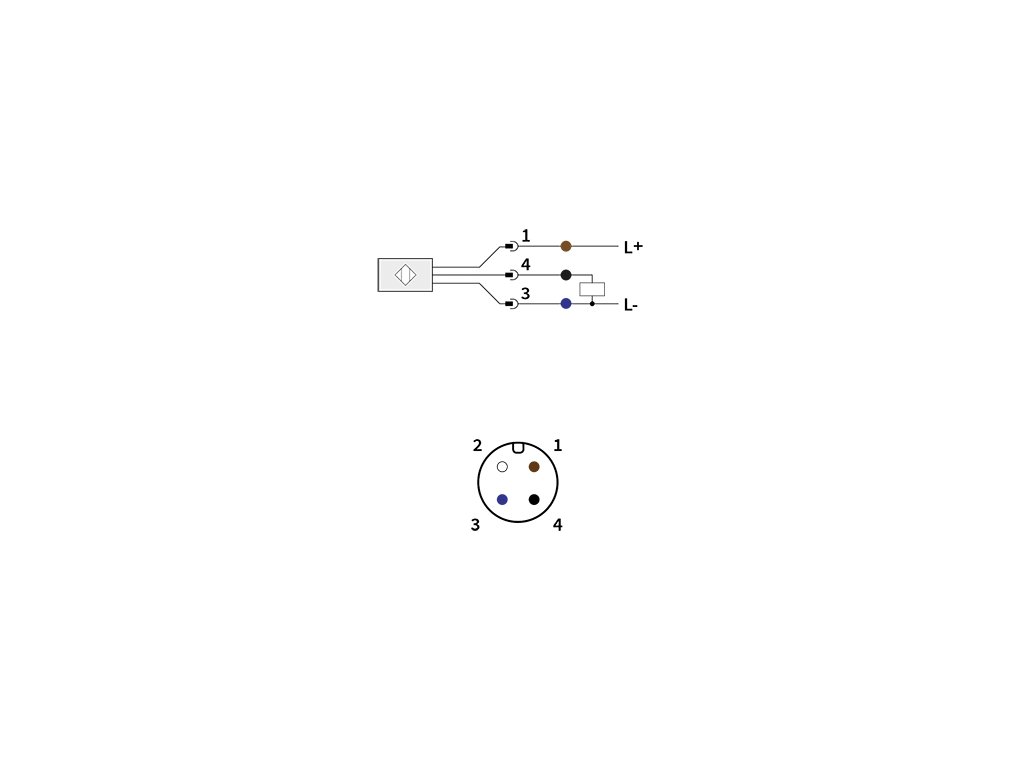

    gold-plated M12 contacts with 3 pins


    60 mm

    environmental conditions

    . -25°C
    60°C
    IP67

    Further information

    display Switching status: LED, yellow
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
