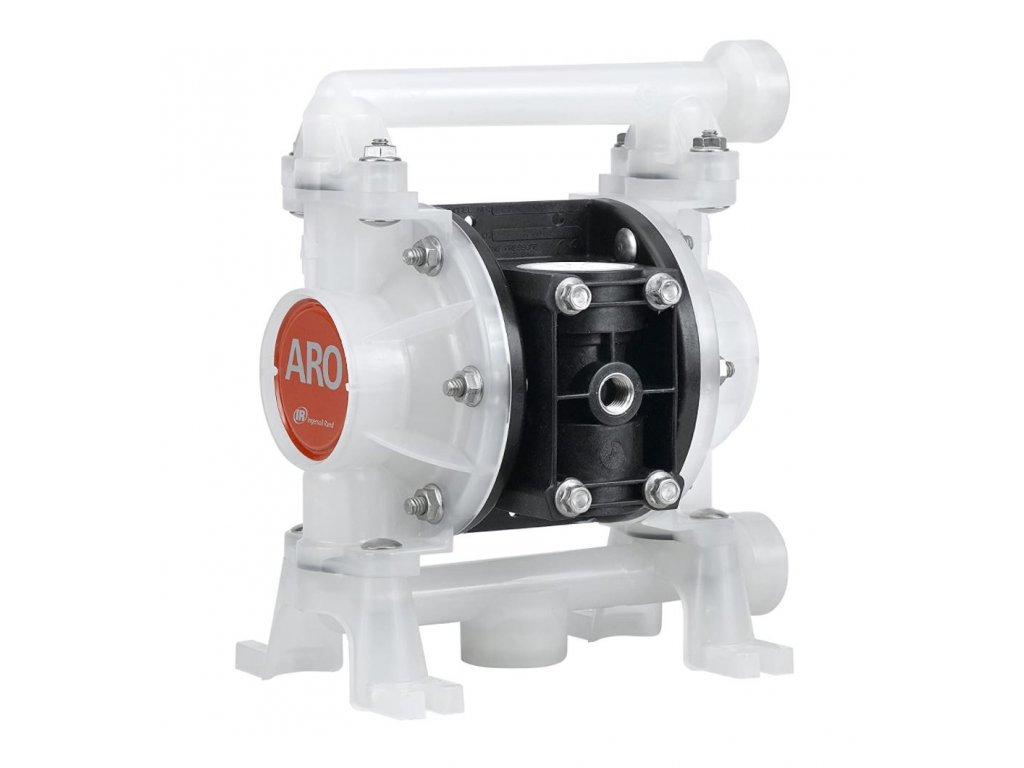

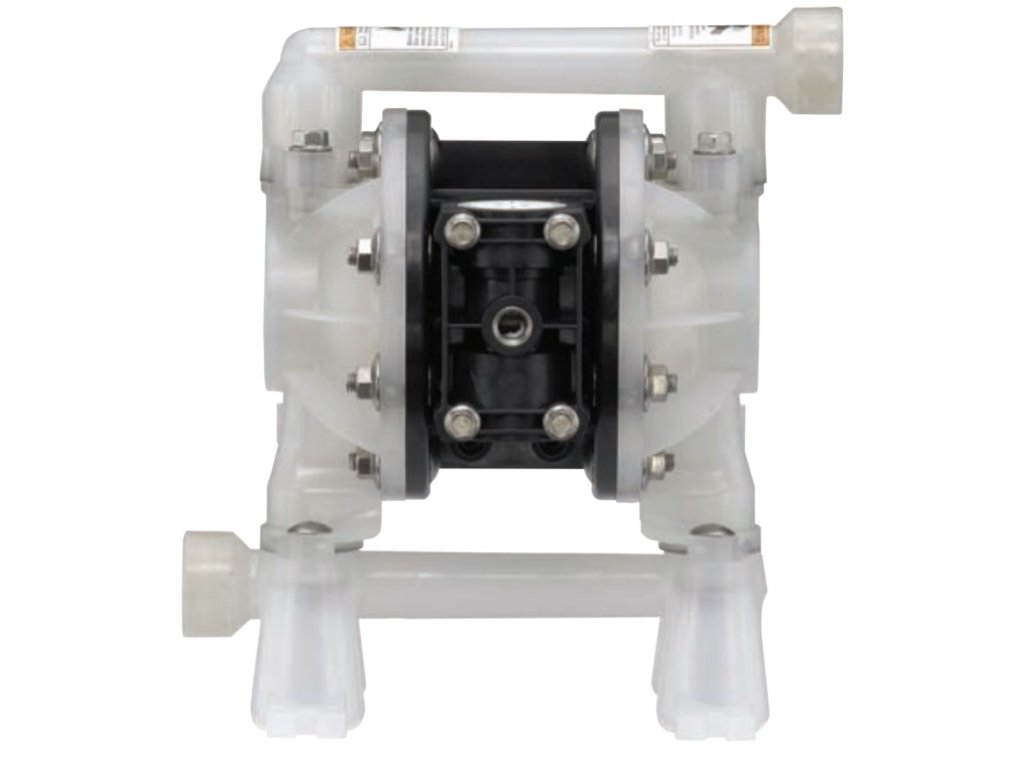

Diaphragm pump ARO 1/2" Acetal/Teflon, Output 54 l/min, pressure 6.9 bar including ATEX certificate
Code: PD05-BDS-DTT-BRelated products
Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.
Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings
Air silencer ARO, pos. 201
ARO, air service kit, PD03/05/07
Santoprene diaphragm for pump ARO PD05P
Santoprene diaphragm for pump ARO PD10, pos. 7
Santoprene diaphragm for pump ARO PD05P
ARO, air sleeve, pos. 103
ARO, valve seat, PP, pos. 21
ARO, valve seat, PVDF, 66605X-4XX, pos. 21
Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.
Air service kit for pump ARO PD03/05/07
Santoprene wheel for pump ARO PD05P, pos. 22
ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)
ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 rok vyjma dílů podléhajícímu vysokému stupni opotřebení |
Weight: | 2.6 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Acetal - vodivý |
Materiál sedel čerpadla: | Acetal - vodivý |
Materiál kuliček čerpadla: | Teflon |
Materiál membrán čerpadla: | Teflon |

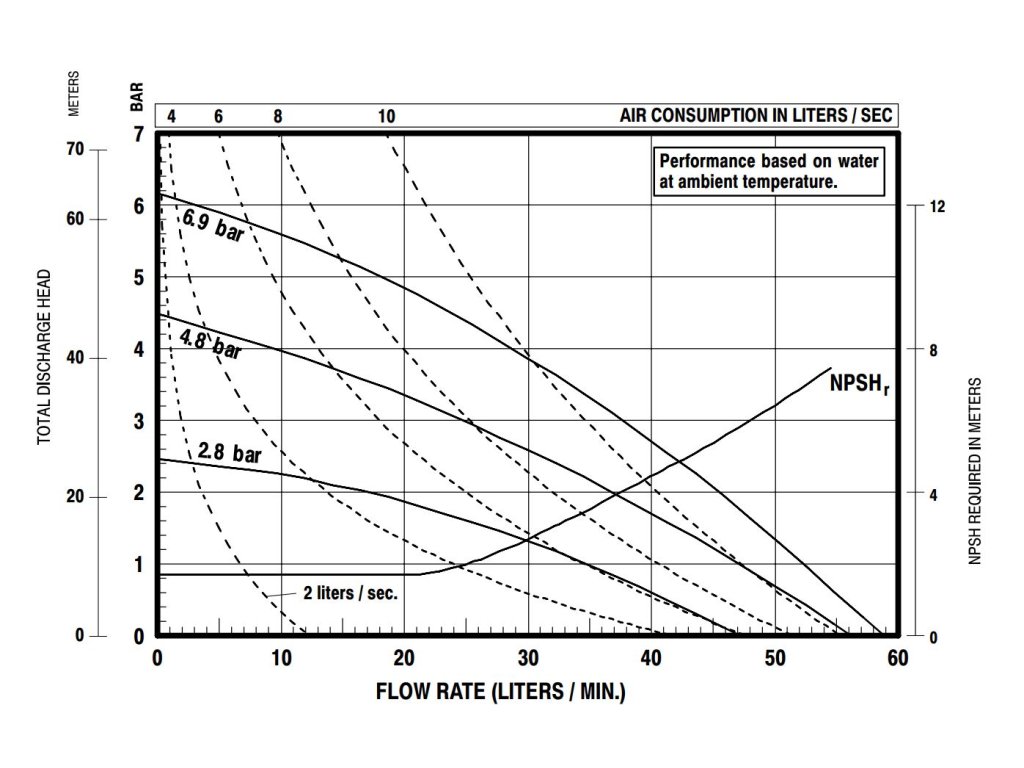

Max. výkon: | 54 l/min |
Max. výtlak: | 6,9 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | +66°C |
Max. velikost pevných částic: | max. 2,4 mm |

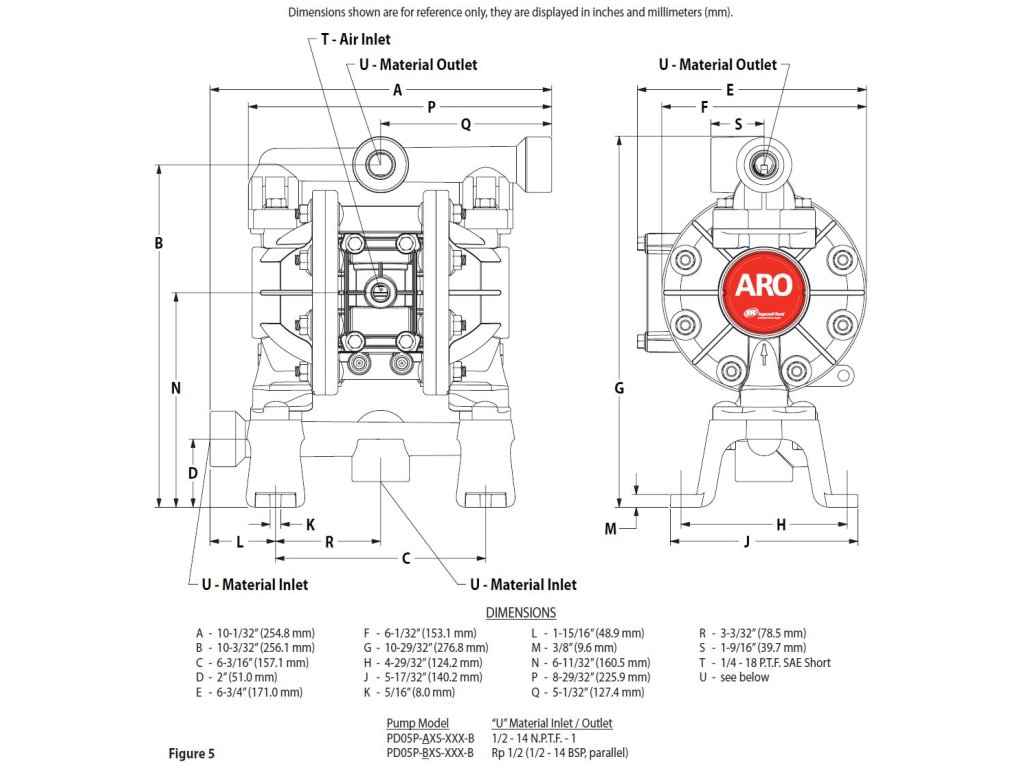

Připojení sání/výtlak: | Vnitřní závit 1/2" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | ANO |
Certifikát FDA: | ANO |
