    Ultrasonic sensor AU001

    Code: AU001
    Brand: Autosen
    AU001 ultrazvukový senzor
    €177 / pcs €214 incl. VAT €177 / 1 pcs
    Skladem na externím skladu
    Delivery to:
    07/05/2024
    • 8 Hz switching frequency
    • Resolution 3 mm
    • Degree of protection IP67

    Whether it is a tall or optically difficult object (high contrast, specular, transparent, dark) - ultrasonic probes detect objects without contact and with high resolution even in the presence of haze and dust

    The self-cleaning diaphragm of the transducer emits ultrasonic waves in short pulses and receives a reflection signal to calculate the distance from the millimeter from the running time. The new generation of ultrasonic sensors is extremely robust and less susceptible to interference

    With the AA965 sound tube you can reduce the sound cone and thus adjust the measurement range



    Detailed information

    Related products

    AA903 et main 800
    Assembly console M18 AA903
    Skladem na externím skladu
    €13 incl. VAT
    €11

    For safe and optimal installation of M18 sensors.

    Code: AA903
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    €17 incl. VAT
    €14

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    €18 incl. VAT
    €15

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    €215 incl. VAT
    €178

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    €317 incl. VAT
    €262

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    €260 incl. VAT
    €215

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AA965 et main 800
    Sound tube for ultrasonic sensors AA965
    Skladem na externím skladu
    €45 incl. VAT
    €37

    The AA965 probe is bolted to the front of the M18 sensor. This reduces the shape of the emitted sound cone while reducing the maximum range. This makes it possible to prevent...

    Code: AA965
    AA963 et main 800
    Angle of sound deflection small for ultrasonic sensors AA963
    Skladem na externím skladu
    €40 incl. VAT
    €33

    The AA963 sound deflection angle is suitable for M18 type ultrasonic transducers with a switching distance of up to 1200 mm. The transducer is used so that the emitted sound...

    Code: AA963
    Show all related products Previous product Next product

    Product detailed description

    Technical data AU001

    General information

    40 ... 300 mm
    Hz

    Outputs / inputs

    normally open/normally closed programmable
    .

    Electrical data

    Yes
    10 ... 30 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    100 mA
    2.2 V
    III
    35 mA
    delay time .1 s

    Mechanical data

    Polyamide (PA)
    Epoxy glass-ceramic
    with thread
    (1.4404)
    gold-plated M12 contacts

    ,5 mm

    accuracy

    4°
    compensation Yes

    environmental conditions

    -20°C
    70°C
    IP67

    Further information

    202
    display green 2 x LED
    Teachingingang
    fixing nuts
    Yes
    DIN EN 61000-4-2 ESD
    DIN EN 61000-4-3 HF blasted
    DIN EN 61000-4-4 Welding
    DIN EN 61000-4-6 HF cable
    DIN EN 55011: Class A
    DIN EN 60068-2-27
    DIN EN 60068-2-6 Fc
    CE
    cULus


    Dimensional drawing : LED
    2: Teach button

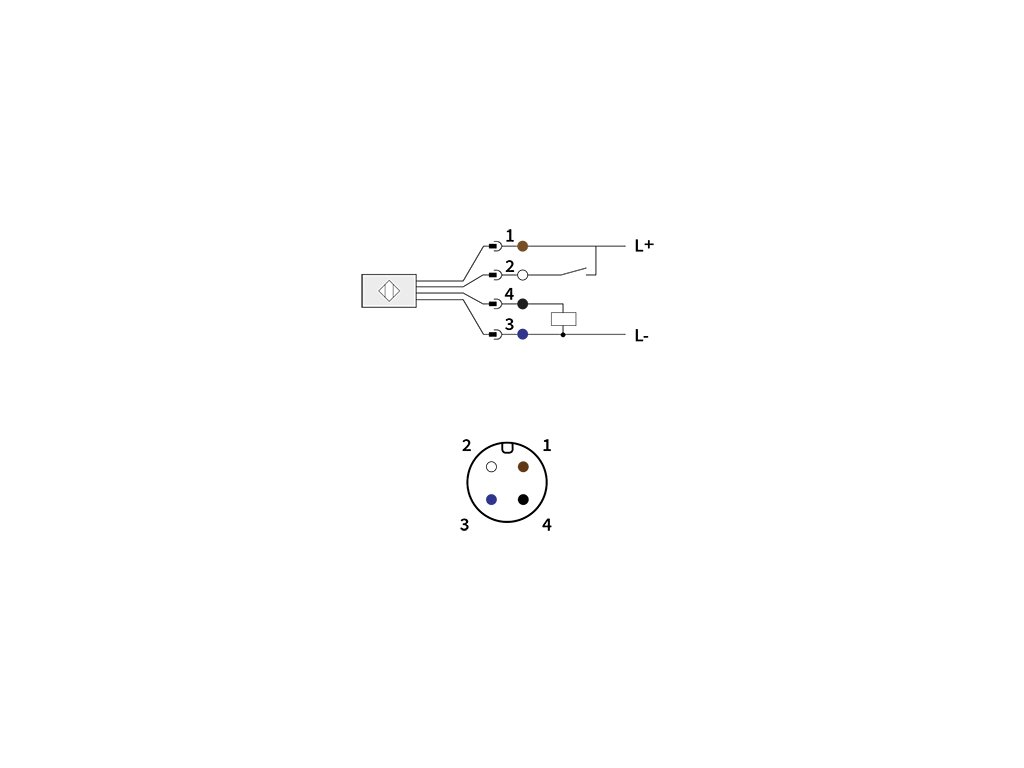

    pin Pin 2 = Teach

    Additional parameters

    Category: Ultrazvukové senzory
    Warranty: 5 let
    Weight: 0.1 kg
