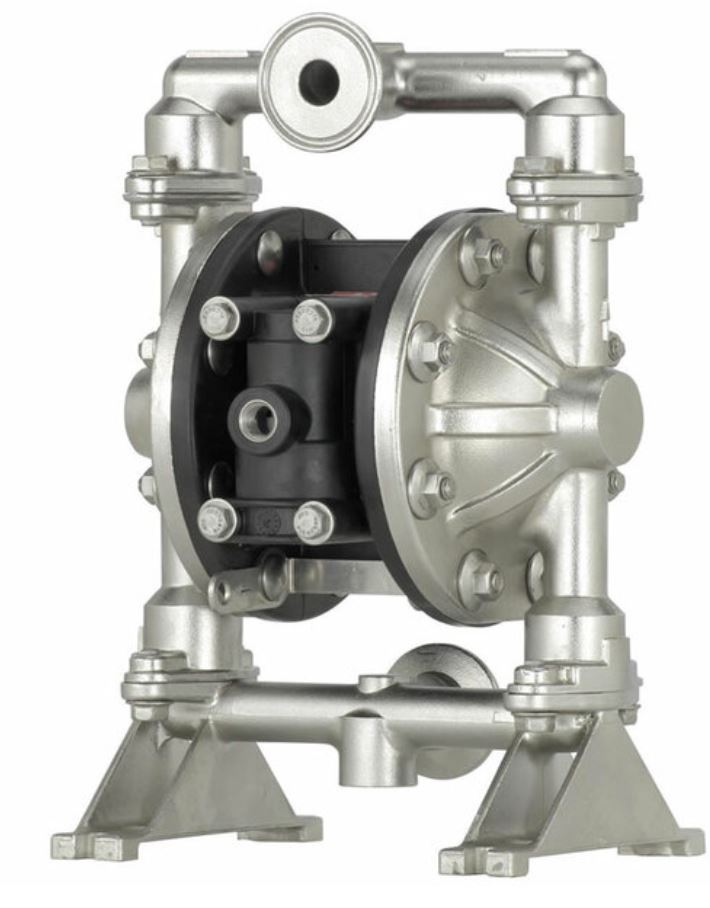

Food diaphragm pump ARO 1 1/2" Stainless steel/Teflon, Performance 49 l/min, pressure 6.9 bar
Code: PM05R-CSS-STT-B02Related products

Air service kit for pump ARO PD03/05/07

Santoprene wheel for pump ARO PD05P, pos. 22

Santoprene diaphragm for pump ARO PD05P


Santoprene diaphragm for pump ARO PD10, pos. 7

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

ARO, air service kit, PD03/05/07

ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,


Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.

Hytrel diaphragm for pump ARO 6605 XXXXX

Santoprene diaphragm for pump ARO PD05P

ARO, air sleeve, pos. 103

ARO, valve seat, PVDF, 66605X-4XX, pos. 21
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 rok vyjma dílů podléhajícímu vysokému stupni opotřebení |
Weight: | 7 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Nerez ocel SS316 L |
Materiál sedel čerpadla: | Nerez ocel SS316 L |
Materiál kuliček čerpadla: | Teflon |
Materiál membrán čerpadla: | Teflon |
Max. výkon: | 49 l/min |
Max. výtlak: | 6,9 bar |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | +66°C |
Max. velikost pevných částic: | max. 2,4 mm |
Připojení sání/výtlak: | Tri-Clamp 1 1/2" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | NE |
Certifikát FDA: | ANO |

Membrane pump ARO in material Polypropylen/Teflon. Output 40 l/min, displacement 8.3 bar. The material design of the pump is suitable for acids, alkalis and various chemical...

Plastic barrel pump ARO PD05, max. output 54,5 l/min, suitable for neutral and abrasive media.

Diaphragm pump ARO 1/4" Polypropylene / SANTOPRENE, Output 20 l/min, discharge pressure 8,3 bar. Material Polypropylen, membrane and Santoprene beads. The pump is suitable for...

Membrane pump ARO PD05P-ARS-PAA-B with compressed air drive. Connection internal thread 1/2" NPT. Pump material Polypropylen/Santoprene. Max. output 54 l/min, discharge pressure...

Membrane pump ARO PD20A-BAP-GGG-B in material Hliník/Nitril, output 651 l/min, max 8.3 bar, connection internal thread 2".

Plastic drum pump ARO PD05, max. output 54,5 l/min, suitable for chemicals.

Plastic diaphragm pump ARO in material version polypropylene, diaphragm and Santoprene beads. Max. pump output Pump material design 465 l/min, max. discharge 8.3 bar. The...

Membrane pump ARO PD05P-BRS-PAA-B with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene, max. output 54 l/min, discharge pressure...

Diaphragm pump ARO 66605J-3EB with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 49,2 l/min at water, discharge...


Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Teflon, Output 178 l/min, displacement 8,3 bar


Membrane pump ARO in material Acetal/Teflon. The pump is suitable for pumping flammable liquids into hazardous areas.

Diaphragm pump, output 133 l/min, discharge 8,3 bar, material Hliník, seats Hliník, diaphragms and balls Teflon. Alternative replacement for pump ARO 670021 (66120-389-C)

Membrane pump ARO PD05P-BES-DTT-B with compressed air drive. Connection internal thread 1/2" BSP. Pump material Acetal/Teflon, max. output 54 l/min, discharge pressure 6.9 bar....

Diaphragm pump, output 133 l/min, discharge 8,3 bar, material Hliník, seats Hliník, diaphragms and balls Teflon. Alternative replacement for pump ARO 666120-3C9-C
-
Katalogový list (1.3 MB)
-
Manuál ang. (763.9 kB)
-
Technický list (177.5 kB)
-
Certifikát FDA (89 kB)
-
Tabulka chemických odolností (4.3 MB)
-
Manuál (358.9 kB)
-
CE (79.7 kB)
