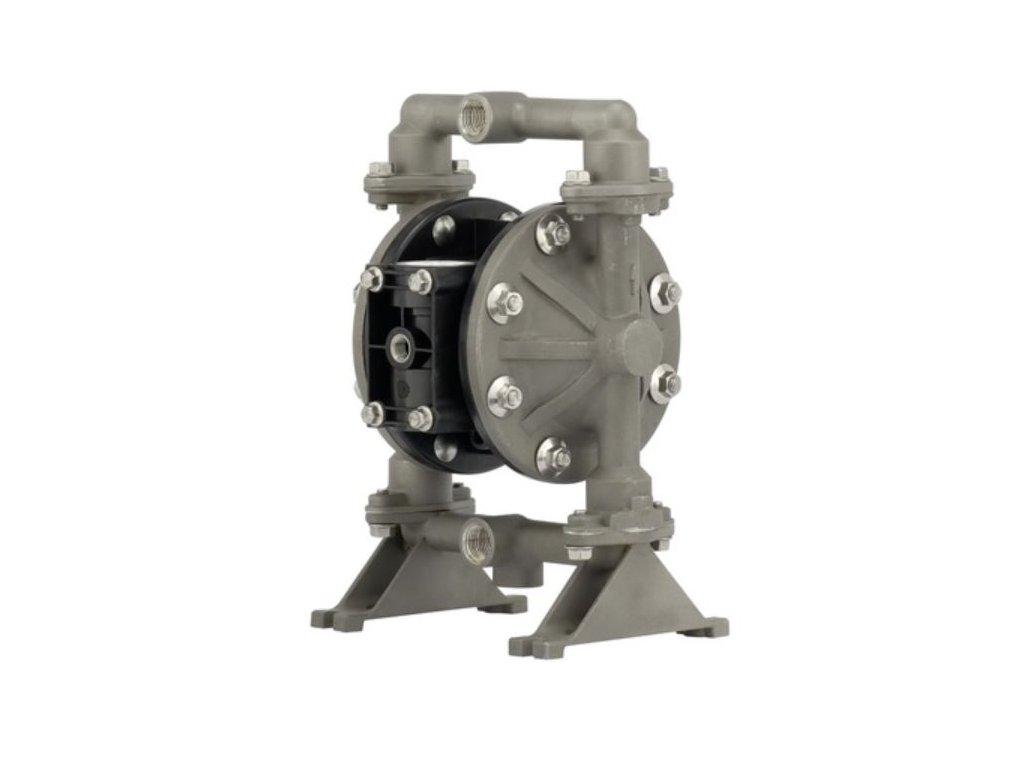

Diaphragm pump ARO 1/2" Stainless steel SS/Teflon, Output 54.5 l/min, pressure 8.3 bar Výkon 54,5 l/min, výtlak 8,3 bar
Code: PD05R-BSS-STT-BRelated products

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.

ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings

Air silencer ARO, pos. 201

ARO, valve seat, PP, pos. 21

Santoprene diaphragm for pump ARO PD10, pos. 7


Hytrel diaphragm for pump ARO 6605 XXXXX

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Santoprene diaphragm for pump ARO PD05P

Santoprene diaphragm for pump ARO PD05P

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

ARO, air sleeve, pos. 103

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Santoprene wheel for pump ARO PD05P, pos. 22
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 year |
Weight: | 7.5 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Nerez ocel SS 316 L |
Materiál sedel čerpadla: | Nerez ocel SS 316 L |
Materiál kuliček čerpadla: | Teflon |
Materiál membrán čerpadla: | Teflon |
Max. výkon: | 54,5 l/min |
Max. výtlak: | 6,9 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | +107°C |
Max. velikost pevných částic: | max. 2,4 mm |
Připojení sání/výtlak: | Vnitřní závit 1/2" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | ANO, 2006/42/EC (Machinery), 94/9/EC (ATEX – Group II 2GD X) |
