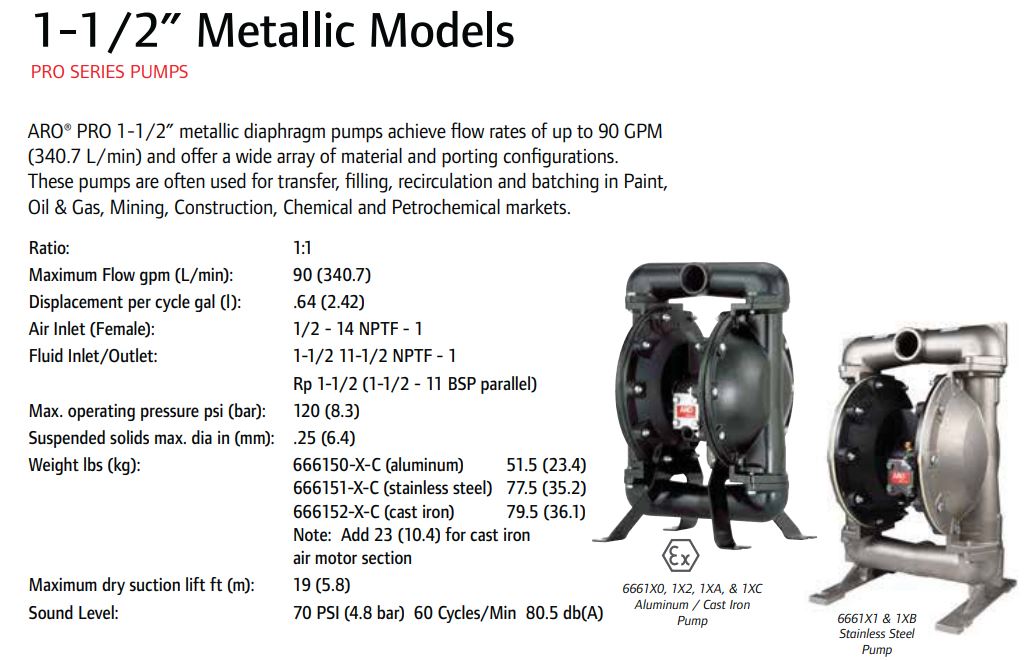

Diaphragm pump ARO 66617B-222-C 1 1/2" Stainless steel steel/Nitrile, 340 l/min, max 8.3 bar
Code: 66617B-222-CRelated products


Hytrel diaphragm for pump ARO 6605 XXXXX

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings

Air service kit for pump ARO PD03/05/07

ARO, air service kit, PD03/05/07

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Santoprene diaphragm for pump ARO PD05P

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.

ARO, valve seat, PP, pos. 21

Santoprene diaphragm for pump ARO PD05P

ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Santoprene wheel for pump ARO PD05P, pos. 22

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

Air silencer ARO, pos. 201

ARO, air sleeve, pos. 103
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
Weight: | 36 kg |
Řada : | ARO FDA |
Materiál tělesa čerpadla: | Nerez ocel SS 316 L |
Materiál sedel čerpadla: | Nerez ocel SS 316 L |
Materiál kuliček čerpadla: | Nitril |
Materiál membrán čerpadla: | Nitril |
Max. výkon: | 340 l/min |
Max. výtlak: | 8,3 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -5,02 m |
Max. teplota média: | |
Max. velikost pevných částic: | max. 6,4 mm |
Připojení sání/výtlak: | 1-1/2" BSP vnitřní závit |
Pohon: | Stlačený vzduch max. 8,3 bar |
Připojení vzduch: | Vnitřní závit 1/2" |
