    Inductive sensor all metal IP69K AI017

    Code: AI017
    Brand: Autosen
    AI017 et main 800 nerezový senzor pro potravinářský provoz
    €77 / pcs €94 incl. VAT €77 / 1 pcs
    Skladem na externím skladu
    Delivery to:
    02/05/2024
    • Compressive strength: 100 bar, all-metal housing
    • DC, 10 ... 36 V, normally open, PNP
    • Degree of protection IP65 | IP67 | IP68 | IP 69K

    Due to the leak-proof rating: IP 67 / IP 68 / IP 69K and safe food storage materials, our all-metal sensors are ideally suited for use in food and industrial applications and wet areas. Frequent cleaning processes, temperature shocks and high resistance to cleaning agents underline the extremely high quality of the inductive sensors, which can be used at ambient temperatures up to 100°C. Increased switching distances and a correction factor of 1 on steel and stainless steel round out the performance spectrum at the top.

    Detailed information

    Related products

    AA902 et main 800
    Mounting bracket M12 AA902
    Skladem na externím skladu
    €12 incl. VAT
    €10

    For safe and optimal installation of M12 sensors.

    Code: AA902
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    €16 incl. VAT
    €14

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    €18 incl. VAT
    €15

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    €21 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    €22 incl. VAT
    €18

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    €215 incl. VAT
    €178

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    €317 incl. VAT
    €262

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    €260 incl. VAT
    €215

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AI017

    General information

    mm
    500 Hz

    Outputs / inputs

    open (NO)

    Electrical data

    Yes
    10 ... 36 V DC
    Yes
    Yes
    DC
    PNP
    100 mA
    2.5 V
    III
    . 25 mA

    Mechanical data

    (1.4404)
    with thread
    Do not discharge
    (1.4404)

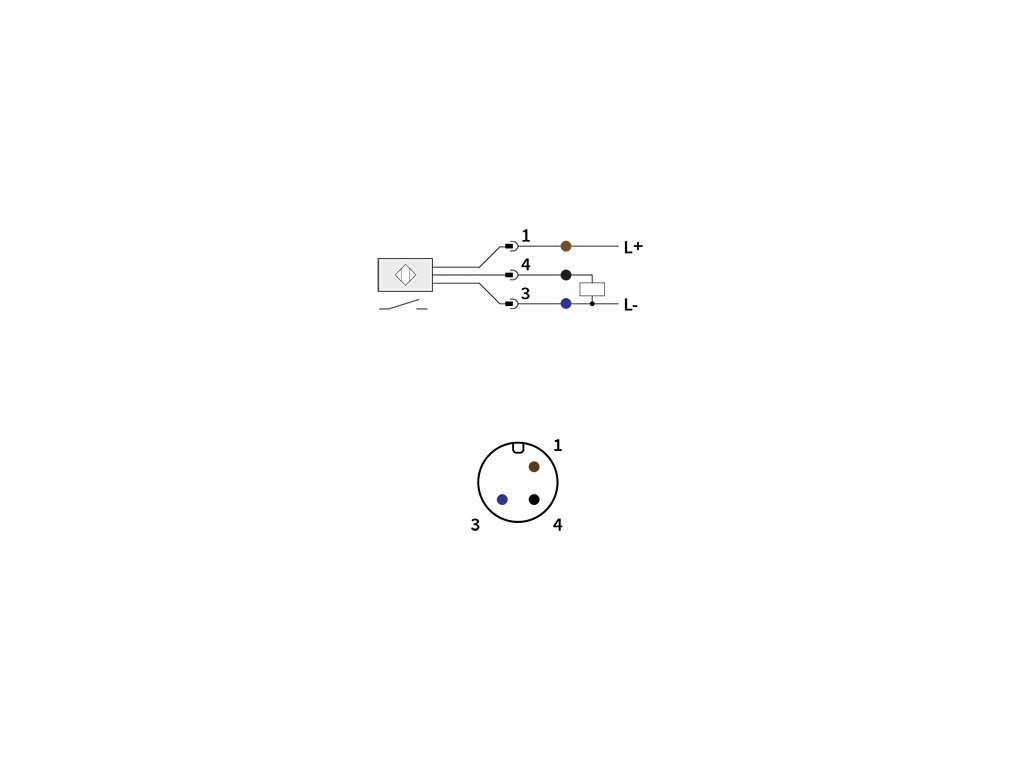

    gold-plated M12 contacts with 3 pins


    70 mm

    accuracy

    St37 = 1
    Ms approximately 0.9
    Al approx. 0.7
    Cu approximately 0,6
    ... 20% of the actual switching distance Sr

    environmental conditions

    0°C
    100°C
    Degree of protection IP67
    IP 68
    IP 69k
    Compressive 100 bar

    Further information

    x LED
    yellow visible all around
    fixing nuts
    DIN EN 55011: class B
    DIN EN 61000-4-2 ESD
    EN 61000-4-3 HF blasted
    DIN EN 61000-4-4 rupture
    EN 61000-4-6 HF wired
    CE
    cULus

    sketches

    Additional parameters

    Category: Indukční snímače
    Warranty: 2 years
    Weight: 0.1 kg
