    Home / Produkty / Sudová čerpadla JESSBERGER / Barrel pump JP-AIR NIRO with air motor length 1000 mm Ex

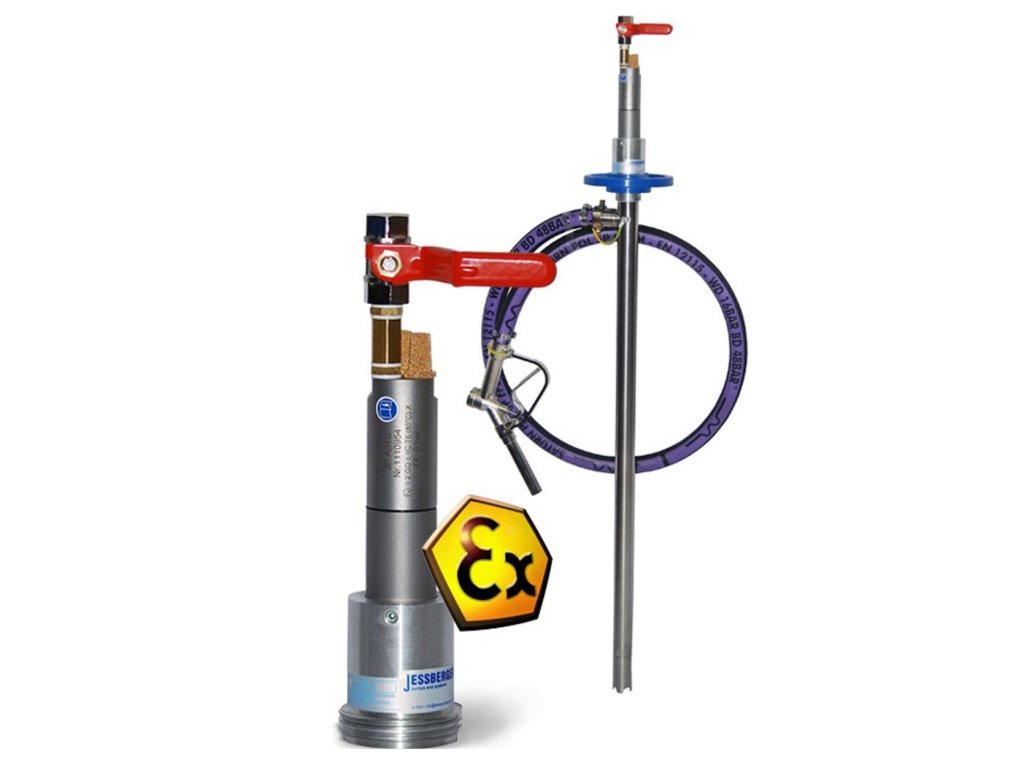

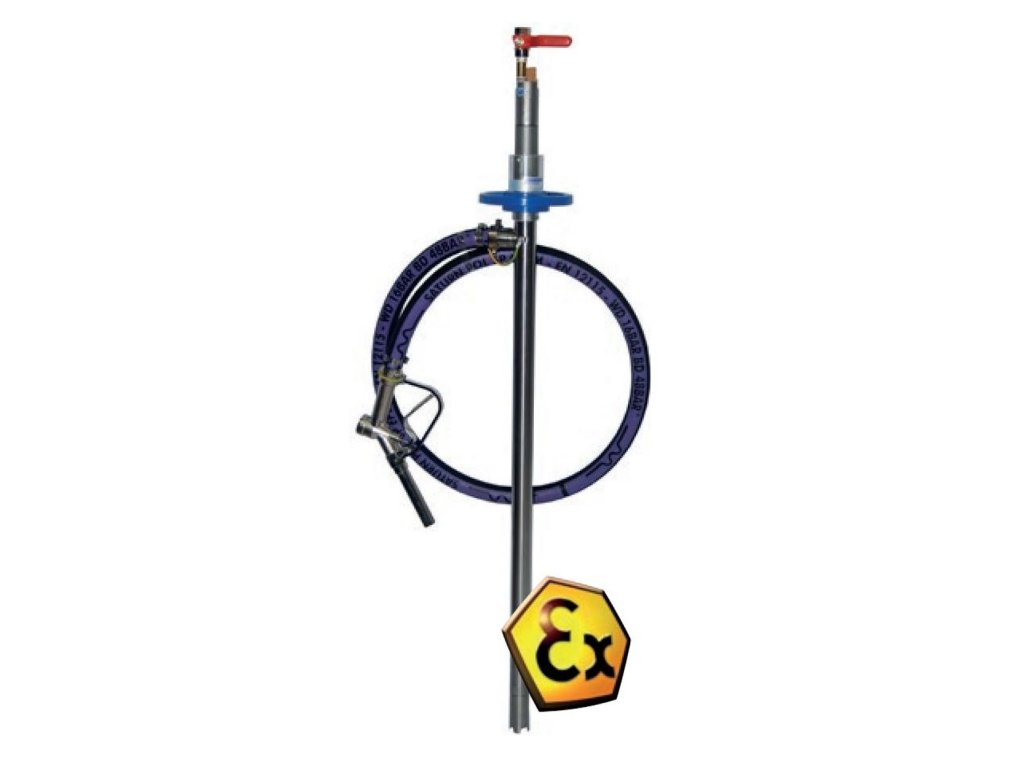

    Barrel pump JP-AIR NIRO with air motor length 1000 mm Ex

    Code: 3032 4110
    Sudové cerpadlo jessberger vcetne hadice pistole vzduchovy motor JP AIR3 Create Flow
    2 424 € / pcs 2 933 € incl. VAT 2 424 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    02/03/2026

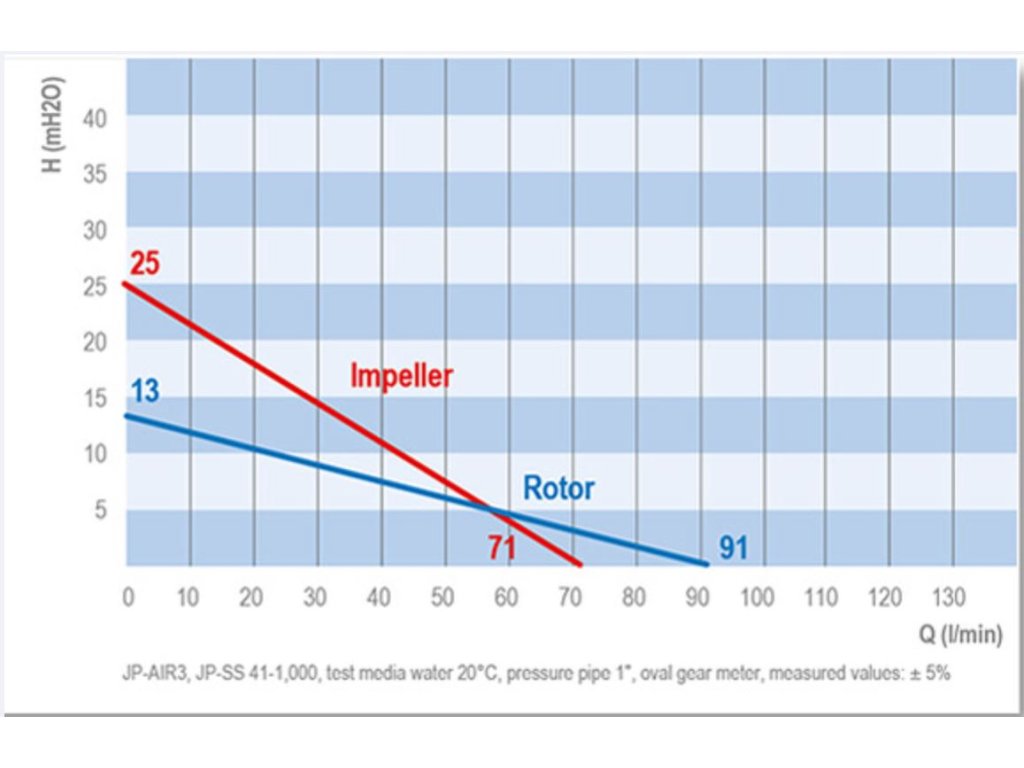

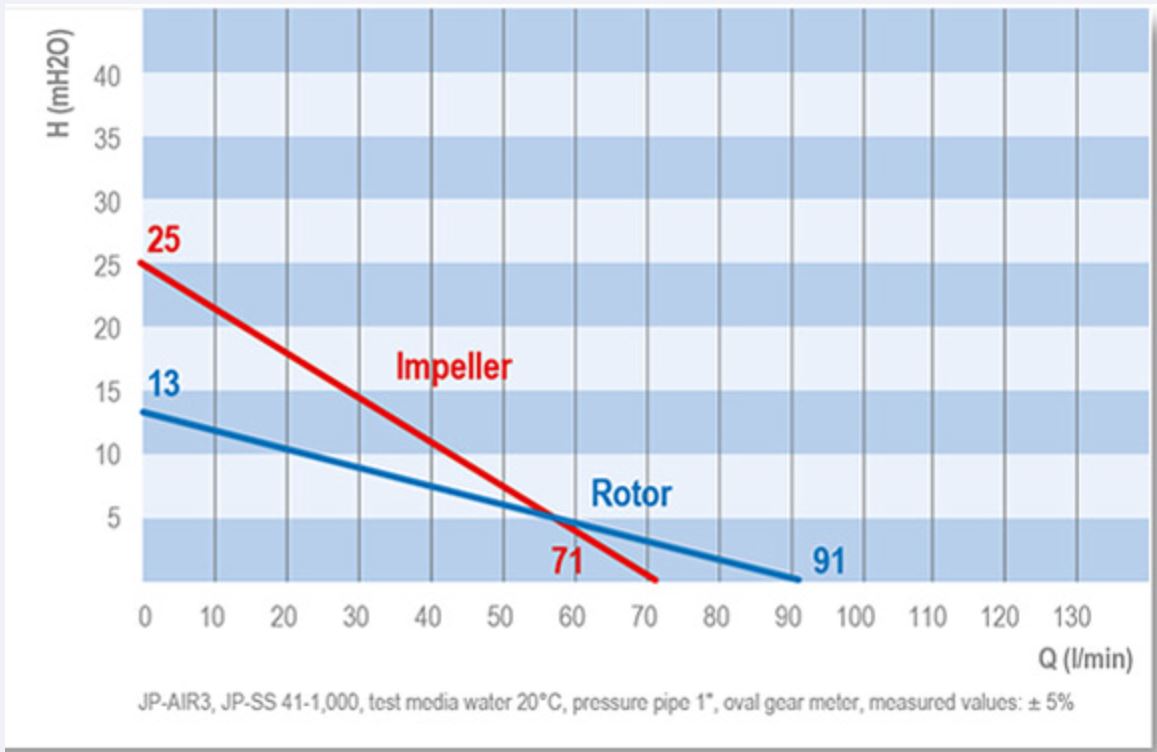

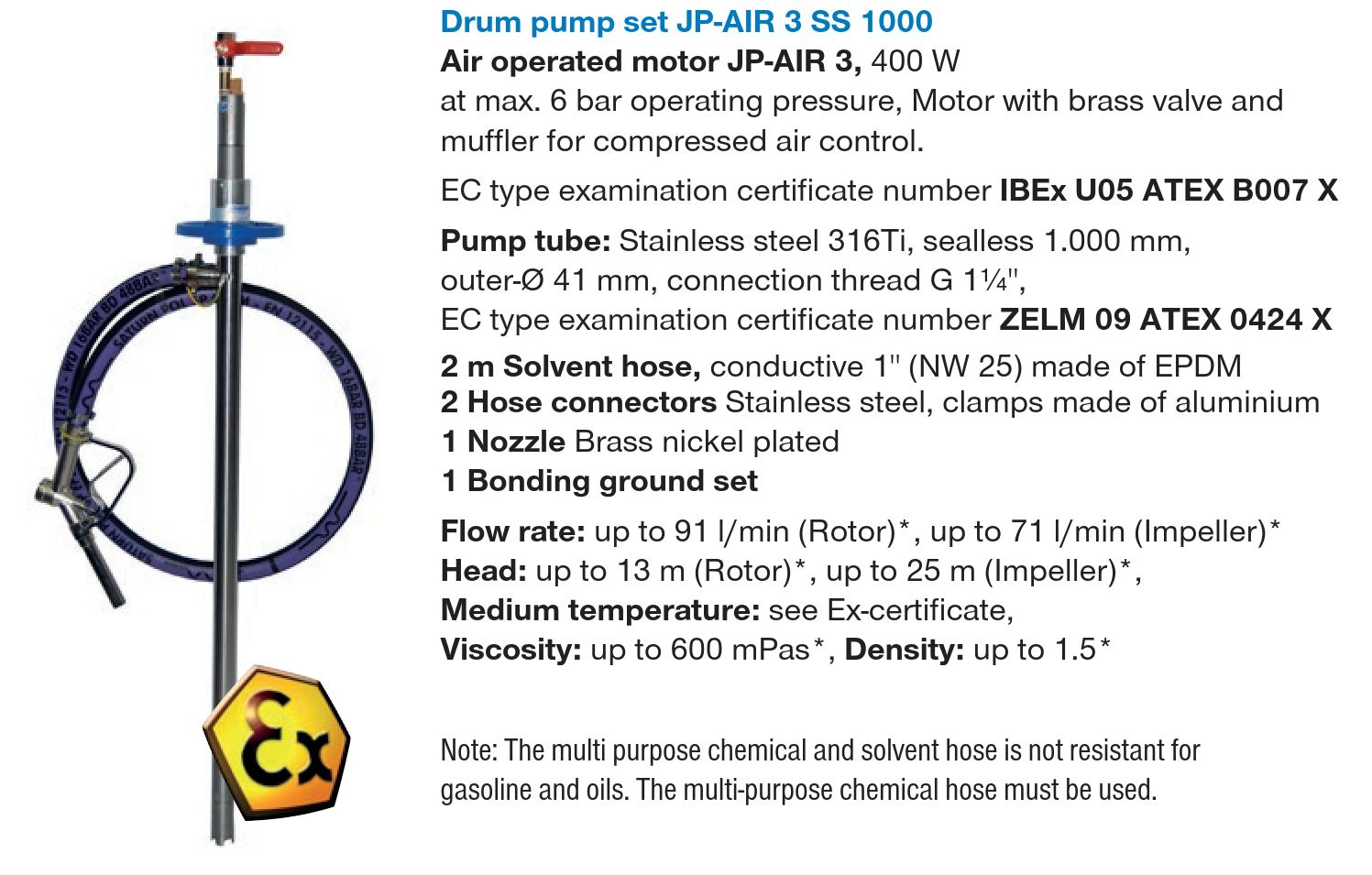

    Complete barrel pump assembly for pumping flammable and explosive substances into explosive atmospheres (Ex-zone 1). Max. output is 91 l/min (water) and max. pressure is up to 2,5bar with impeller.

    Pneumatic motor JP-AIR3, 400W at maximum air pressure 6 bar, motor equipped with silencer and ball valve for air regulation. Approval ZELM 09 ATEX 0424 X.

    Pipe NIRO 1000, stainless steel, capless, length 1000 mm, pipe outer diameter 41 mm, connection with 5/4" male thread, hose connection 1". Including PTB 03 ATEX 4004 X certificate.

    The set includes 2 m of chemical hose 1" - DN25 for chemicals and diluents, 1x nickel-plated brass dispensing gun 1", 1x set of cables for grounding the pump, 2x stainless steel hose clamps.

    Max. medium viscosity 600 mPa.s

    Detailed information

    Related products

    patní koš pro kyseliny sudové čerpadlo
    Snap-on filter on the tube barrel pump
    Dodací termín 3 až 4 pracovní týdny
    49 € incl. VAT
    40 €

    Fitting filter on the barrel pump tube. Material polypropylene. The filter prevents dirt from entering the barrel pump with 1.5x12 mm holes.

    Code: 9011
    Stáčecí pistole PFDF pro kyseliny Jessberger sudové čerpadlo Create Flow
    Spray gun made of PVDF 1"
    Dodací termín 3 až 4 pracovní týdny
    337 € incl. VAT
    278 €

    Bottling guns made of PVDF for the chemical, food and pharmaceutical industry. Body and internal parts made of PVDF. Max. viscosity 900 mPas, flow 65 l/min, pressure 3 bar,...

    Code: 9109
    Hadicová objímka SS
    Hadicová objímka z ušlechtilé oceli
    Dodací termín 3 až 4 pracovní týdny
    13 € incl. VAT
    11 €

    Hadicová objímka z ušlechtilé oceli k upevnění hadice na hadicové hrdlo o velikosti 3/4" nebo 1/2" nebo 1".

    Code: 900400
    Adapter modrý
    Sudový šroub PP D41 mm
    Přesný dodací termín na poptání
    28 € incl. VAT
    23 €

    Sudový šroub pro trubice PP s průměrem 41 mm k jistějšímu upevnění sudového čerpadla do otvoru v sudu 2"

    Code: 909002_41
    Adapter modrý
    Sudový šroub PP D32 mm
    Přesný dodací termín na poptání
    28 € incl. VAT
    23 €

    Sudový šroub pro trubice PP  s průměrem 32 mm k jistějšímu upevnění sudového čerpadla do otvoru v sudu 2"

    Code: 909001
    Držák na zed 2
    Držák pro sudové čerpadlo - uchycení na zeď
    Dodací termín 3 až 4 pracovní týdny
    37 € incl. VAT
    31 €

    Držák pro uchycení čerpadla na zeď. Materiál ocel oceli.

    Code: 900600
    Staceci pistole pro sudove cerpadlo Create Flow (14)
    Spray gun PP 1"
    Skladem (2 pcs)
    173 € incl. VAT
    143 €

    Polypropylene barrel pump dispensing gun for the dispensing of acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP),...

    Code: 901701
    Tryska Staceci pistole 1157 pro sudove cerpadlo Create Flow
    Spare nozzle of the PP dispensing gun
    Dodací termín 3 až 4 pracovní týdny
    20 € incl. VAT
    16 €

    Replacement nozzle for 3/4" and 1" polypropylene nozzle.

    Code: 1157
    Stáčecí pistole PFDF pro kyseliny Jessberger sudové čerpadlo Create Flow
    Spray gun made of PVDF 3/4"
    Dodací termín 3 až 4 pracovní týdny
    337 € incl. VAT
    278 €

    Stacking gun made of mat. PVDF for bottling of concentrated acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP), spring...

    Code: 9108
    Adapter nerez
    Sudový šroub NIRO D41 mm
    Přesný dodací termín na poptání
    138 € incl. VAT
    114 €

    Sudový šroub pro trubice z ušlechtilé oceli s průměrem 41 mm k jistějšímu upevnění sudového čerpadla do otvoru v sudu 2"

    Code: 909004_41
    Příruba pro IBC kontejner Jessberger Create Flow
    Screw cap for IBC container DN 225 for settling the drum pump
    Přesný dodací termín na poptání (1 pcs)
    117 € incl. VAT
    97 €

    Screw-on lid for IBC Container (IBC DN 225 ) IG 2″, optionally with cylindrical adapter PP Ø 41 mm. Colour black

    Code: DN2509071
    Staceci pistole pro sudove cerpadlo Create Flow (15)
    Spray gun PP 3/4"
    Skladem (1 pcs)
    173 € incl. VAT
    143 €

    Polypropylene bottling gun for bottling acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP), spring HC, max. viscosity...

    Code: 9102
    Vydejni pistole hadice sudove cerpadlo Jessberger Create Flow (2)
    Výprodej
    Stáčecí pistole PP 1" + hadice 1" délka 1,7 m, PVC s koncovkou
    Skladem (2 pcs)
    163 € incl. VAT
    134 €

    Polypropylene barrel pump dispensing gun for the dispensing of acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP),...

    Code: 909006
    Svěrací příruba
    Svěrací příruba z PP
    Přesný dodací termín na poptání
    114 € incl. VAT
    94 €

    Svěrací příruba z PP pro IBC kontejnery o průměru 137 mm - pro upevnění čerpacích trubic o průměru 40/41 mm.

    Code: 907000
    nahradni staceci triska Staceci pistole pro sudove cerpadlo Create Flow
    Spare nozzle of the PP dispensing gun (smaller)
    Dodací termín 3 až 4 pracovní týdny
    20 € incl. VAT
    16 €

    Replacement nozzle for 3/4" and 1" polypropylene nozzle.

    Code: 1158
    sací filtr pro sudove cerpadlo Create Flow
    Snap-on filter for barrel pump mat. Stainless steel
    Dodací termín 3 až 4 pracovní týdny
    145 € incl. VAT
    120 €

    Mounting filter for barrel pump made of stainless steel ( DIN 1.4571 ) to prevent dirt from entering the pump with 1.5 x 12mm holes.

    Code: 909004
    Show all related products Previous product Next product

    Product detailed description



     Sudove_cerpadlo_jessberger_vzduchovy_motor_JP_AIR3_Create_Flow



     Sudove_cerpadlo_jessberger_vzduchovy_JP_AIR1_Create_Flow

    Sudove_cerpadlo_jessberger_vzduchovy_motor_JP_AIR1_Create_Flow







    Additional parameters

    Category: Barrel pumps JESSBERGER
    Warranty: 0
    Weight: 6 kg
    Vzduchový motor: JP-AIR 3
    Výkon: 400WW třídy ZELM 09 ATEX 0424 X.
    Certifiká: ATEX 0424 X.//PTB 03 ATEX 4004 X
