    Home / Produkty / Vývěvy a vzduchovače / Příslušenství Vývěvy Dmychadla / Tubular diffuser 500-550 mm, EPDM, 3/4" M

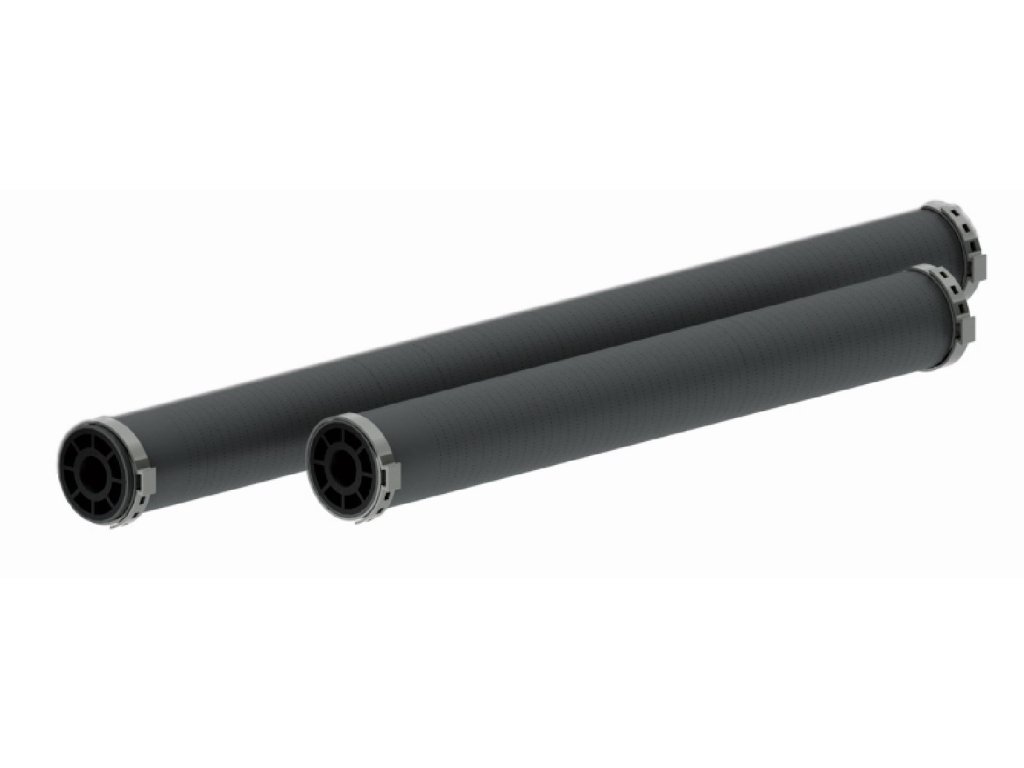

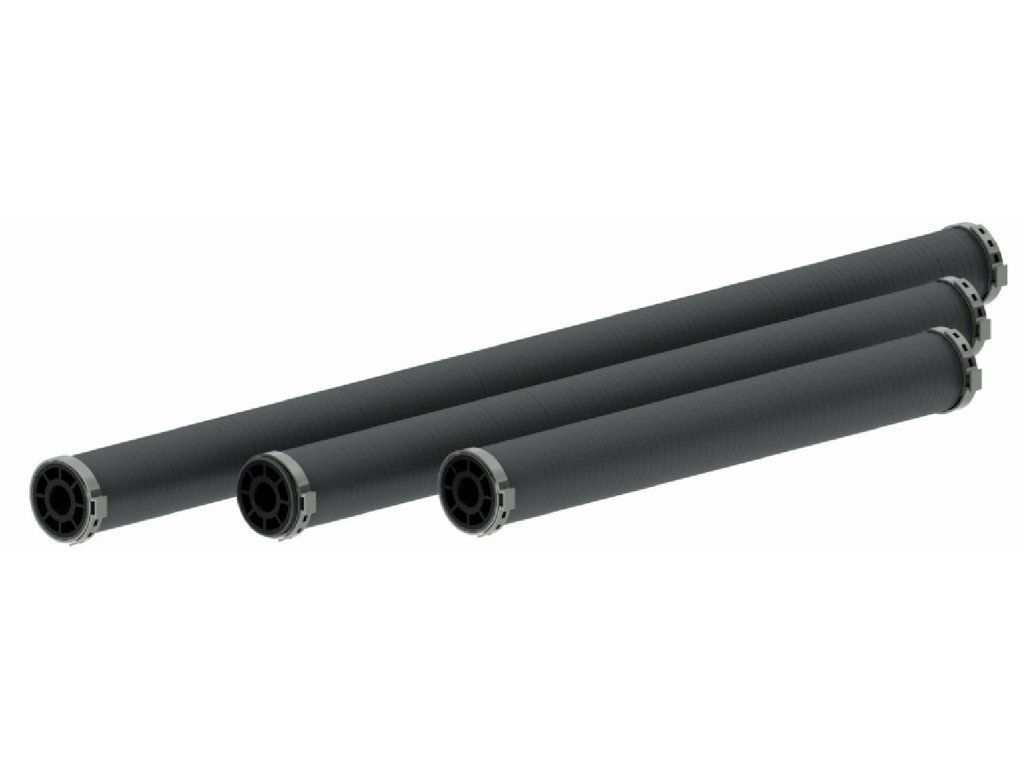

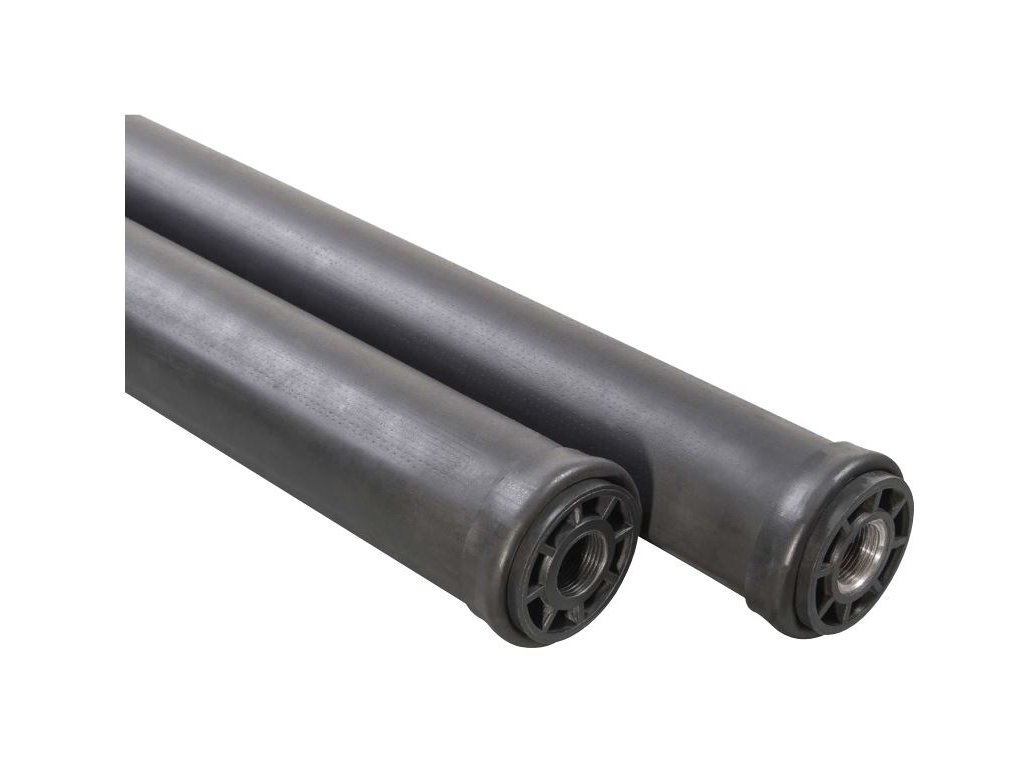

    Tubular diffuser 500-550 mm, EPDM, 3/4" M

    Code: BLTD05EN
    Trubkový dufuzér SEKO Create Flow
    118 € / pcs 143 € incl. VAT Measure price: 118 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    10/09/2026

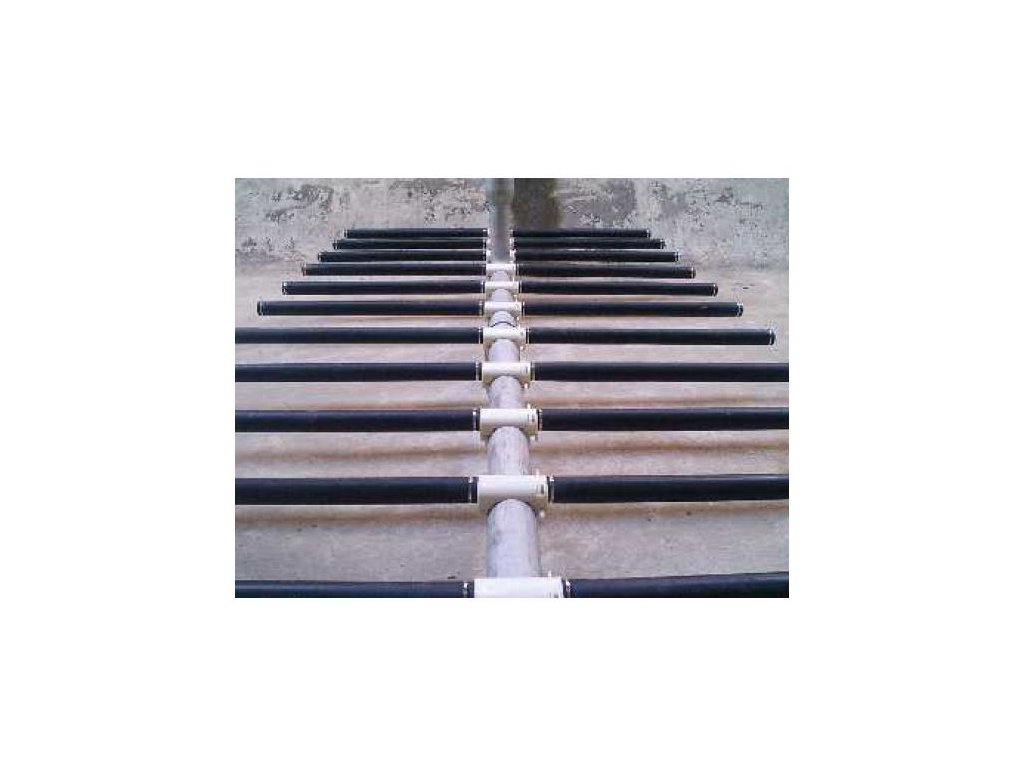

    Fine tube diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of bubbles into a liquid (water). Material design EPDM. Diffusers are mounted on the discharge side. Air is driven under pressure through the micropipes in the diffuser. When the air supply is interrupted, the rubber material with micropipes closes and prevents liquid from entering the diffuser

    Detailed information

    Product detailed description

    The activated sludge process is the main stage of modern technology for wastewater treatment. The key is to ensure sufficient oxygen in the activated sludge process and to keep the slurry and solids in suspension.

    difuzor trubkový Create Flow

    difuzor trubkový SEKO Create Flow

    Trubkový dufuzér Create Flow

    Additional parameters

    Category: Příslušenství vývěvy Dmychadla
    Warranty: 6 měsíců
    Weight: 1.4 kg
    Materiál: EPDM
    Průměr: 63-500 mm
    ? Připojení vnější závit: 3/4" f BSPP
    Umístění : Výtlak
    ATEX certifikát: NE
    Effective-Total Lenght: 500-550 mm
    Efektivní oblast: 0,10 m2
    Množství : 2 až 8 m3
