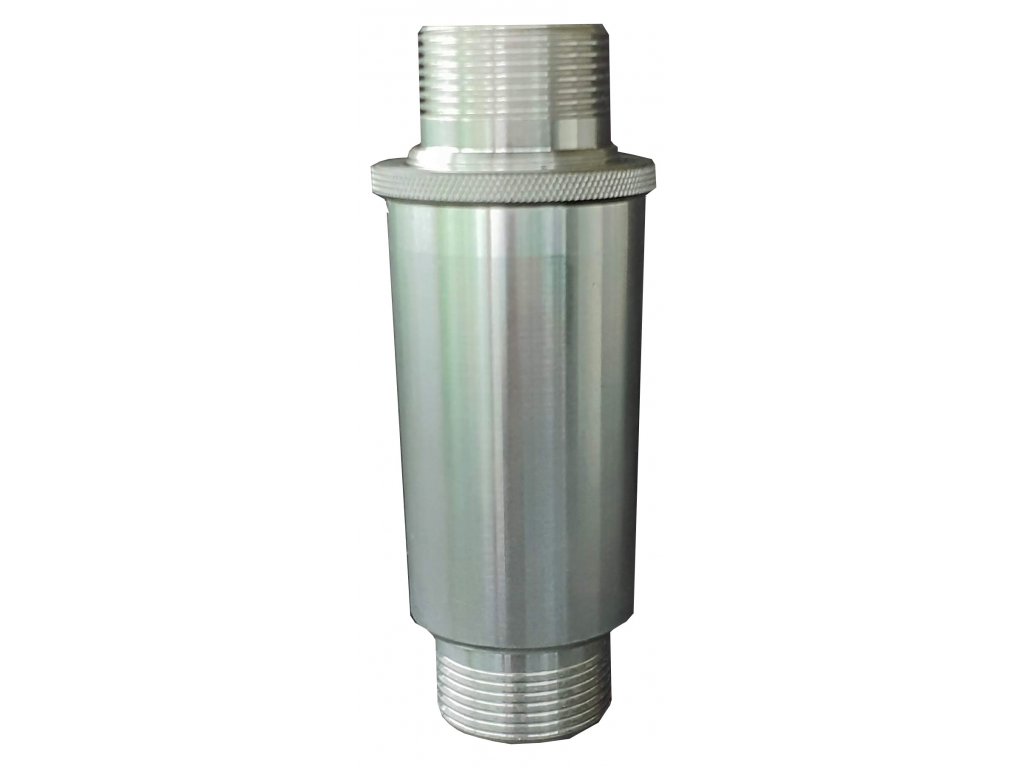

    Safety valve 1"1/4 pressure up to 300 mbar pozice 2

    Code: VL1.2AL
    Safety valve 1"1/4 pressure up to 300 mbar pozice 2
    €176 / pcs €213 incl. VAT €176 / 1 pcs
    Skladem (1 pcs)
    Delivery to:
    30/04/2024

    Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to a fixed set point. The valve is installed on the inlet or outlet line. It is possible to set the desired pressure within the valve range.

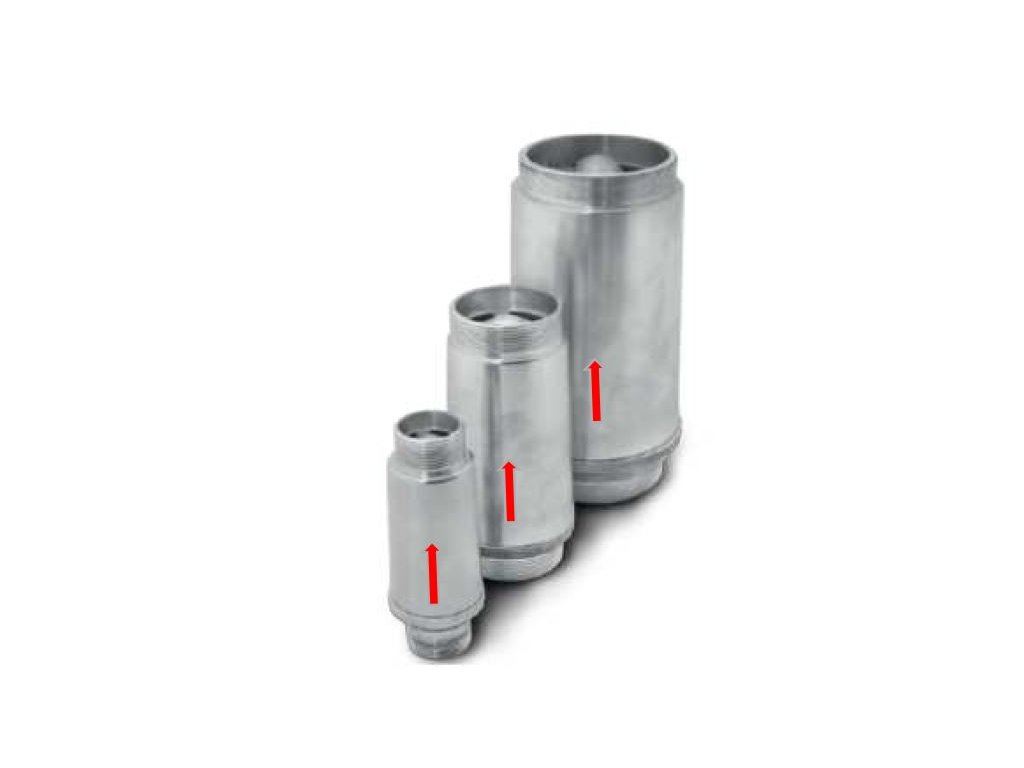

    BLSV valves are used to limit the pressure or vacuum on blower and side channel pumps. When pressure or vacuum is reached, the valve opens and prevents the blower design limit from being exceeded when the blower internals are connected to the atmosphere. Depending on the design of the equipment, the discharge connection can be opened directly to the atmosphere or directed into the discharge pipe.Pressure acting on the spring-loaded cap. The valve starts to open when the air pressure overcomes the spring force. When the pressure drops below the set pressure, the valve closes.

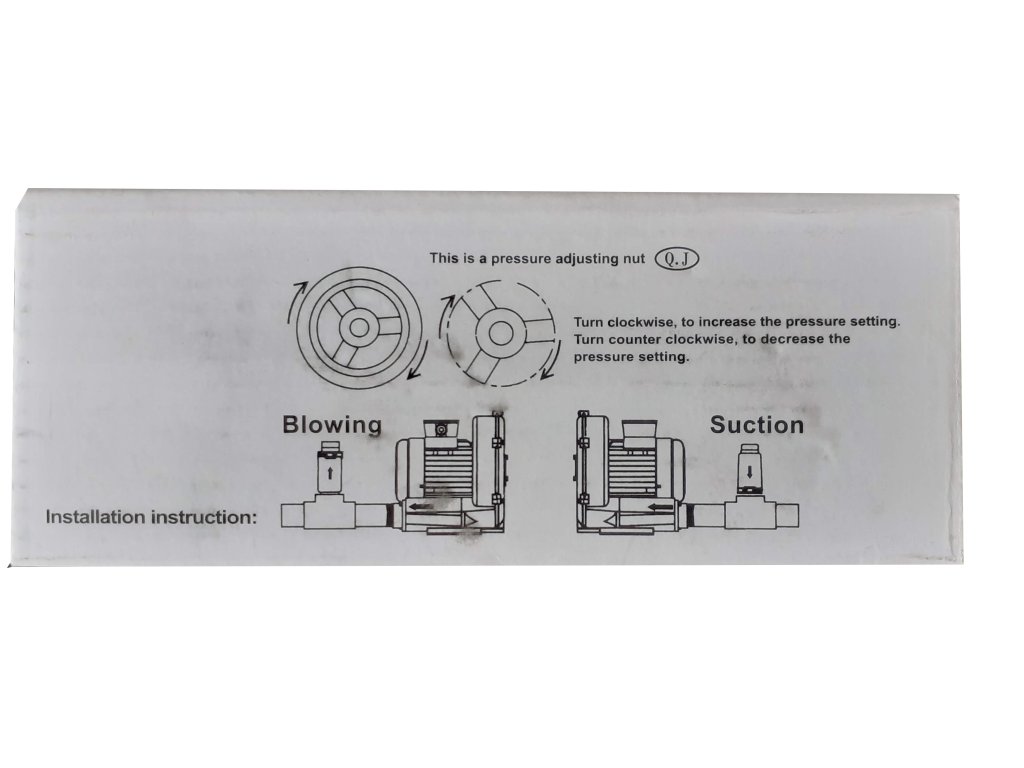

    VALVE CALIBRATION:
    Using an inline gauge/vacuum gauge:
    1 - Turn on the fan.
    2 - Gradually close the inlet until the maximum operating point of the blower (mbar), at which point the valve must complete opening and maintain a constant pressure.
    3 - Unscrew the circular nut and adjust the valve. Once you have reached the correct position, fasten the ring nut.


    Alternatively
    Using a clamp meter:
    1 - Turn on the fan.
    2 - Gradually close the inlet until the maximum operating point of the blower (Amp), at which point the valve must complete opening and maintain a constant pressure.
    3 - Unscrew the circular nut and adjust the valve. Once you have reached the correct position, fasten the ring nut.

    Detailed information

    Related products

    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 60 m3/hod, max. 100 mbar, -100 mbar 1 channel, 0,25 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    €420 incl. VAT
    €347

    Single-stage pump, which can also be used as an air blower max. 60 m3/hr, max. 100 mbar, -100 mbar 1 channel, 0,25 kW, 230V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC101M0.2
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 70 m3/hod, max. 120 mbar, -110 mbar 1 channel, 0,25 kW, 400V 3-fáze
    Dodací termín 1 až 2 pracovní týdny
    €348 incl. VAT
    €287

    Single-stage pump, which can also be used as an air blower max. 70 m3/hr, max. 120 mbar, -110 mbar 1 channel, 0,25 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC101T0.2
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 80 m3/hod, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    €540 incl. VAT
    €447

    Single-stage pump, which can also be used as an air blower max. 80 m3/hr, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 230 V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC201M0.4
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 80 m3/hod, max. 130 mbar, -120 mbar 1 channel, 0,4 kW, 400V 3-fáze
    Dodací termín 1 až 2 pracovní týdny
    €425 incl. VAT
    €351

    Single-stage pump, which can also be used as an air blower max. 80 m3/hr, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 400 V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC201T0.4
    Vývěva 531 Create Flow
    Vacuum pump - air conditioner max. 270 m3/hod, max. 120 mbar, -140 mbar 1 channel, 1,5 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    €900 incl. VAT
    €744

    Single-stage pump, which can also be used as an air blower max. 270 m3/hr, max. 120 mbar, -140 mbar 1 channel, 1,5 kW, 230V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC531M1.5
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 145 m3/hod, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-fáze
    Dodací termín 1 až 2 pracovní týdny
    €647 incl. VAT
    €535

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC401T0.85
    Vývěva ESC341T0.5 Create Flow
    Vývěva - vzduchovač max. 62 m3/hod, max. 250 mbar, -250 mbar 1 kanál, 0,55 kW, 400V 3-fáze
    Dodací termín 2 až 3 pracovní týdny
    €820 incl. VAT
    €678

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC241M0.5
    Vývěva ESC341T0.5 Create Flow
    Vývěva - vzduchovač max. 62 m3/hod, max. 250 mbar, -250 mbar 1 kanál, 0,55 kW, 400V 3-fáze
    Dodací termín 2 až 3 pracovní týdny
    €957 incl. VAT
    €791

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC341T0.81
    Show all related products Previous product Next product

    Product detailed description

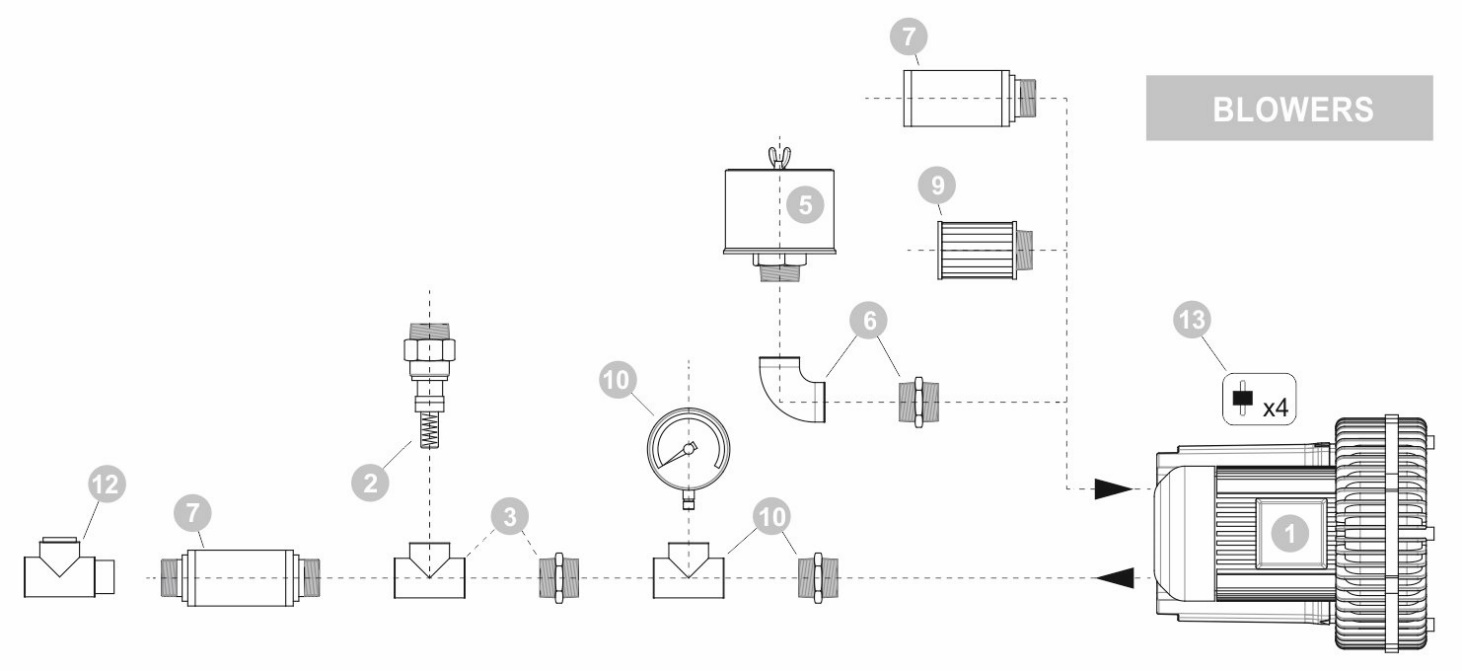

    Accessories for Blower (BLOWERS)

    Dmychadlo BLOWERS SEKO Create FLow

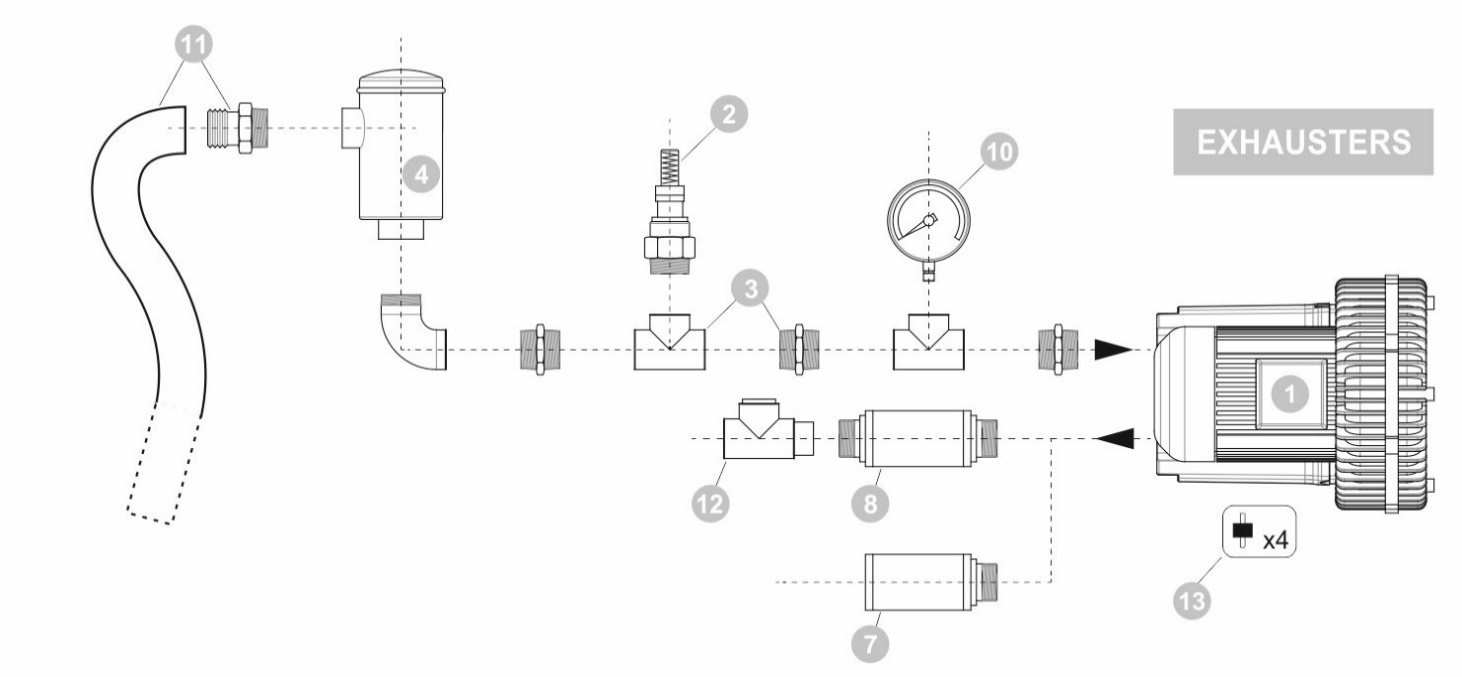

    Vacuum accessories (EXHAUSTERS)Podtlakové dmychadlo SEKO Create FLow

    Pojistný ventil BLSV SEKO Create Flow

    Additional parameters

    Category: Příslušenství vývěvy Dmychadla
    Warranty: 0
    Weight: 2 kg
    Materiál: Hliník
    Tlak: 0 až 300 mbar
    ? Připojení vnější závit: 1"1/4 - 1"1/2 m
    Pozice: 2
