    Home / Produkty / Vývěvy a vzduchovače / Příslušenství Vývěvy Dmychadla / Membrane diffuser 12.5" Silicone, 3/4" M

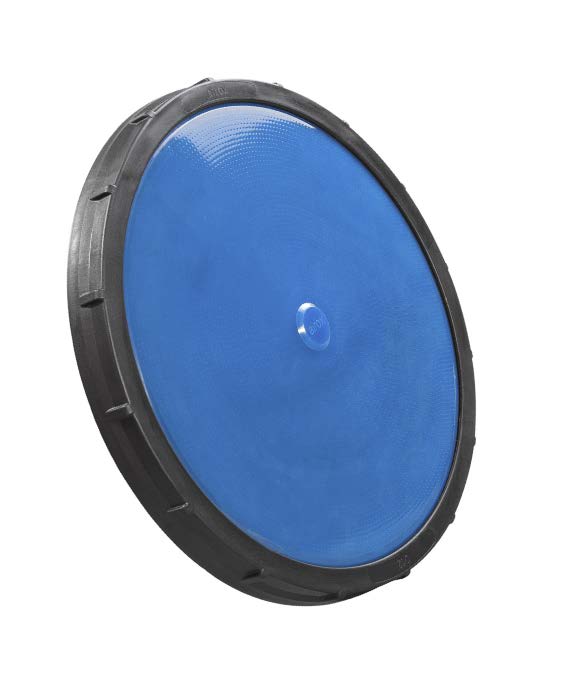

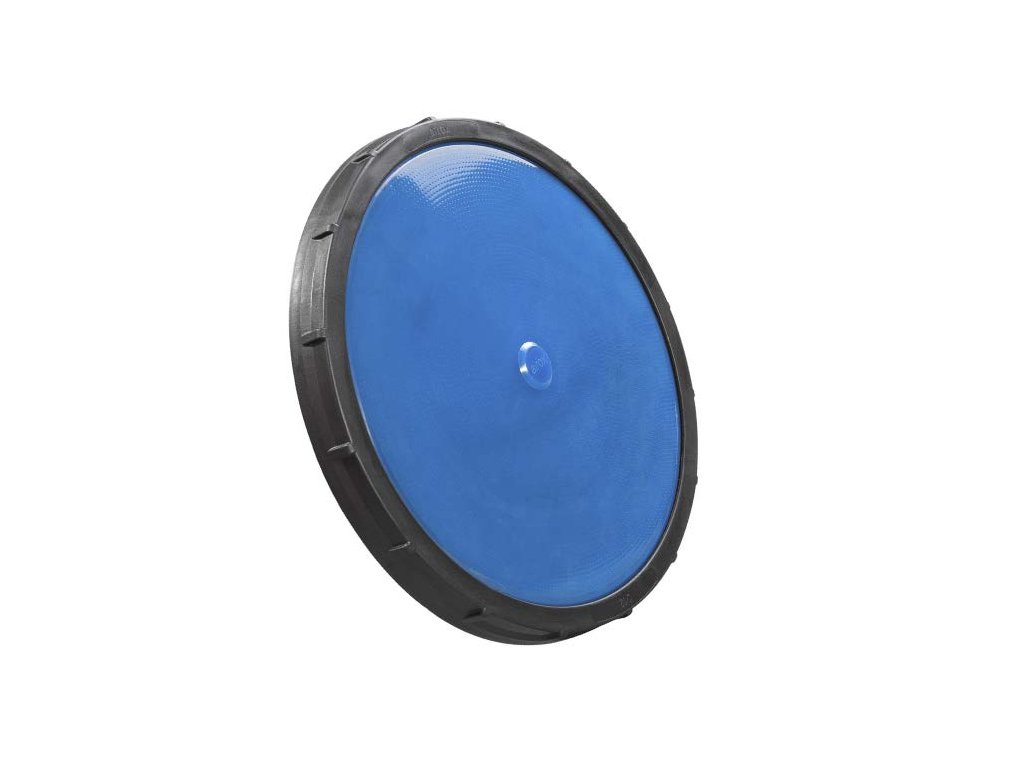

    Membrane diffuser 12.5" Silicone, 3/4" M

    Code: BLDD12SN
    Difuzor SEKO Create Flow
    94 € / pcs 114 € incl. VAT Measure price: 94 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    21/10/2026

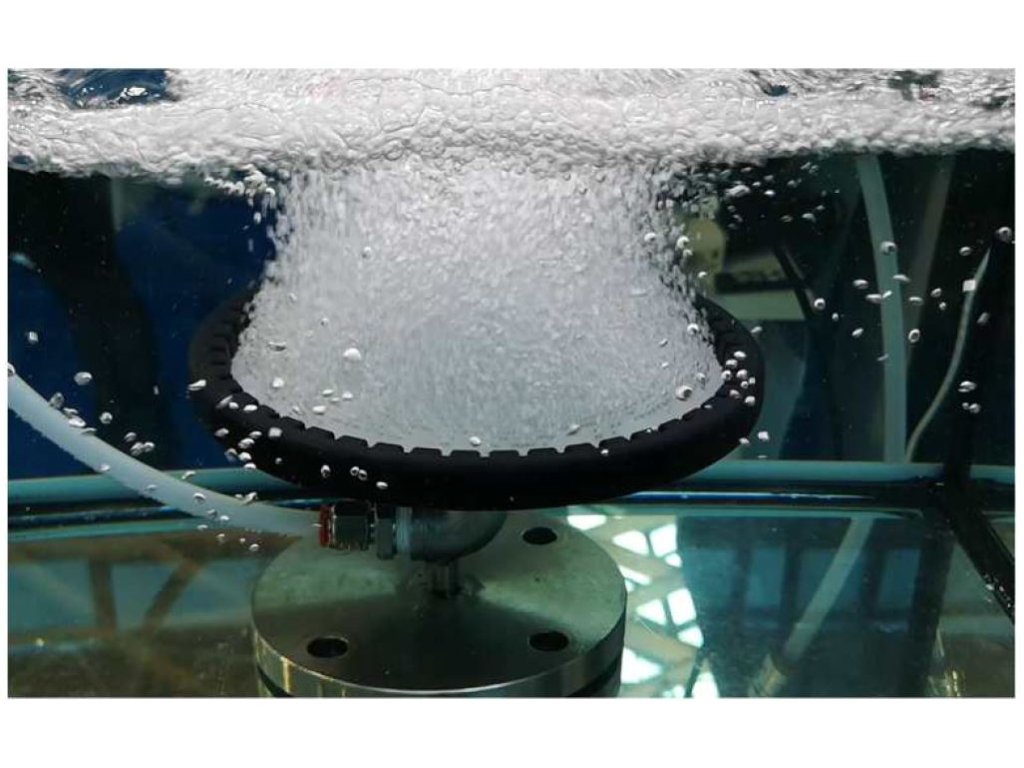

    Fine membrane diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of bubbles into a liquid (water). The material of the membranes is Silicone. Diffusers are mounted on the discharge side. Air is driven under pressure through the micropipes in the diffuser. When the air supply is interrupted, the rubber material with micropipes closes and prevents liquid from entering the diffuser

    Detailed information

    Product detailed description

    The activated sludge process is the main stage of modern technology for wastewater treatment. The key is to ensure sufficient oxygen in the activated sludge process and to keep the slurry and solids in suspension.

    Membránový difuzor 12 SEKO Create FLow

    Difuzor Silikonová membrána SEKO Create Flow

    Additional parameters

    Category: Příslušenství vývěvy Dmychadla
    Warranty: 6 měsíců
    Weight: 0.93 kg
    Materiál: Polypropylen 70% a 30% skleněné vlákno
    Materiál membrány: Silikon
    Průměr: 12,5"
    ? Připojení vnější závit: 3/4" M BSPP
    Umístění : Výtlak
    ATEX certifikát: NE
    Effective-Total Lenght: 340 -370 mm
    Efektivní oblast: 0,07 m2
    Množství : 2 až 12 m3
