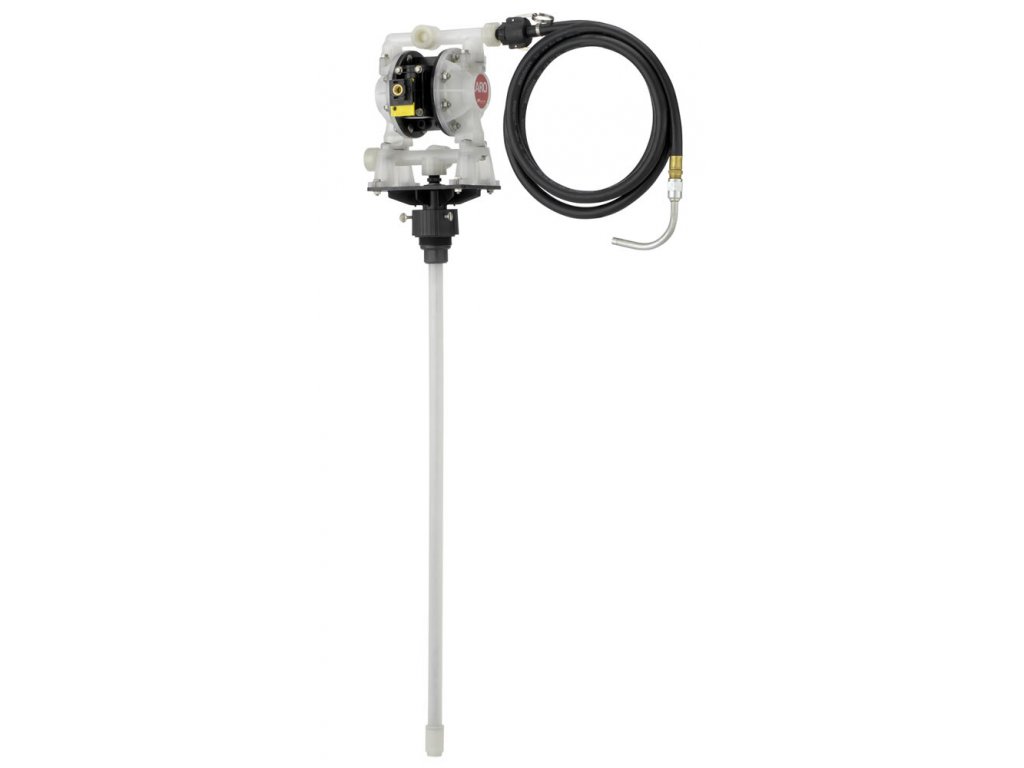

Barrels diaphragm pump ARO 1/2" Polypropylen/Hytrel, Output 54.5 l/min, pressure 8.3 bar
Code: DAB05-PPCC-B-JRelated products

Diaphragm pump ARO 1/4". Material Polypropylene, membranes and Santoprene beads. Output 40 l/min, displacement 8.3 bar. Pump is suitable for chemical solutions, acid alkalis,...

ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)

Santoprene wheel for pump ARO PD05P, pos. 22


Air service kit for pump ARO PD03/05/07

ARO, valve seat, PP, pos. 21


ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Santoprene diaphragm for pump ARO PD05P

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

Air silencer ARO, pos. 201

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings

Santoprene diaphragm for pump ARO PD05P


Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
Weight: | 5 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Polypropylen |
Materiál sedel čerpadla: | Polypropylen |
Materiál trubice: | Polypropylen |
Délka sací trubice: | 1023 mm |
Celková délka: | 1299 mm |
Patní ventil: | ANO |
Sudový adaptér: | ANO |
Základní deska: | ANO |
Výdejní hadice : | mat. EPDM |
? Materiál kuliček čerpadla: | Hyrel |
? Materiál membrán čerpadla: | Hyrel |
Max. výkon: | 54,5 l/min |
Max. výtlak: | 6,9 bar |
pH: | 2 až 14 |
? Samonasávací schopnost čerpadla: | -2,6 m |
Max. teplota média: | +65°C |
Max. velikost pevných částic: | max. 2,4 mm |
Připojení sání/výtlak: | Vnitřní závit 1/2" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | NE |
