Diaphragm pump ARO 1,5" Polypropylen/Teflon, Output 465 l/min, pressure 8.3 bar
Code: PD15P-FPS-PTTRelated products

Santoprene diaphragm for pump ARO PD10, pos. 7

Santoprene wheel for pump ARO PD05P, pos. 22

Hytrel diaphragm for pump ARO 6605 XXXXX

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Santoprene diaphragm for pump ARO PD05P

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)


ARO, air service kit, PD03/05/07

Santoprene diaphragm for pump ARO PD05P

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings


ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Air silencer ARO, pos. 201

ARO, valve seat, PP, pos. 21

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 year |
Weight: | 19 kg |
EAN: | 7430988128954 |
Řada : | ARO |
Materiál tělesa čerpadla: | Polypropylen |
Materiál sedel čerpadla: | Polypropylen |
Materiál kuliček čerpadla: | Teflon |
Materiál membrán čerpadla: | Teflon |

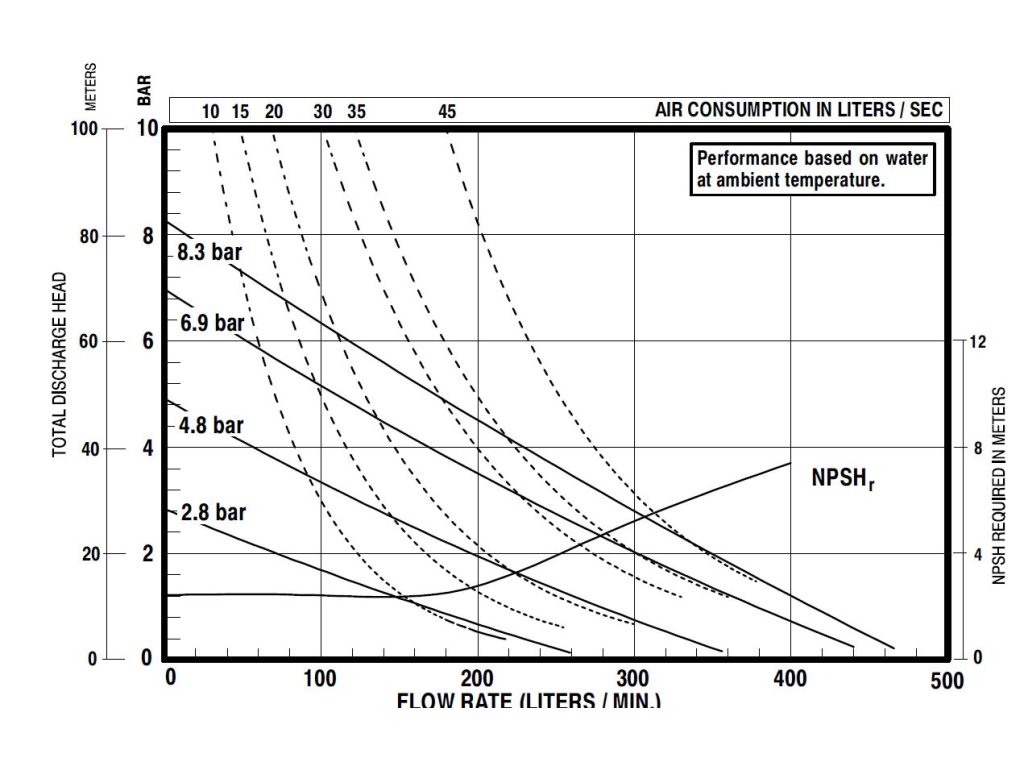

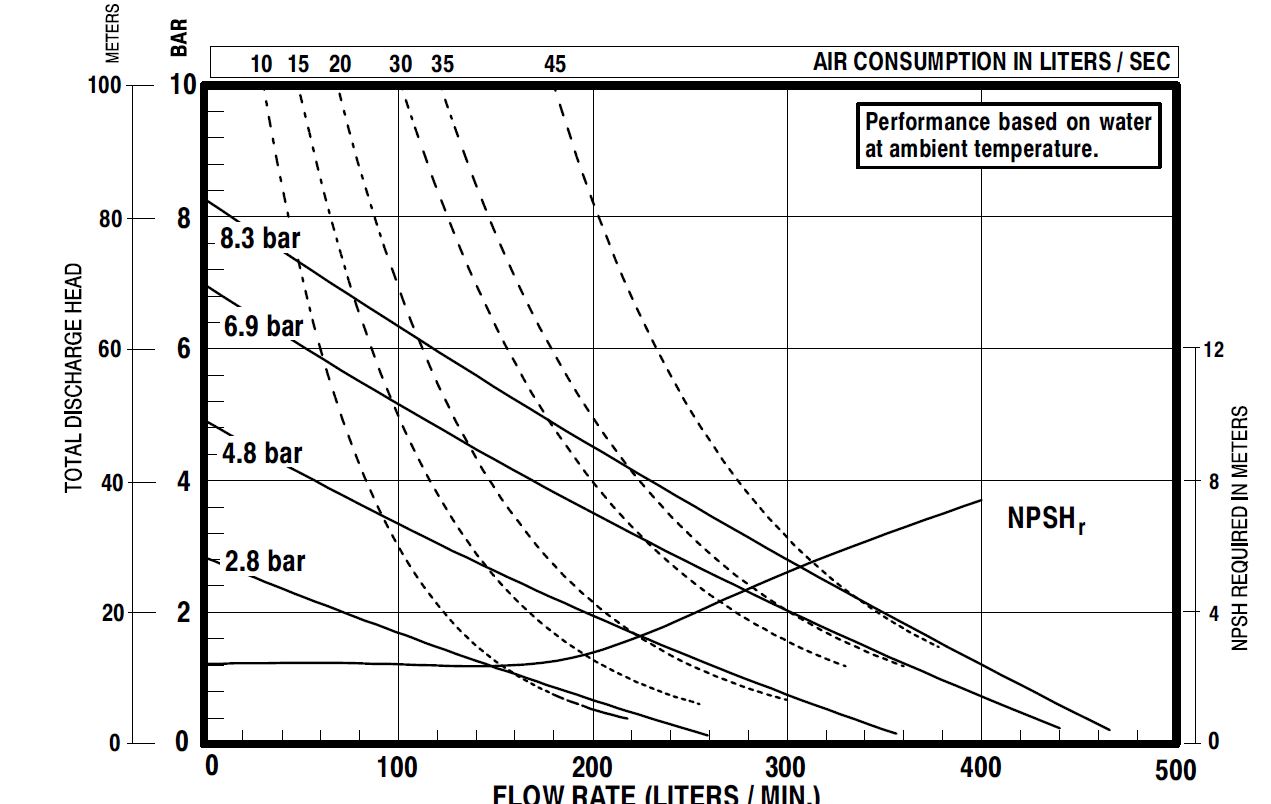

Max. výkon: | 465 l/min |
Max. výtlak: | 8,3 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | |
Max. velikost pevných částic: | max. 6.4 mm |
Připojení sání/výtlak: | Příruba DIN 1,5" |
Pohon: | Stlačený vzduch max. 8,3 bar |
Připojení vzduch: | Vnitřní závit 1/2" |
ATEX: | NE |

Membrane pump ARO in material Acetal/Teflon. The pump is suitable for pumping flammable liquids into hazardous areas.


Membrane pump ARO PD05-BPS-PAA-B with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 54 l/min, discharge pressure...


Diaphragm pump ARO 66605J-3EB with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 49,2 l/min at water, discharge...

Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Teflon, Output 178 l/min, displacement 8,3 bar

Membrane pump ARO in material Acetal/Teflon. The pump is suitable for pumping flammable liquids into hazardous areas.

Diaphragm pump ARO 66605J-3EB with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 49,2 l/min at water, discharge...

Diaphragm pump ARO 6665J-344 with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Teflon. Max. output 49,2 l/min at water, discharge...

Membrane pump ARO PD20A-BAP-GGG-B in material Hliník/Nitril, output 651 l/min, max 8.3 bar, connection internal thread 2".

Membrane pump ARO. Material Polypropylen, membrane and Teflon beads. The pump is suitable for chemical solutions, acid alkalis, electroplating plants,... Membránové čerpadlo je...

Membránové čerpadlo ARO 1" Polypropylén / SANTOPRENE, Výkon 178 l / min, výtlak 8,3 bar. Materiál Polypropylen, membrány a kuličky Santopren. Čerpadlo je vhodné pro chemické...

Membrane pump ARO in material Acetal/Teflon. The pump is suitable for pumping flammable liquids into hazardous areas.

Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Santoprene, Output 178 l/min, discharge 8,3 bar
-

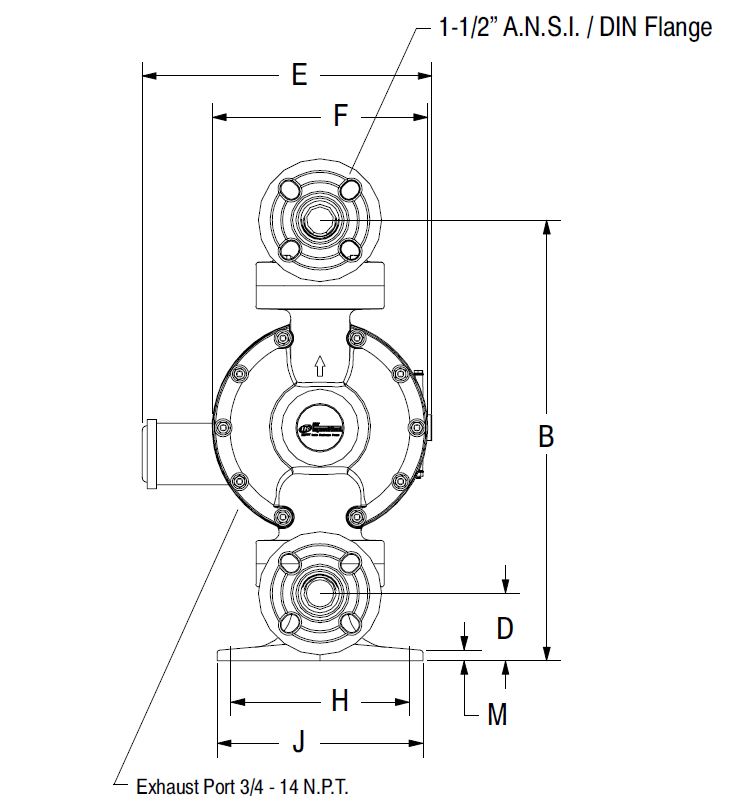

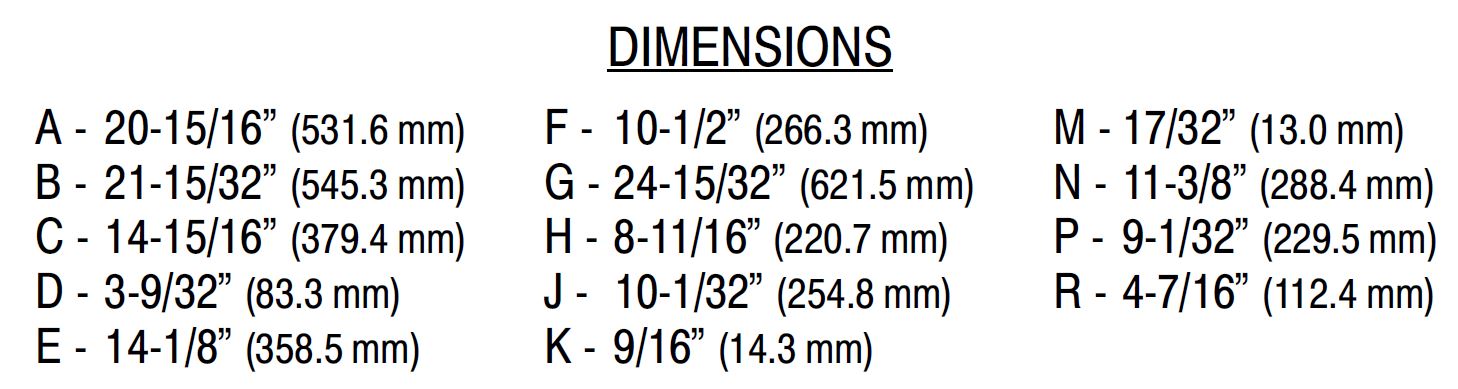

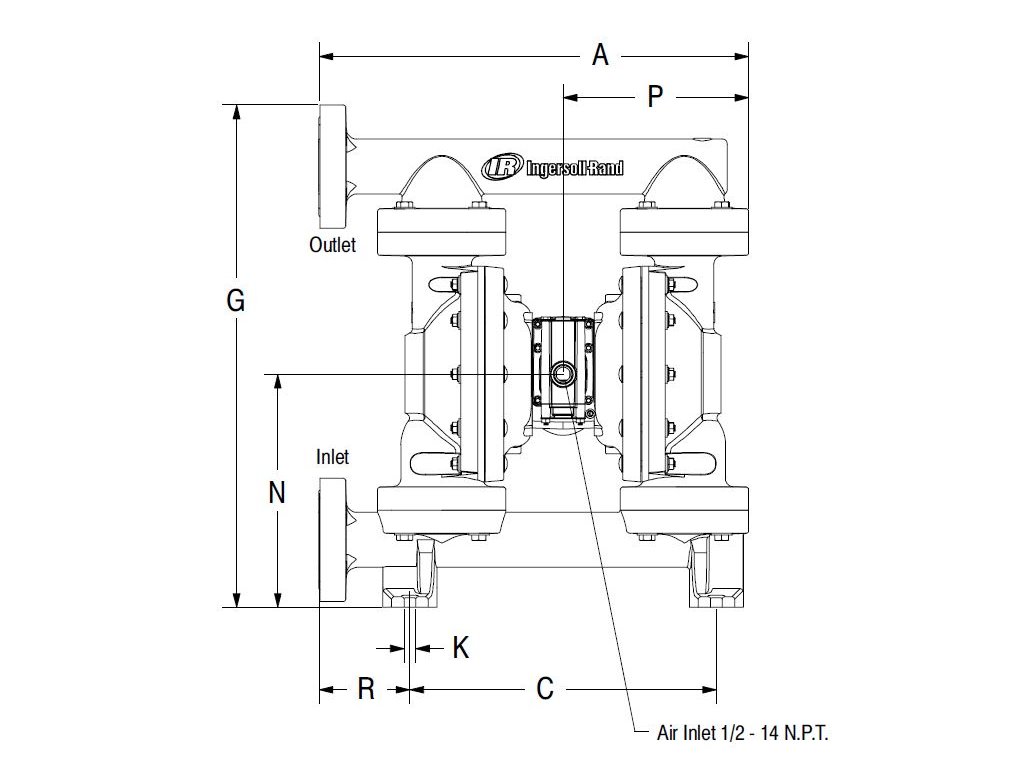

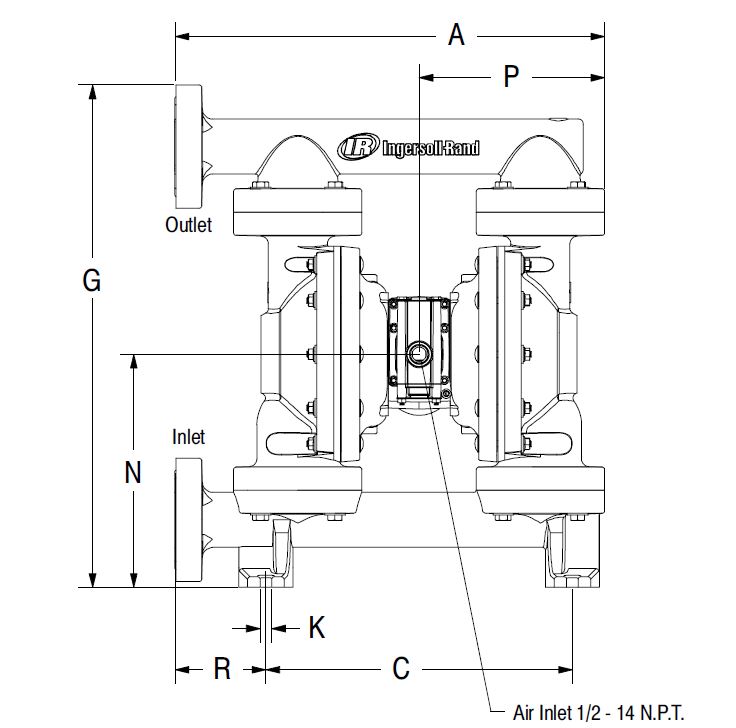

Rozměr (388.1 kB)
-

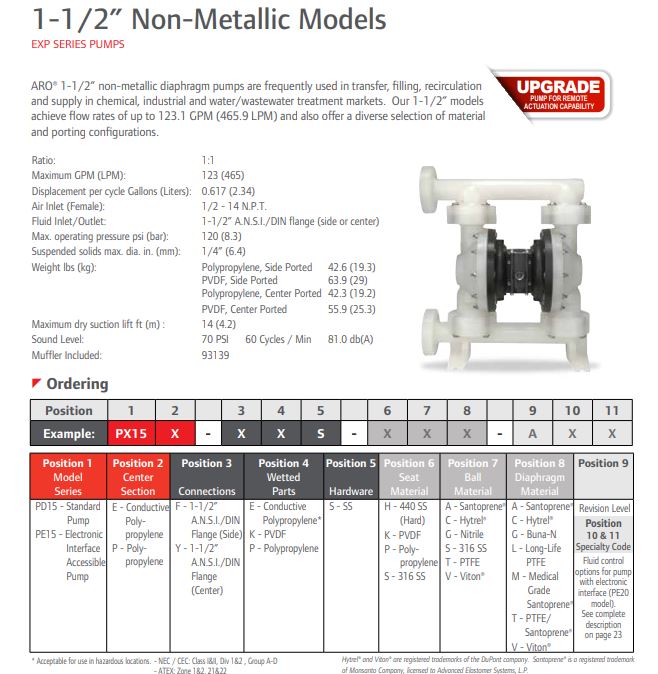

Datový list (267.2 kB)
-
