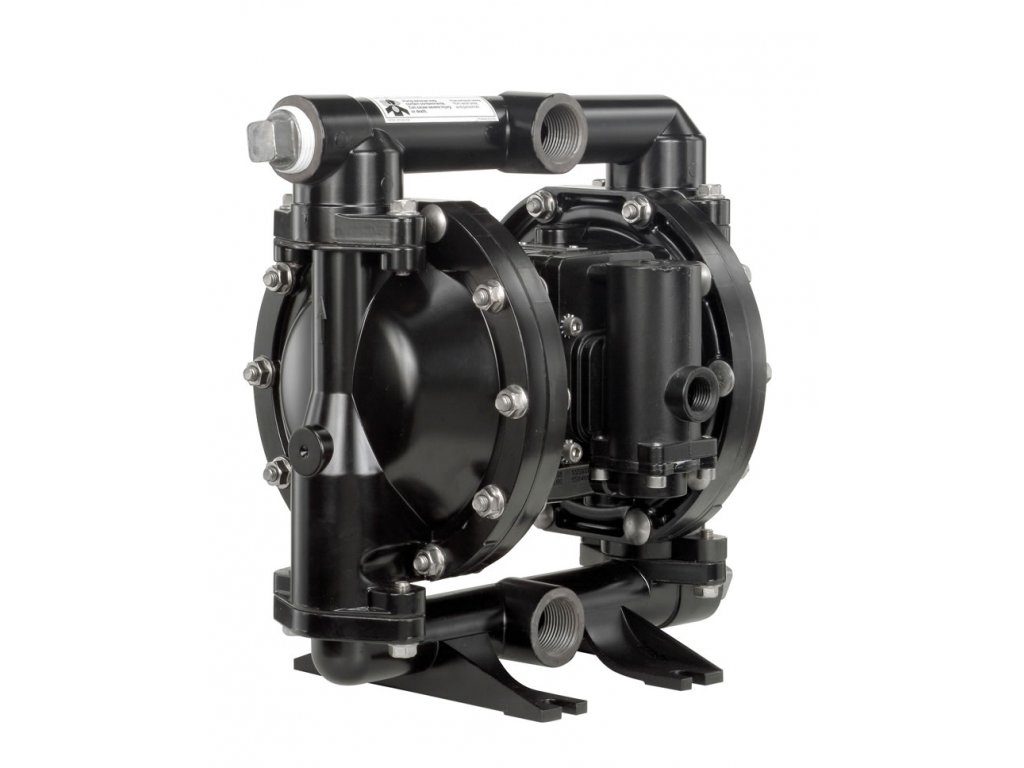

Diaphragm pump ARO 1" Hliník/Santoprene ATEX, Output 200 l/min, pressure 8.3 bar
Code: PD10A-BAP-AAARelated products
ARO, air sleeve, pos. 103
ARO, valve seat, PP, pos. 21
Santoprene wheel for pump ARO PD05P, pos. 22
Santoprene diaphragm for pump ARO PD10, pos. 7
ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)
Air service kit for pump ARO PD03/05/07
Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings
Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.
Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.
Santoprene diaphragm for pump ARO PD05P
ARO, valve seat, PVDF, 66605X-4XX, pos. 21
Air silencer ARO, pos. 201
Hytrel diaphragm for pump ARO 6605 XXXXX
ARO, air service kit, PD03/05/07
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
Weight: | 20.7 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Hliník |
Materiál sedel čerpadla: | Hliník |
Materiál kuliček čerpadla: | Santopren |
Materiál membrán čerpadla: | Santopren |
Max. výkon: | 200 l/min |
Max. výtlak: | 8,3 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -5,7 m |
Max. teplota média: | |
Max. velikost pevných částic: | max. 3,2 mm |
Připojení sání/výtlak: | Vnitřní závit 1" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | ANO |
