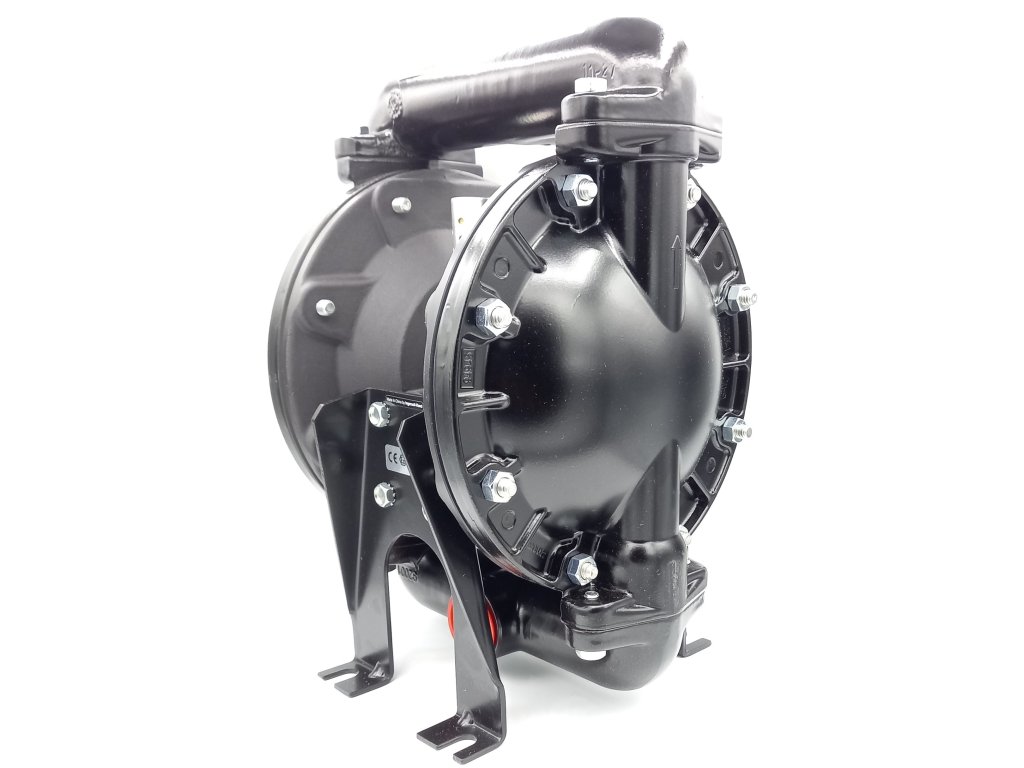

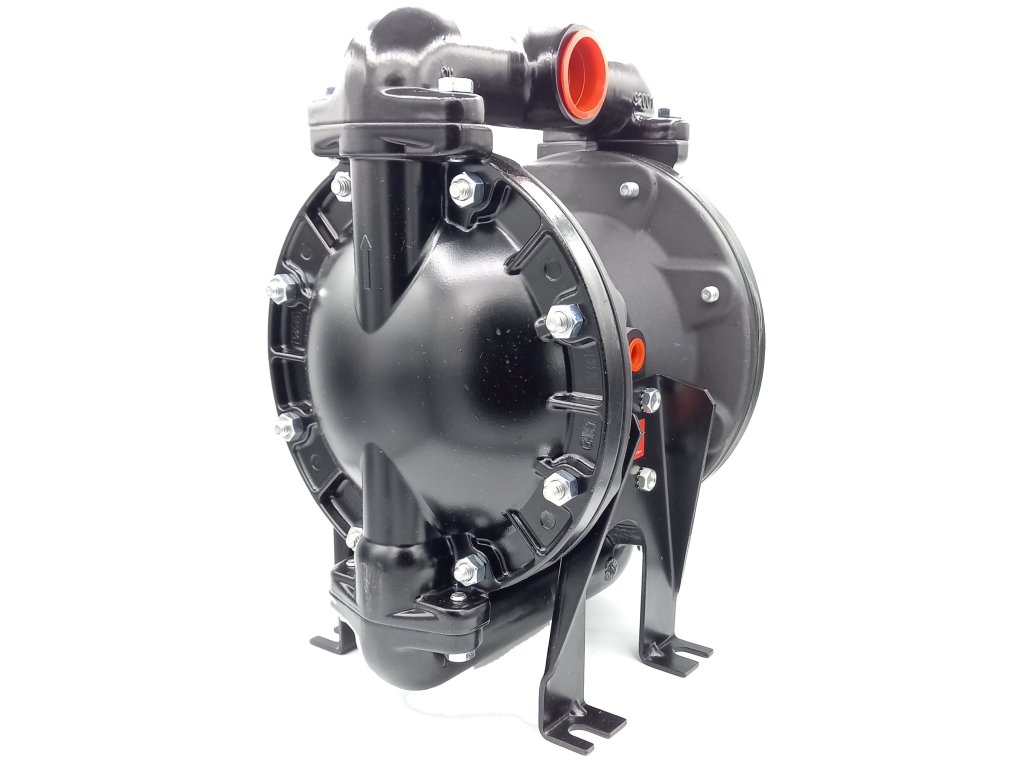

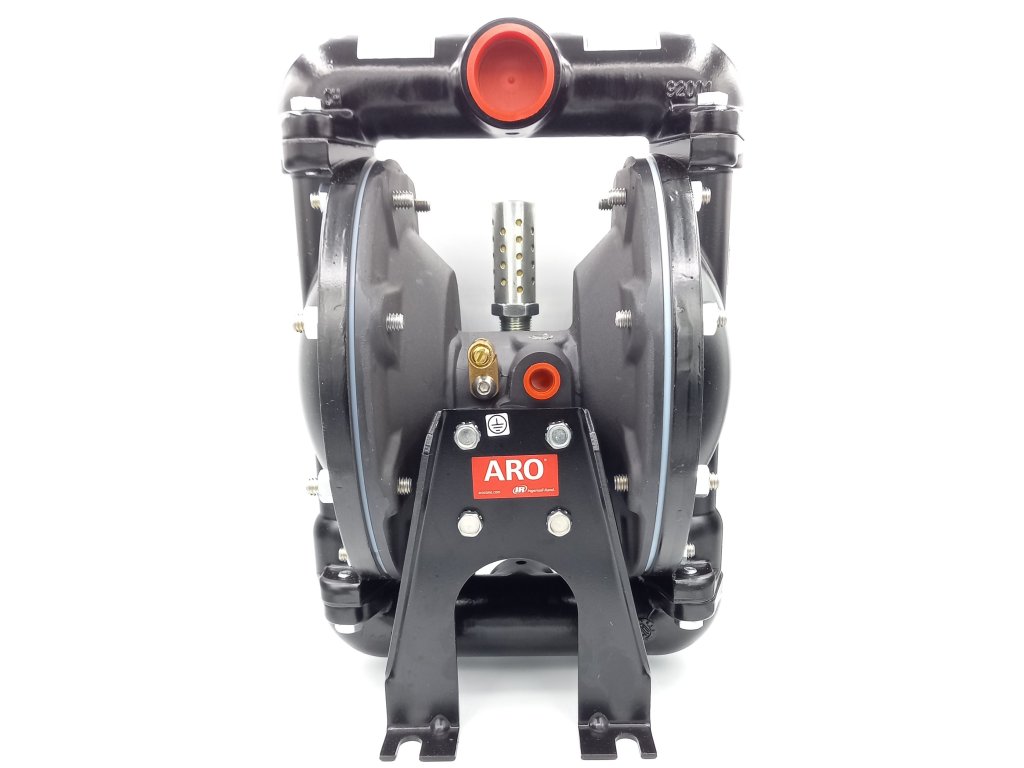

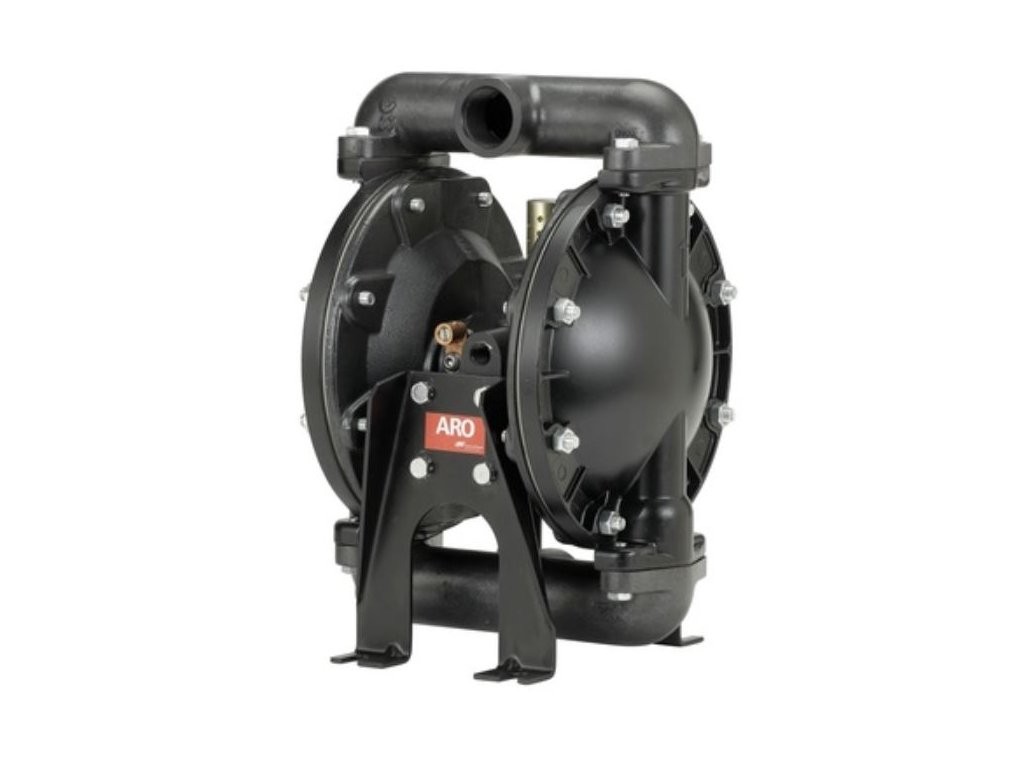

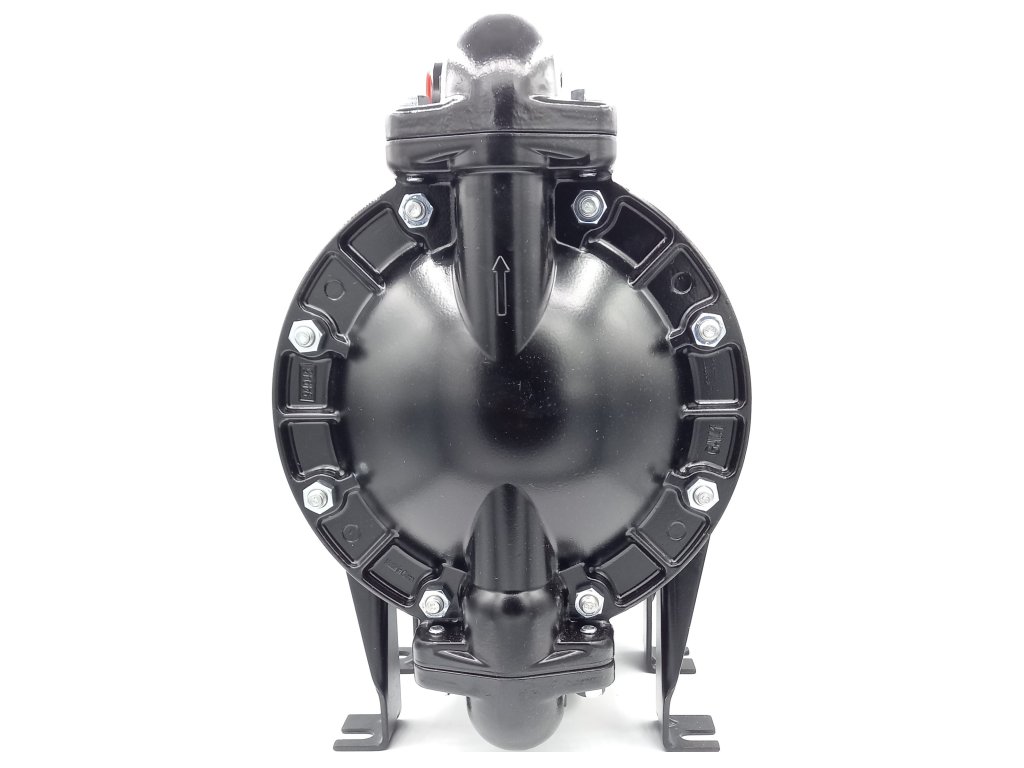

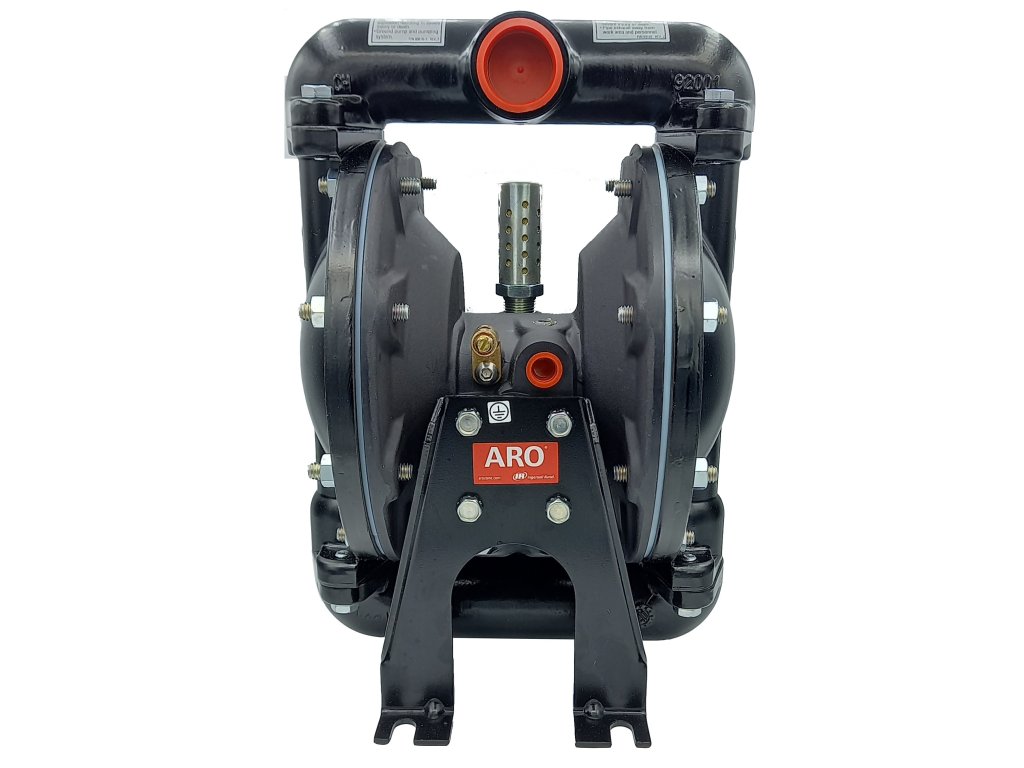

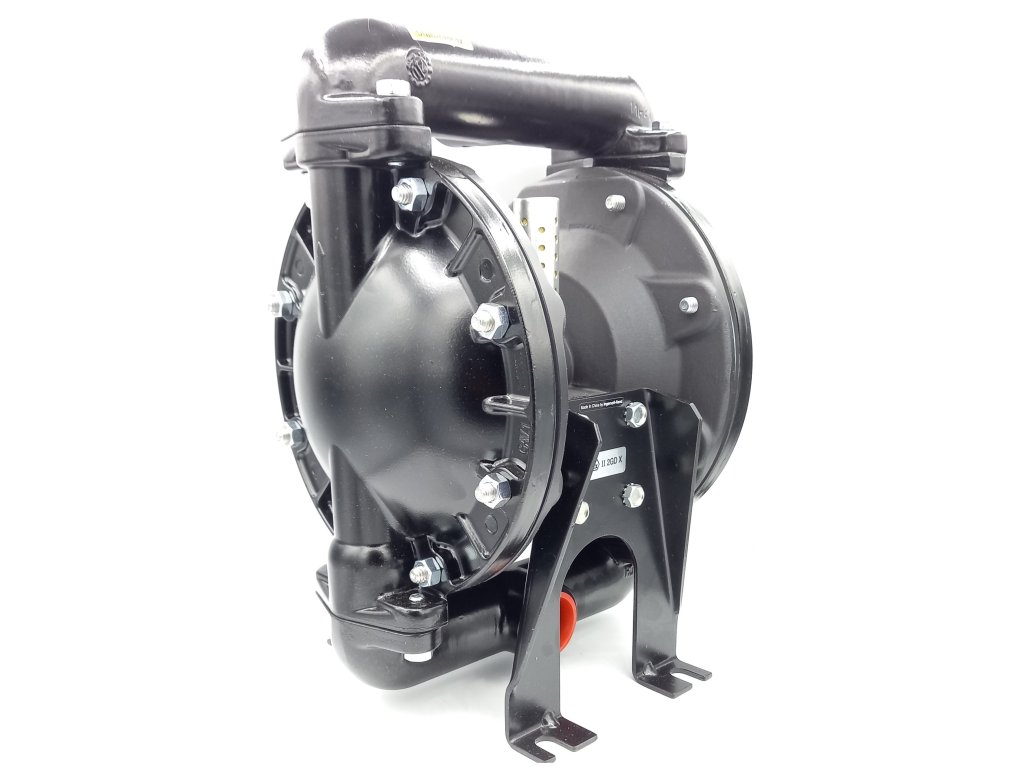

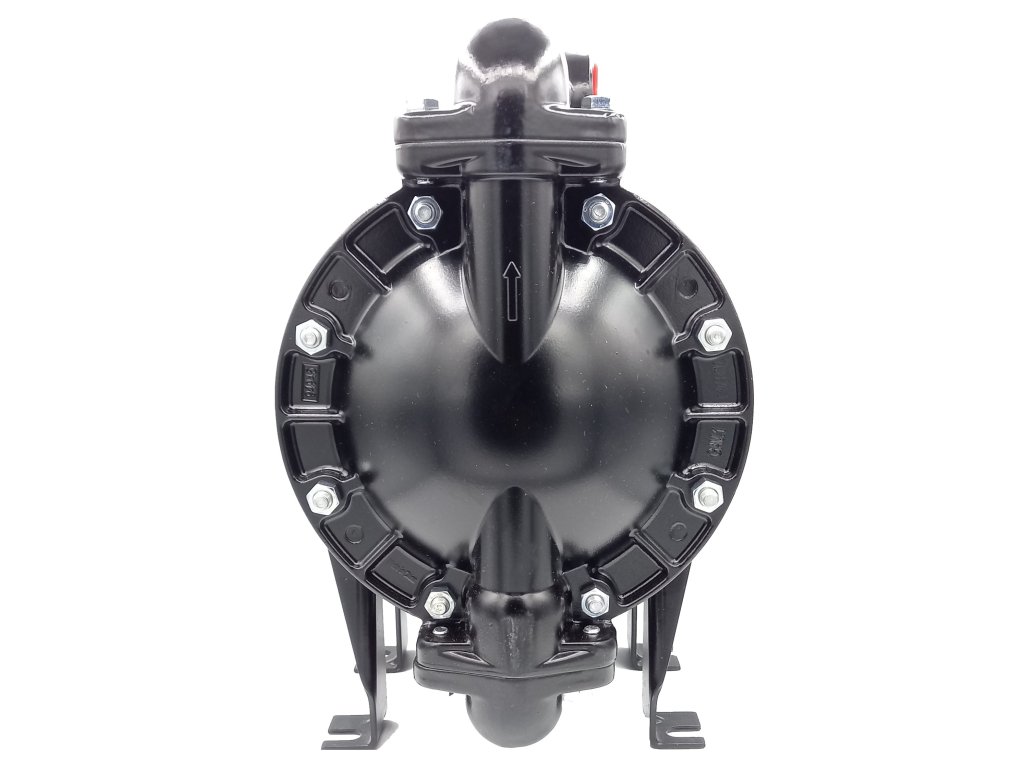

Diaphragm pump ARO 1" Hliník/PP/Hytrel, Output 133 l/min, pressure 8.3 bar
Code: 666120-3C9-CRelated products

Diaphragm pump, output 133 l/min, discharge 8,3 bar, material Hliník, seats Hliník, diaphragms and balls Teflon. Alternative replacement for pump ARO 666120-3C9-C

Santoprene diaphragm for pump ARO PD10, pos. 7

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.

ARO, valve seat, PP, pos. 21

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

Air silencer ARO, pos. 201

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)


Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Santoprene wheel for pump ARO PD05P, pos. 22

Santoprene diaphragm for pump ARO PD05P

ARO, valve seat, PVDF, 66605X-4XX, pos. 21


Santoprene diaphragm for pump ARO PD05P
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 year |
Weight: | 10 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Hliník |
Materiál sedel čerpadla: | Polypropylen |
Materiál kuliček čerpadla: | Hytrel (TPE) |
Materiál membrán čerpadla: | Hytrel (TPE) |
Max. výkon: | 133 l/min |
Max. výtlak: | 8,3 bar |
pH: | 7 až 10 |
? Samonasávací schopnost: | -5,7 m |
Max. teplota média: | 137,8°C |
Max. velikost pevných částic: | max. 3,2 mm |
Připojení sání/výtlak: | Vnitřní závit 1" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | ANO |
