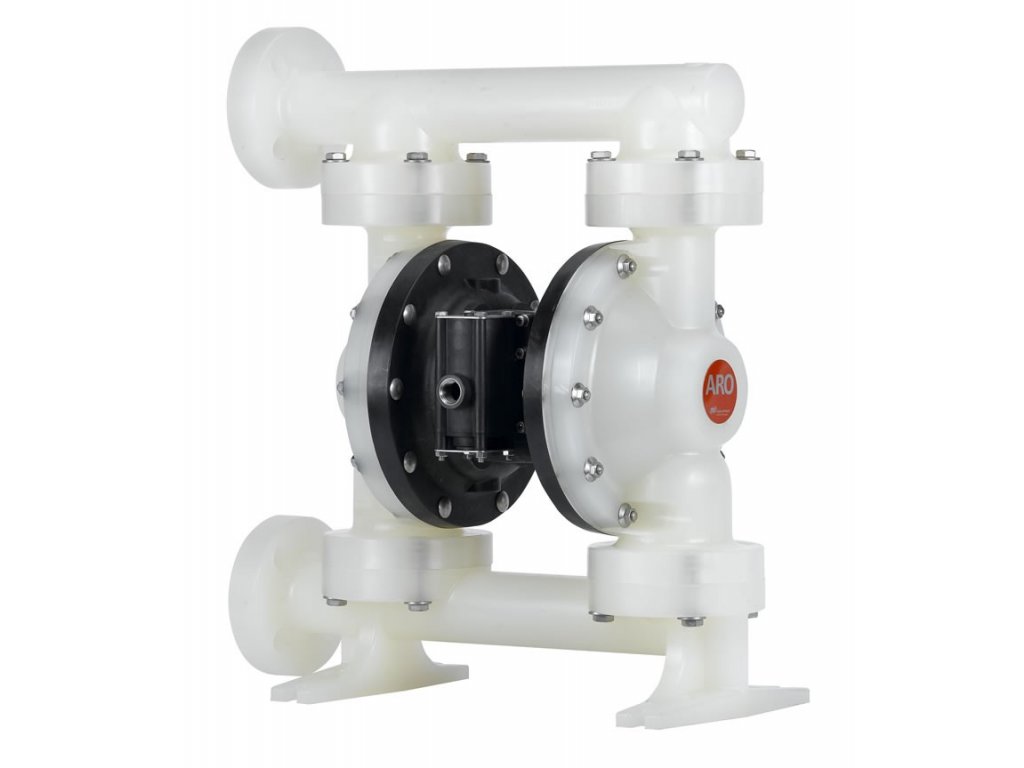

Diaphragm pump ARO 1,5" Polypropylen/Santoprene, Output 465 l/min, pressure 8.3 bar Výkon 465 l/min, výtlak 8,3 bar
Code: PD15P-FPS-PAARelated products


Hytrel diaphragm for pump ARO 6605 XXXXX

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings


ARO, air sleeve, pos. 103

Santoprene wheel for pump ARO PD05P, pos. 22

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.

ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Santoprene diaphragm for pump ARO PD05P

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Santoprene diaphragm for pump ARO PD05P

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

Air silencer ARO, pos. 201

Santoprene diaphragm for pump ARO PD10, pos. 7

ARO, air service kit, PD03/05/07

Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 year |
Weight: | 19 kg |
EAN: | 7430988128954 |
Řada : | ARO |
Materiál tělesa čerpadla: | Polypropylen |
Materiál sedel čerpadla: | Polypropylen |
Materiál kuliček čerpadla: | Santopren |
Materiál membrán čerpadla: | Santopren |
Max. výkon: | 465 l/min |
Max. výtlak: | 8,3 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | |
Max. velikost pevných částic: | max. 6.4 mm |
Připojení sání/výtlak: | Příruba DIN 1 1/2" |
Pohon: | Stlačený vzduch max. 8,3 bar |
Připojení vzduch: | Vnitřní závit 1/2" |
ATEX: | NE |

Diaphragm pump ARO with side connection, flange version DN25. Material design Polypropylen, Santoprene balls and membranes, Output 200 l/min, discharge pressure 8,3 bar.

Membránové čerpadlo ARO 1" Polypropylén / SANTOPRENE, Výkon 178 l / min, výtlak 8,3 bar. Materiál Polypropylen, membrány a kuličky Santopren. Čerpadlo je vhodné pro chemické...


Diaphragm pump, output 200 l/min, discharge 8.3 bar, material Hliník, seats Hliník, Santoprene diaphragms.


Membrane pump ARO in material version Stainless steel/Teflon. Output 54,5 l/min, discharge 8,3 bar. Including ATEX certificate.

FDA certified, compressed air driven food grade diaphragm pump ARO PM15A-CSS-STT-A02. Internal Tri-Clamp 2" BSP connection. Pump material Stainless steel/Teflon. Max. output...

Diaphragm pump ARO 66605J-3EB with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 49,2 l/min at water, discharge...

Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Teflon, Output 178 l/min, displacement 8,3 bar

Diaphragm pump ARO 1/4". Material Polypropylene, membranes and Santoprene beads. Output 40 l/min, displacement 8.3 bar. Pump is suitable for chemical solutions, acid alkalis,...

Food grade diaphragm pump ARO PM05R-CSS-STT-B02 with FDA certificate, compressed air drive. Internal Tri-Clamp connection 1 1/2" BSP. Pump material Stainless steel/Teflon. Max....

Plastic barrel pump ARO PD05, max. output 54,5 l/min, suitable for neutral and abrasive media.

Membrane pump ARO in PVDF/Teflon material. Output 40 l/min, displacement 8.3 bar. The pump material design is suitable for concentrated acids and alkalis


Diaphragm pump ARO 1/4". Material Polypropylene, membranes and Santoprene beads. Output 40 l/min, displacement 8.3 bar. Pump is suitable for chemical solutions, acid alkalis,...
-

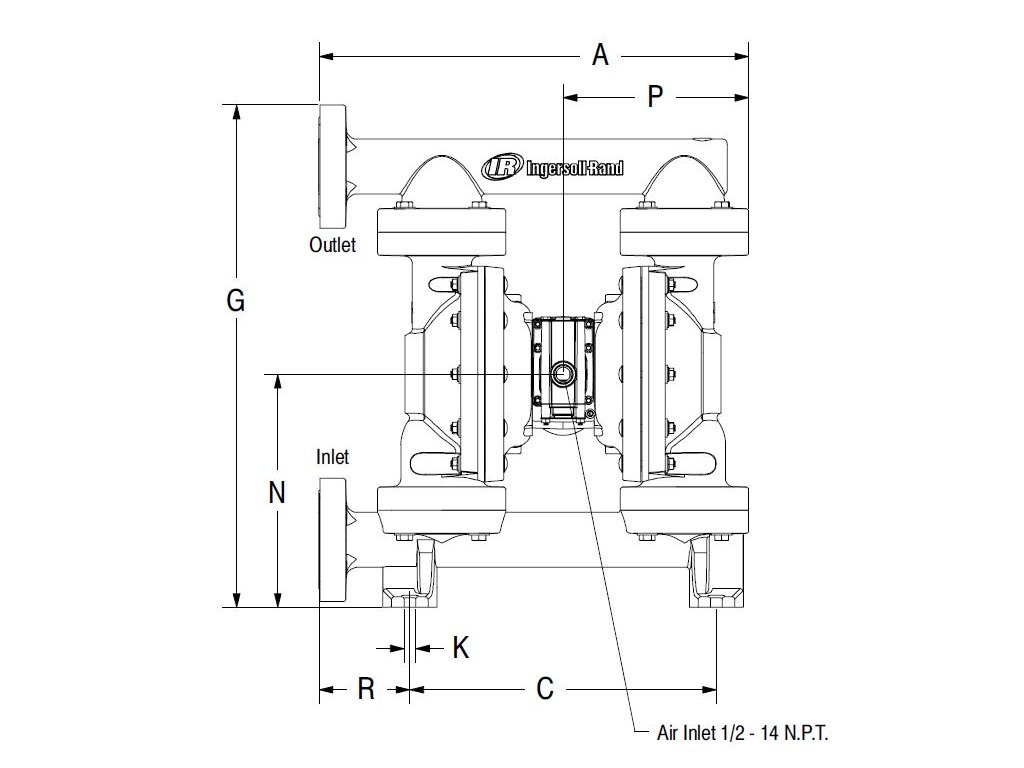

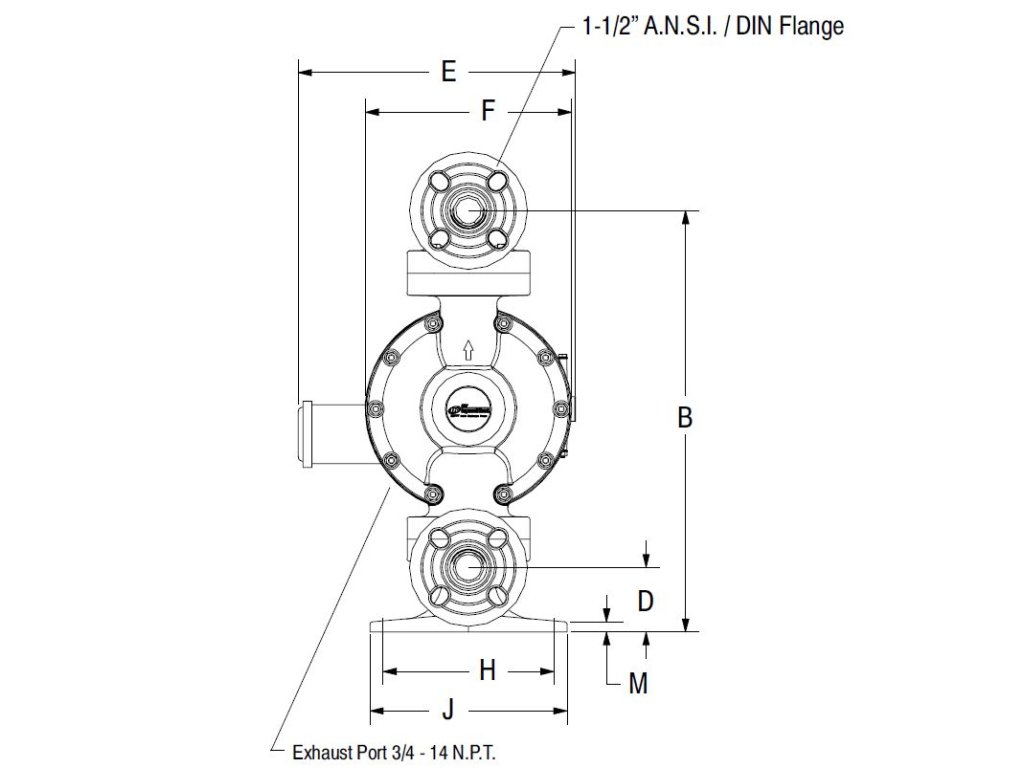

Rozměr (388.1 kB)
-
Datový list (267.2 kB)
-
Manuál (1.2 MB)
-
Manuál membránová čerpadla ARO (930.8 kB)
-
Celkový katalog (14.7 MB)
-
Tabulka chemických odolností (4.3 MB)
