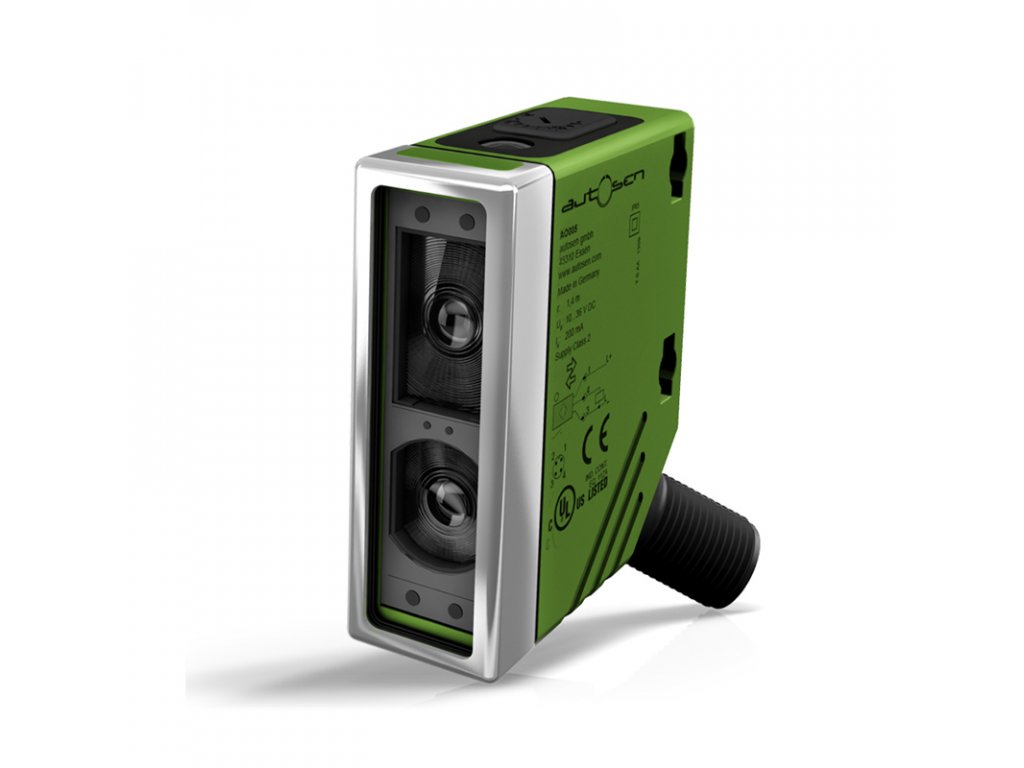

Optical sensor with PA cover AO005

Code: AO005

128 € / pcs 155 € incl. VAT 128 € / 1 pcs

Delivery to: 05/05/2025

Diffuse reflection sensor with background suppression
Visible red light for easy adjustment
Light switching (normally open)

Diffuse reflection sensor with background suppression and potentiometer for setting the detection range. A diffuse reflection sensor that combines a light transmitter and receiver in the same housing and does not require additional assistance for object recognition. The timed red light is reflected on the object to be detected and evaluated by the integrated sensor receiver. The special power of the reflected light scanner lies in the background suppression without interference. Other technical characteristics and corresponding accessories (AA005, AA006, AA007, AA008, AA906)

Reflective light sensor

Diffuse reflection sensors are used for direct object detection. The transmitter and receiver are housed in an enclosure. The transmitter emits light that is reflected from the object to be detected and recognized by the internal receiver.

Detailed information

Show all related products

Product detailed description

Technical data AO005

General information

Switching distance 0 .05 ... 1.40 m

Background suppression Yes

Switching frequency 1000 Hz

Sensor diffuse reflection sensor

Light type red light

Outputs / inputs

Output light switching

IO-Linkch.

Electrical data

Short circuit protection Yes

Operating voltage 10 ... 36 V DC power class 2 cULus

Surge protection Yes

Overload Yes

DC voltage

Electric PNP version

Current carrying capacity max.200 mA

Voltage drop max.2.5 V

Protection class II

Current consumption max. 25 mA

Mechanical data

Material active surface PMMA

Enter the cuboid command

Material housing Polyamide (PA) V4A TPE

Connect gold-plated M12 contacts with 3 pins

accuracy

Bright spot diameter 50 mm (at maximum scanning distance) mm

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.60°C

Protection class IP65

Further information

MTTF331

Function display Switching status: LED, yellow

Accessories included No accessories

EMC testing DIN EN 60947-5-2

CE approval
cULus

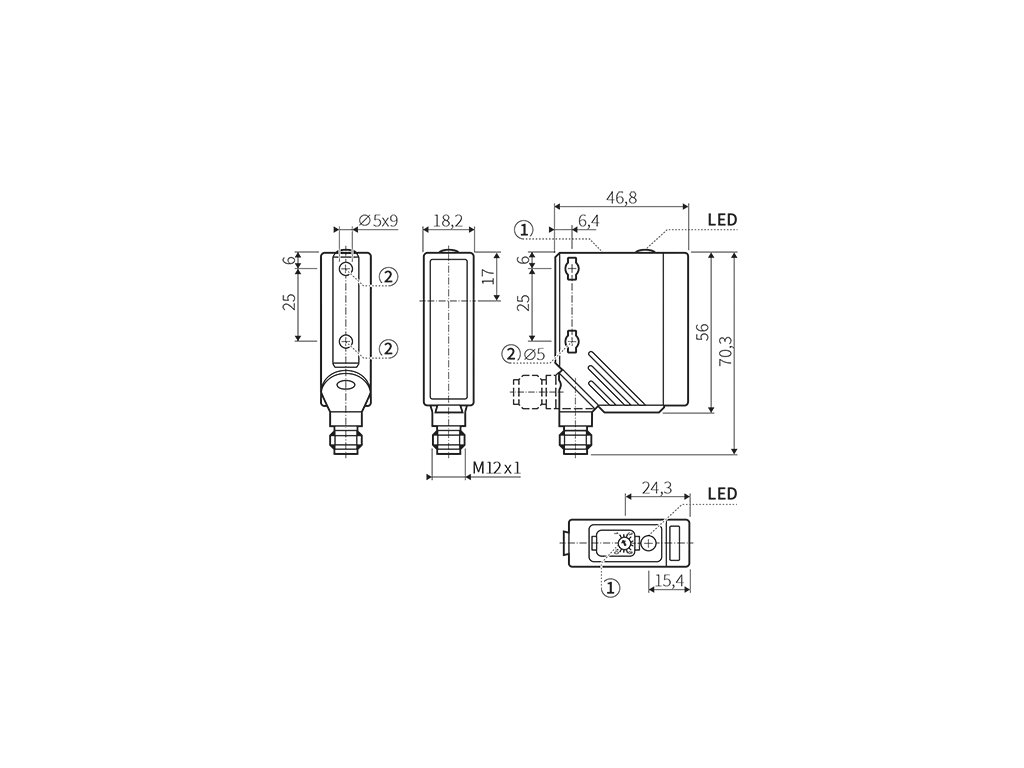

Dimensional drawing Legend Tightening torque max. 2 Nm
Receiver in the upper optics
Transmitter in lower optics
1: Potentiometer
2: When using the M5 fixing screw

precision curve

Accuracy curve Legend x : Distance sensor / object [mm]
y: Object / background minimum distance [mm]
a: Sensor
b: Object
c: Background

Connection and pin assignment

Additional parameters

Category:	Laserové snímače
Warranty:	2 years
Weight:	0.2 kg
