    Home / Produkty / Dávkovací čerpadla SEKO / Compact AMC200NPE0000 PVC/Teflon/Viton max. 5 l/hour, max. 10 bar

    Compact AMC200NPE0000 PVC/Teflon/Viton max. 5 l/hour, max. 10 bar

    Code: AMC200NHE0000
    Dávkovací čerpadlo SEKO KOMPACT AMC Create Flow
    252 € / pcs 305 € incl. VAT 252 € / 1 pcs
    Skladem (1 pcs)
    Delivery to:
    31/10/2025

    Constant flow, which can be set manually or with proportional flow according to the digital input signal (from the water meter), the Power-ON indicator and the level control input. The two different modes are

    • Constant (switch in position C) The pump continuously doses the speed selected by the potentiometer.
    • Proportional (switch in position P) The pump is dosed in proportion to the digital input signal (division mode 4:1). Maximum input frequency: 80 Hz.

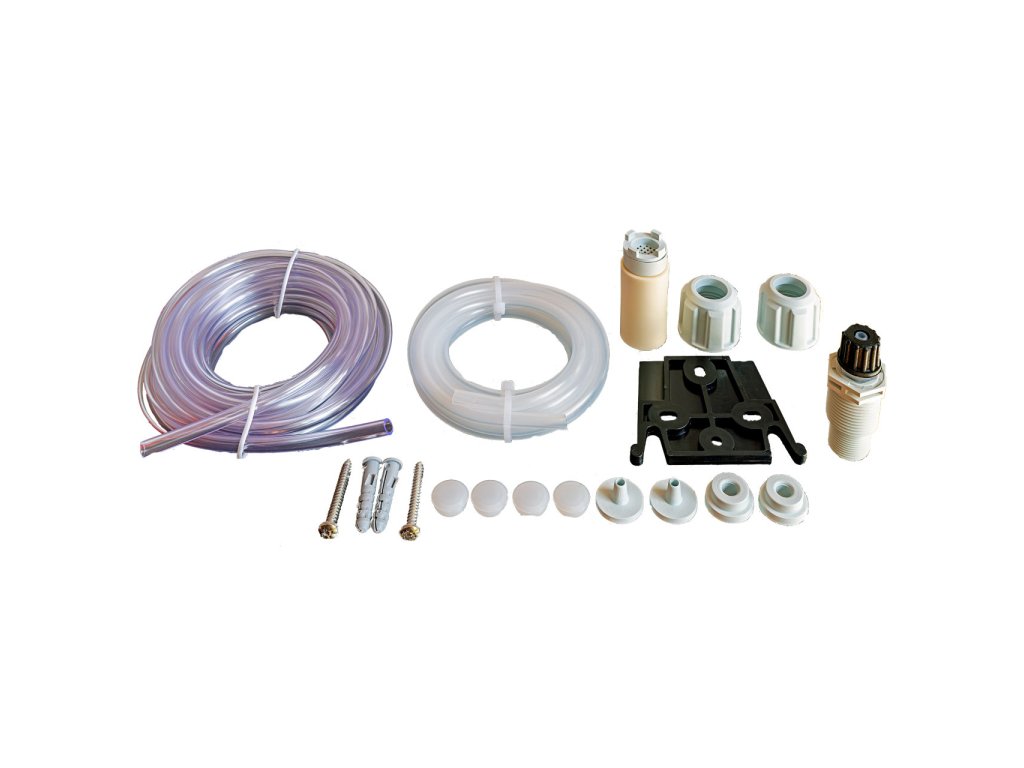

    Sthe package includes a foot and injection valve in PVC material, Viton gasket, PVC suction hose approx. 4 m long, Polyethylene discharge hose approx. 2 m long, plastic pump foot (holder).

    Detailed information

    Related products

    Plovák pro dávkovací čerpadlo SEKO Create FLow
    Float switch SEKO
    Skladem (19 pcs)
    47 € incl. VAT
    39 €

    Voltageless level gauge including bracket for attachment to heel filter SEKO. A level sensor prevents the pump from running if the fluid in the storage tank runs out. In the...

    Code: EM99121000
    Průtokoměr SEKO impulz Create Flow
    Water meter/Flow meter 1/2", 4 pulzy/1l to cold water max. teplota vody +50°C
    Dodací termín 2 až 3 pracovní týdny
    155 € incl. VAT
    128 €

    Water meter/Cold water meter. Output 4 pulses per 1 l/. Max, water temperature +50°C. The flowmeter includes a 3 m cable.

    Code: WMT013C1D0

    Product detailed description

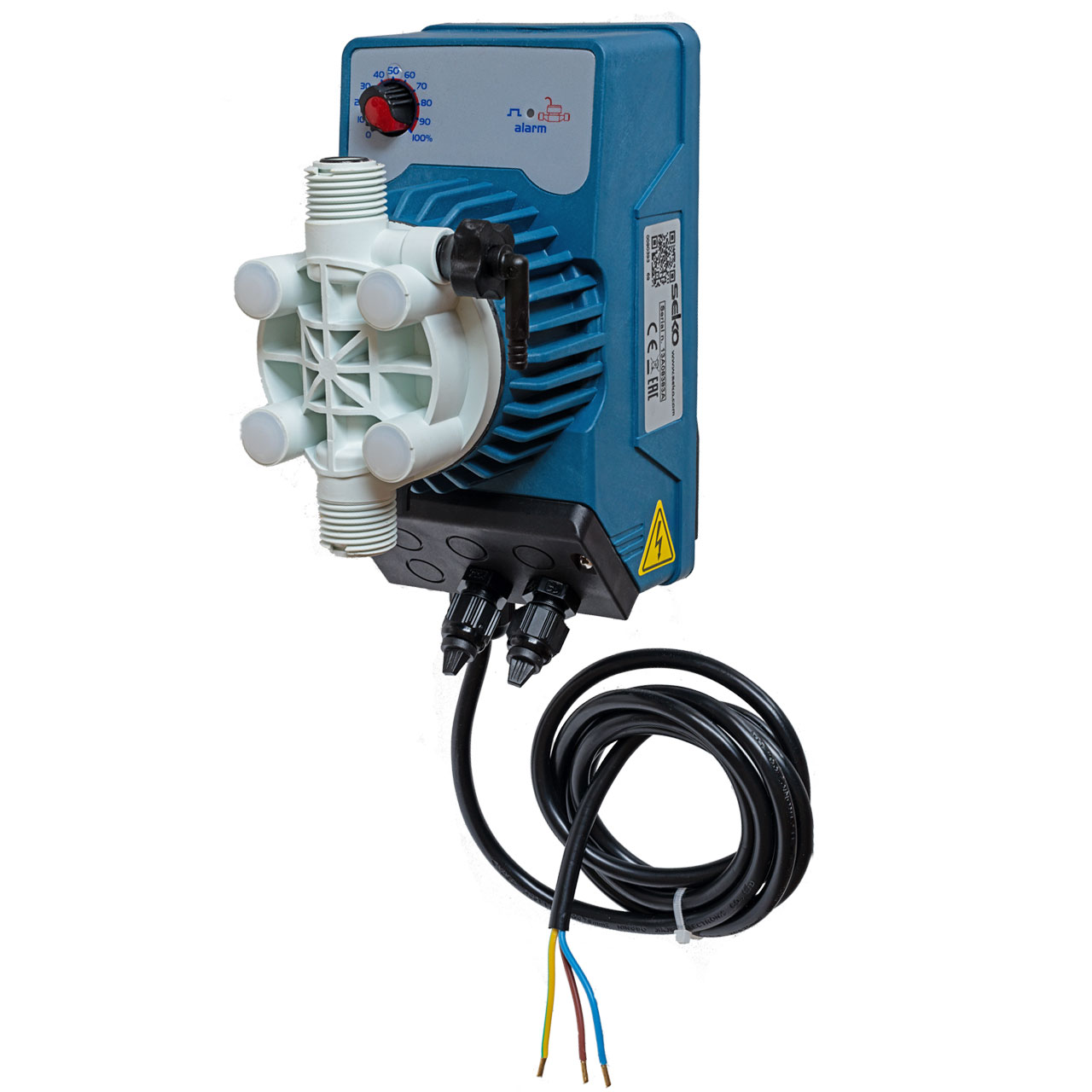

    Dávkvací čerpadlo SEKO Kompact AMC Create Flow


    Dávkvací čerpadlo SEKO Kompact AMC výkonová tabulka Create Flow

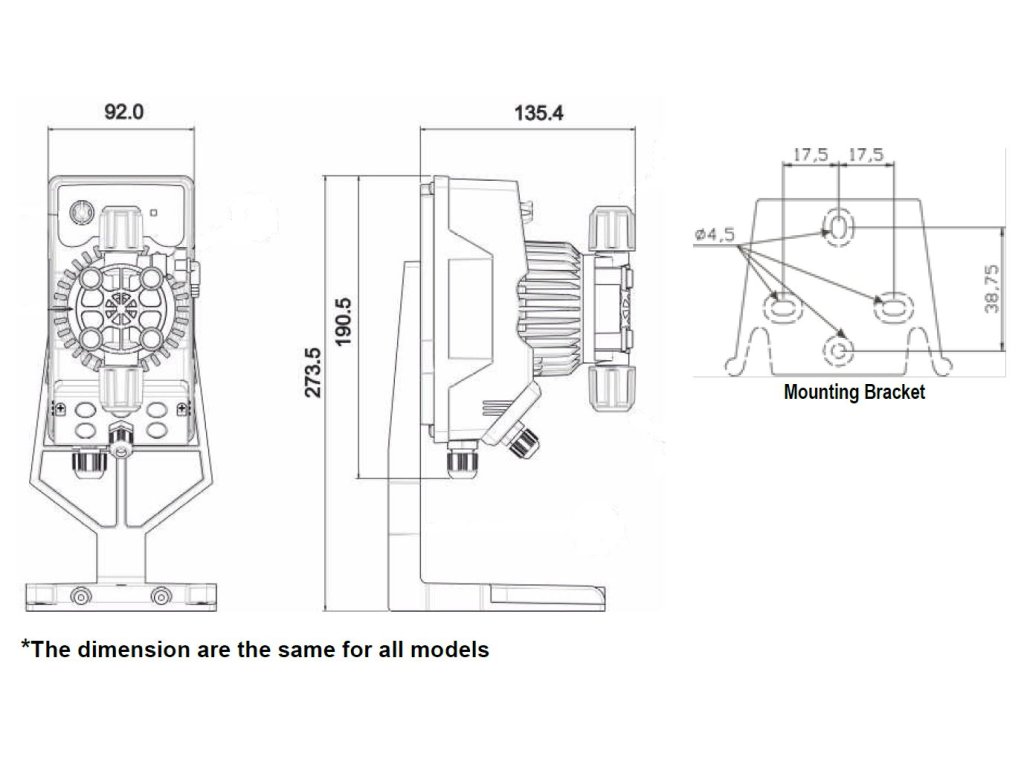

    Dávkvací čerpadlo SEKO Kompact AMC rozměr Create Flow

    AMC%20D%C3%A1vkovac%C3%AD%20%C4%8Derpadlo%20SEKO%20Kompact%20AMC%20Create%20Flow

    Dávkovací čerpadlo SEKO příslušenství Create FLow

























    Additional parameters

    Category: Dosing pumps SEKO
    Warranty: 0
    Weight: 2.9 kg
    Max. výkon: 5 l/hod
    Max. tlak: 10 bar
    ? Počet zdvihů: 160 zdvihů/min
    ? Manuální počet zdvihů: 0 až 100%
    ? Ŕízení : Impulz
    Připojení pro hladinový spínač: ANO
    Hlava: PVDF-T (PVC)
    Membrána: Teflon
    Kuličky: Kereamika
    Těsnění: FKM (Viton)
    Napájení: 100-240 V AC 50/60 Hz
    ? Instalační sada: Vstřikovací a patní ventil, hadička na sání a výtlak, patní držák
