Inductive sensor flow rate programmable G 1/2 A AS002

Code: AS002

Brand: Autosen

AS002 snímač průtoku programovatelný

AS002 snímač průtoku programovatelný

as002 snímač průtoku programovatelný (2)

as002 snímač průtoku programovatelný

€804 / pcs €973 incl. VAT €804 / 1 pcs

Delivery to: 09/05/2024

Magnetically inductive flow sensor
Connecting the pipe via an adapter
Function programmable

The flow sensor AS002 with process connection G 1/2 (flat seal) is a magnetic inductive flow sensor. The device is connected to the pipe with adapters (see accessories) and 2 outputs with programmable function. The AS002 flowmeter has a measuring range of 0.1 to 25 l/min and is suitable for conductive liquid media. The device also has a totalizing function, an input to reset the counter.

Flow sensors are used in modern systems for monitoring liquid or gaseous media. For example, for the supply of cooling and lubricants to machinery and equipment, for ventilation systems and buildings, or for product processing. They work without wear without mechanical parts. This ensures reliable operation over a long period of time even with difficult media

Detailed information

Show all related products

Product detailed description

Technical data AS002

General information

Application: conductive liquid media (conductivity:>=20 μS/cm/viscosity:<70 mm²/s at 40°C)

Flow measurement range 0 .1 ... 25 l/min

Parameterization of hysteresis / window / NC switching logic
Switchable display
current/voltage/pulse output
start-up delays
display
counter

Temperature measurement range min.-20°C

Temperature measurement range Max.80°C

Outputs / inputs

Pulse output Yes

Counter reset Yes

Switched output 2 x normally open/normally closed programmable

Analog output 4 ... 20 mA 0 ... 10 V
Programmable/scalable

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 19 ... 30 V DC

Surge protection Yes

Overload Yes

DC voltage

Electrical design PNP/NPN
Programmable

Current capacity max.2 x 200 mA

Voltage drop max. 2 V

Protection class III

Current consumption max.95 mA

Mechanical data

Materials in contact with V4A (1.4404)
FKM

Housing material V4A (1.4404)
FKM
PC
PBT-GF 20

Connect gold-plated M12 contacts with 4-pin contacts

Compressive strength 16 bar

Process connection Flat seal
external thread G 1/2

accuracy

Resolution 0 .05 l/min 0.2°C

Standby delay time 5 s

Reproducibility±0.2% MEW* (flow monitoring)

Response dynamics T05 / T09T09= 20 s (temperature monitoring)

Response time 0 .15 s (flow monitoring)

Note* MW = measured value, MEW = full scale value

Accuracy ±(0.8% MW + 0.5% MEW) * ± 2.5°C

environmental conditions

Ambient temperature min.-10°C

Ambient temperature max.60°C

Degree of protection IP67

Further information

MTTF162

Function display LED yellow/green

Programming buttons 4-digit display

Accessories with seals

EMC testing DIN EN 60947-5-9

Impact resistance test DIN EN 60068-2-27

Vibration resistance test DIN EN 60068-2-6

Pressure Equipment Directive Good engineering practice

CE approval
cULus

sketches

pressure loss

Pressure drop LegendadP: Pressure drop
Q: Flow rate

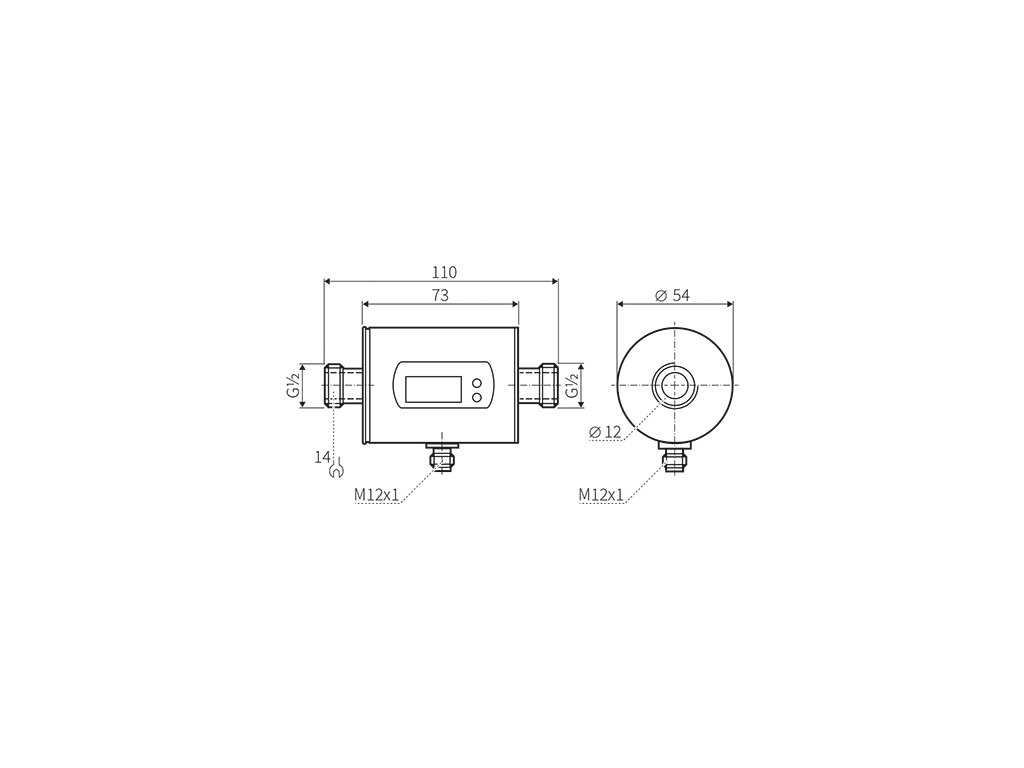

drawing

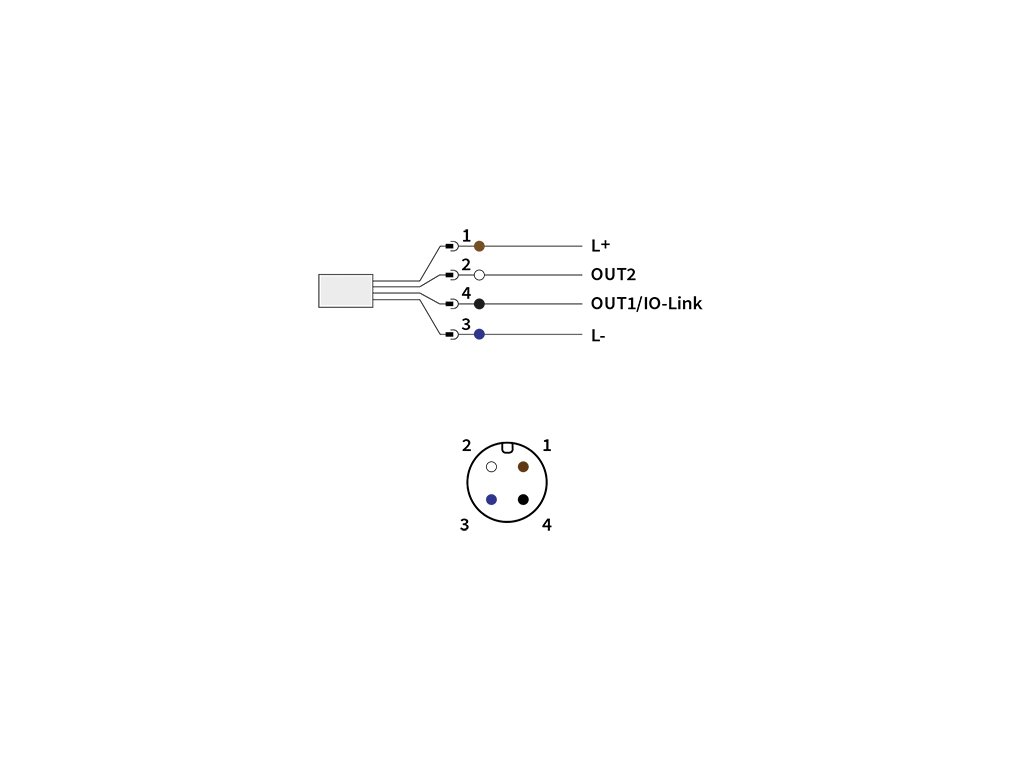

Connection and pin assignment

Additional parameters

Category:	Snímače průtoku
Warranty:	5 let
Weight:	0.2 kg
