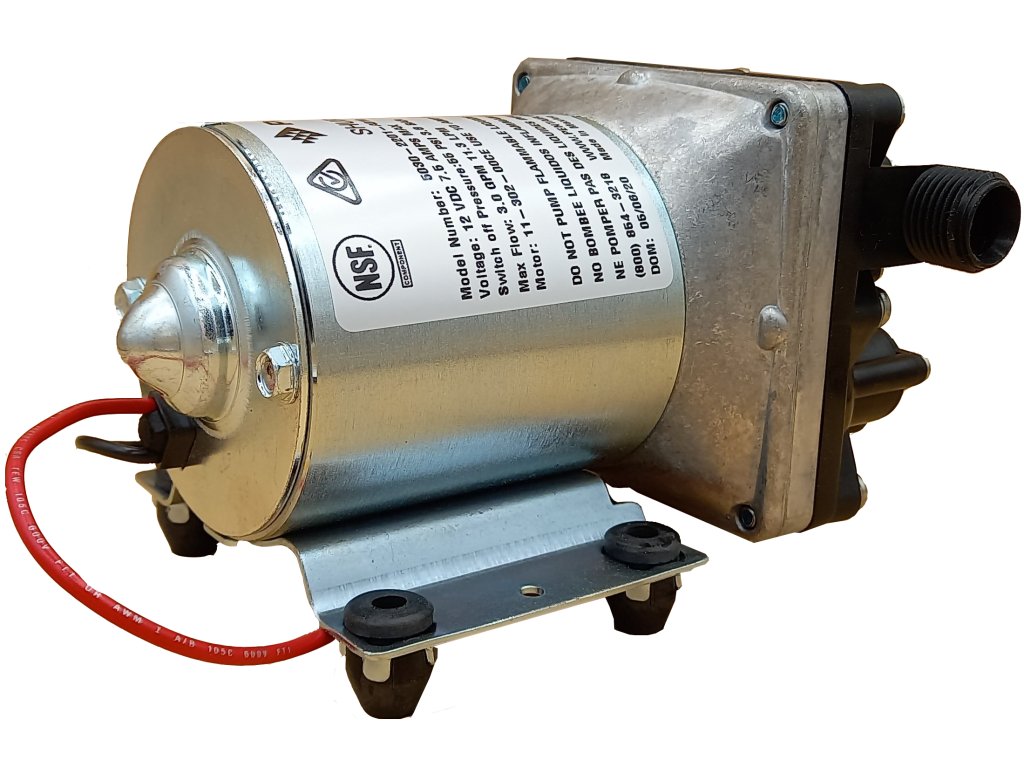

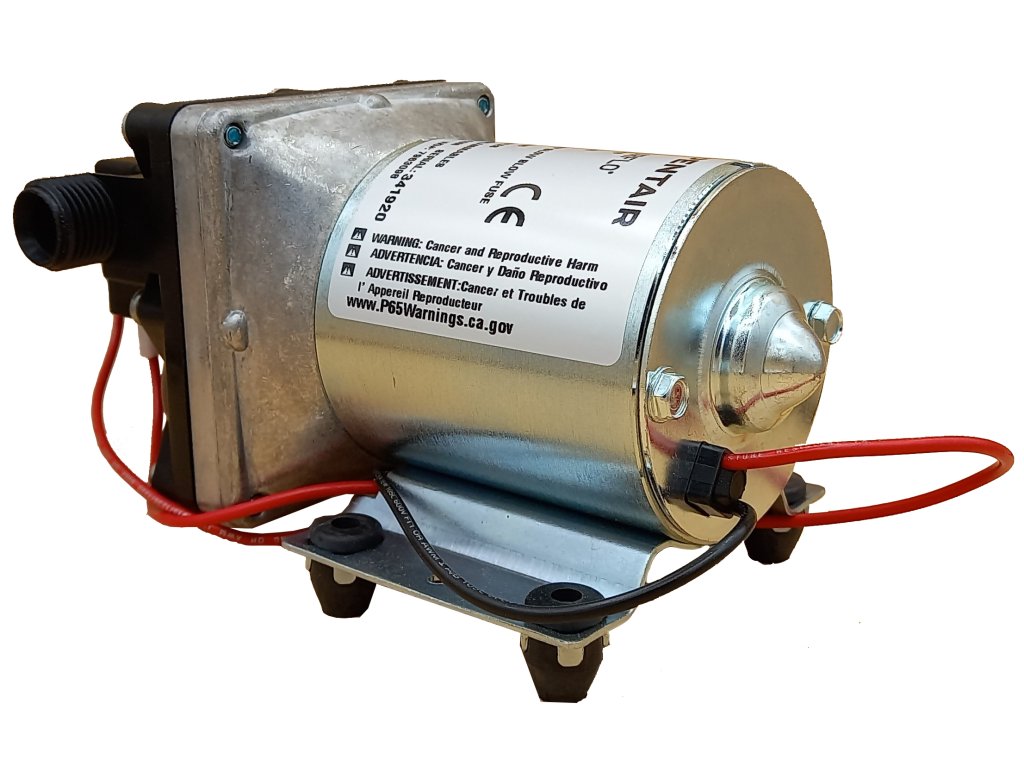

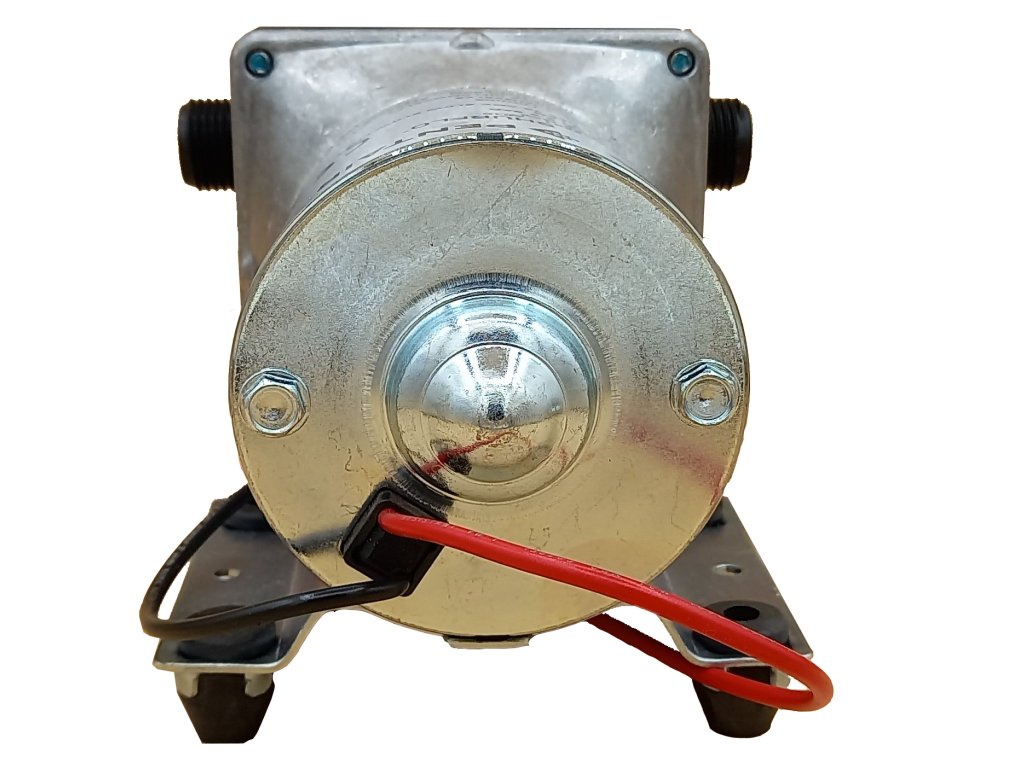

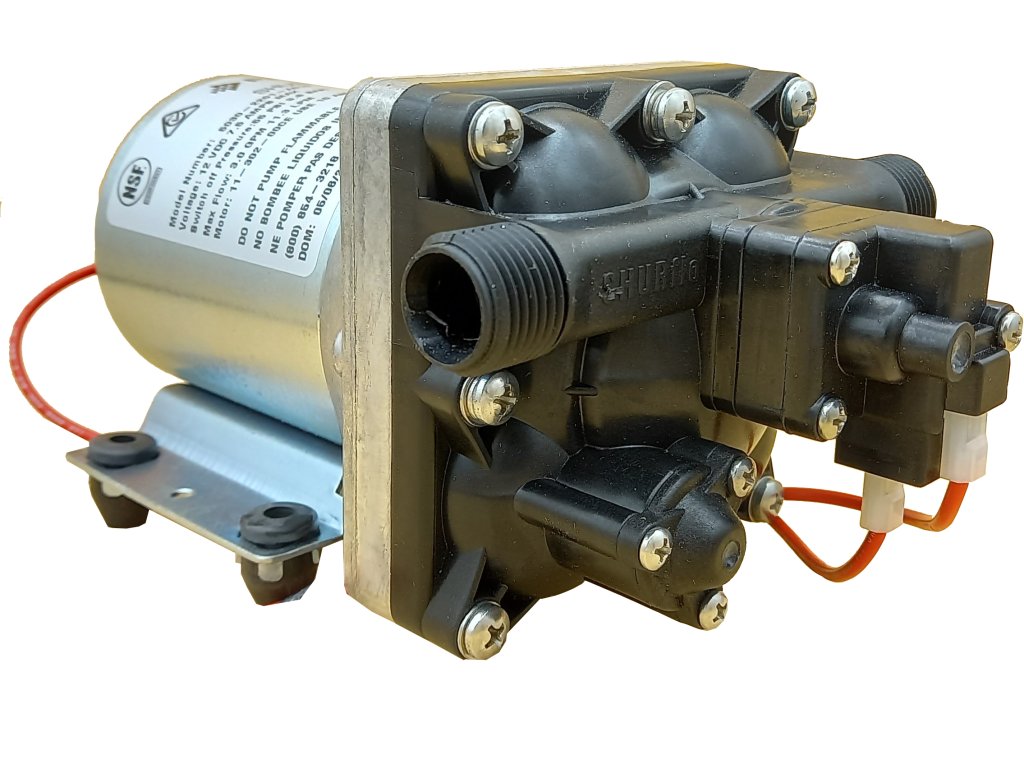

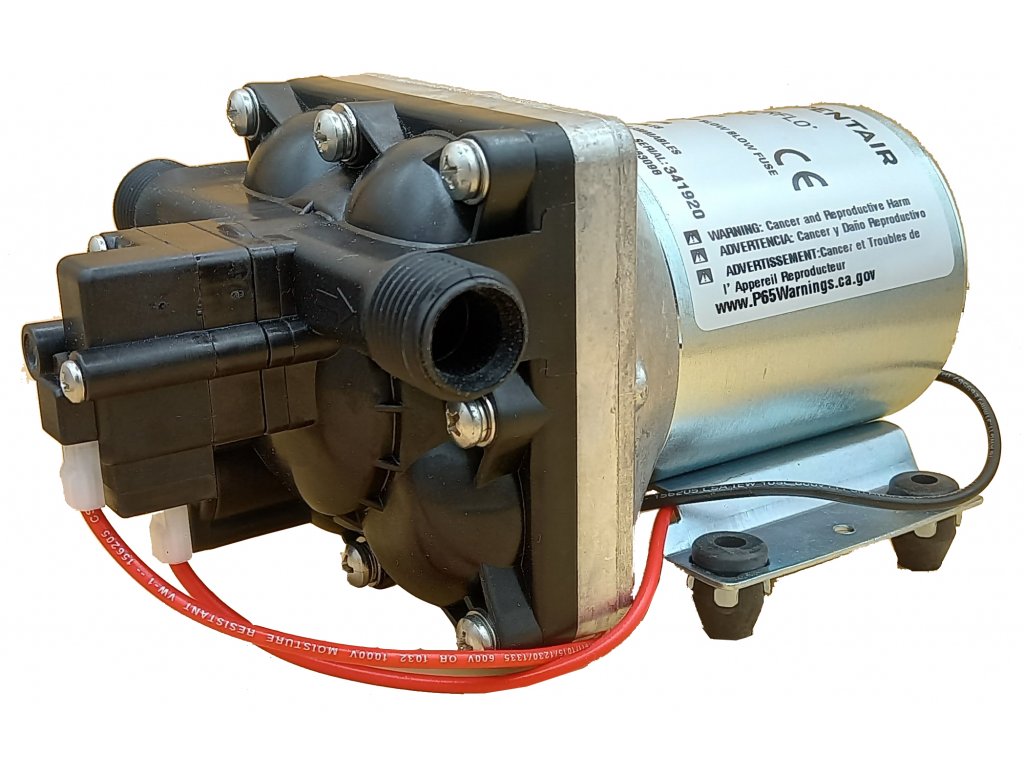

Electromembrane pump SHURFLO 4009-101-A65, max. power 11,3 l/min, max. 3,8 bar, 12 IN DC
Code: 4009-101-A65Related products

The most widely supplied diaphragm pump for pumping water in caravans, boats, motorhomes. Max. output 11,6 l/min, max. 3,1 bar. Easy regulation of output pressure. Self-priming...

Membrane pump for caravans and boats for pumping water. Max. output 11.7 l/min, max. 2.1 bar, self-priming capacity -1.8 m. Power supply 12 V DC. Alternative compensation...

Membrane pump for caravans and boats for pumping water. Max. output 11.2 l/min, max. 3.1 bar, self-priming capacity -1.8 m. Power supply 12 V DC. Alternative replacement:...

The most widely supplied diaphragm pump for pumping water in caravans, boats, motorhomes. Max. output 11,6 l/min, max. 3,1 bar. Easy regulation of output pressure. Self-priming...

Electric diaphragm pump SHURFLO 8000-343-236, 12 V DC power supply for intermittent max. output 4.4 l/min, max. discharge 4.1 bar (41 m), self-priming, dry running. Alternative...

Membrane pump SHURflo 105-003 12 V DC power supply. Designed for intermittent water pumping, max. output 3.8 l/min, max. 2 bar (30PSI), dry running, self-priming. Alternative...

Electric diaphragm pump SHURFLO 2088-343-135, with 12 V DC power supply for intermittent operation, max. pressure 3.1 bar, max. flow 11.3 l/min, conveying height 31 m,...

Membrane pump SHURflo 2095-473-143 24 V DC power supply. Designed for water pumping, max. output 10 l/min, max. 2 bar, dry running, self-priming.

Shurflo diaphragm pump, 24 V DC power supply. Designed for pumping water, max. output 10 l/min, max. 2 bar, self-priming capability, pressure switch for switching the pump on...

Elektormembránové čerpadlo SHURFLO 8000-955-280, napájení 24 V DC pro přerušovaný max. výkon 3,8 l/min, max. výtlak 5 bar (50 m), samonasávací, možnost chodu na sucho.

Membránové čerpadlo SHURflo pro karavany. Určeno pro čerpání vody, max.výkon 6,8 l/min, max. 1,4 bar, možnost chodu na sucho, samonasávací schopnost.

Elektormembránové čerpadlo SHURFLO 8030-813-239, napájení 12 V DC, max. výkon 6,3 l/min, max. výtlak 10 bar (100 m), samonasávací, možnost chodu na sucho.st.

Elektormembránové čerpadlo SHURFLO 8000-853-238, napájení 24 V DC pro přerušovaný max. výkon 6,1 l/min, max. výtlak 6,9 bar (69 m), samonasávací, možnost chodu na sucho.

Double diaphragm pump SHURflo 4558-163-E75 24 V DC power supply. Designed for intermittent water pumping, max. output 37.8 l/min, max. 3.4 bar (50PSI), dry running, self-priming.

Double diaphragm pump SHURflo 4558-153-E75 12 V DC power supply. Designed for intermittent water pumping, max. output 37.8 l/min, max. 3.4 bar (50PSI), dry running, self-priming.
Product detailed description
Additional parameters
Category: | Čerpadlo SHURFLO 12 a 24 V |
---|---|
Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
Weight: | 2.3 kg |
Materiál čerpadla: | Polypropylen |
Membrány: | Santopren |
Sedla: | EPDM |
Max. výkon: | 11,4 l/min |
Max. výtlak: | 3,1 bar |
Integrovaný tlakový spínač: | 2,76 až 3,79 bar (40-55 PSI) |
Sání na sucho: | -1,8 m |
Teplota média: | +5°C až +54°C |
Připojení sání/výtlak: | 1/2" |
Napájení: | 12 V DC 7,5 A |
ATEX: | NE |
