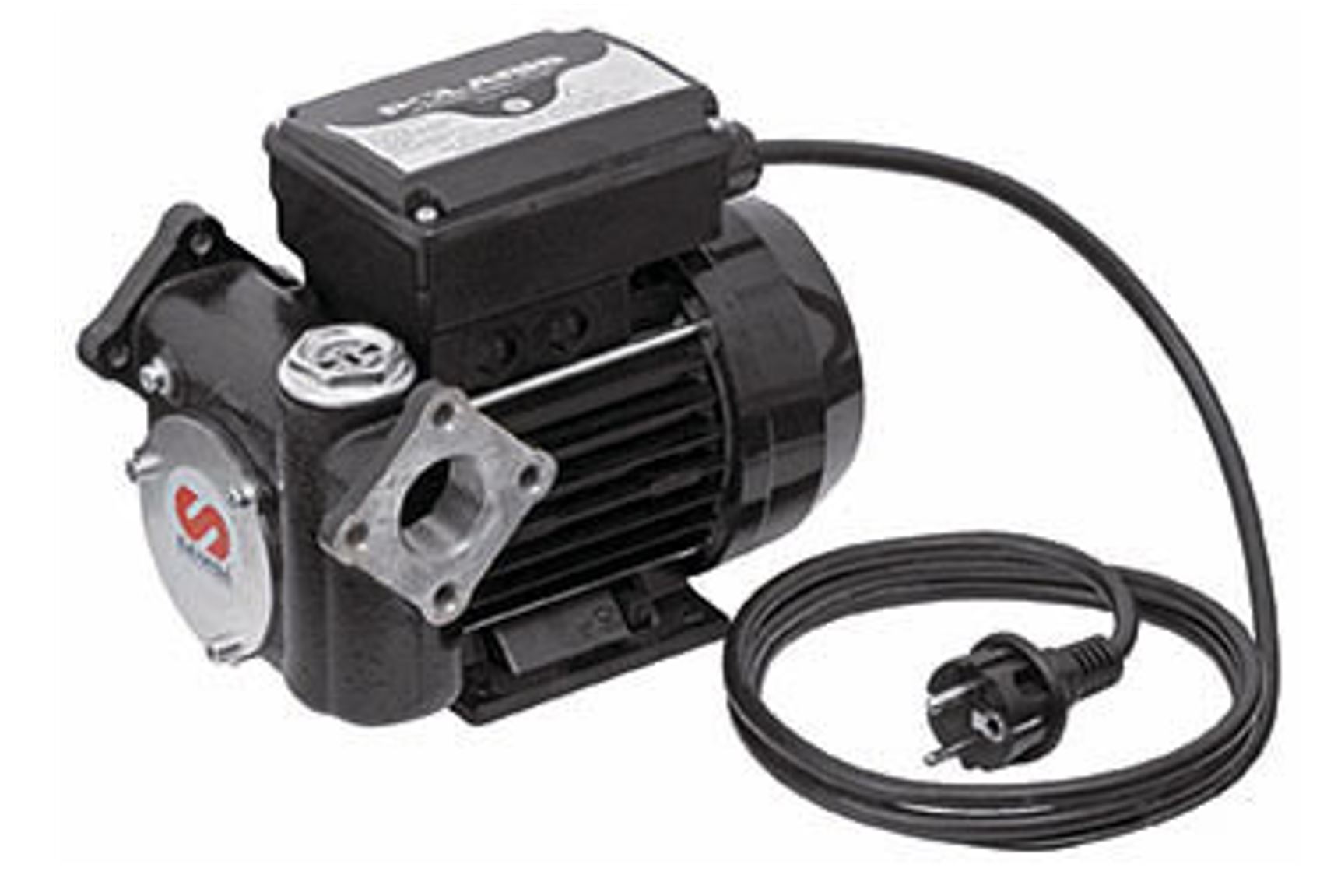

    Vane pump max. 50 l/min, max. 1,7 bar, 1-f 230 IN AC

    Code: 685720
    Zubove cerpadlo 685720 Cerpadlo
    397 € / pcs 480 € incl. VAT 397 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    22/06/2026

    Self-priming vane pump. Pump material cast iron with stainless steel finish, steel rotor and blades made of acetyl resin. Pump including by-pass valve and built-in filter with easy access for cleaning. The pump can be mounted vertically or horizontally. Electric cable length 1.8 m including 220 V plug. Input/output connection: 1" BSP (F) or flange connection. Maximum suction height: 2.5 m. Electric AC motor with IP-55 protection, allows continuous operation. Switch and fuse.

    Detailed information

    Related products

    mobilní zasobnik pro použitý olej 373500 Create Flow
    Mobile container for used oil with funnel, volume 70 l with suction cup
    Dodací termín 3 až 4 pracovní týdny
    1 160 € incl. VAT
    959 €

    70 litre combination extractor with used oil tank with funnel. Suction can be carried out independently if a vacuum is created in the vessel. Emptying by pressurisation via a...

    Code: 373500
    použitý olej Create Flow
    Mobile container for used oil with funnel, volume 70 l
    Dodací termín 3 až 4 pracovní týdny
    708 € incl. VAT
    585 €

    Used oil tank (70l) with funnel, overpressure emptying via 1.5 m long hose, pressurizing the tank to 0.5 bar (3.5 psi). Includes safety valve against overpressure.

    Code: 373400
    Diesel pump, 24 V power supply, 60 l/min, digital flow meter, 4 m dispensing hose, dispensing gun including flow meter Napájení 24 V DC
    Diesel pump, 24 V power supply, 60 l/min, digital flow meter, 4 m dispensing hose, dispensing gun including flow meter Napájení 24 V DC
    Dodací termín 3 až 4 pracovní týdny
    1 568 € incl. VAT
    1 296 €

    Diesel pump set including digital flow meter, dispensing gun, 4 dispensing hoses, 2 m suction pipe, 24V DC power supply. Flow meter is valid only for non-commercial purposes

    Code: 684464
    mazací lis pro vazelínu 157000 Create Flow
    Portable foot grease gun, 5 kg, max. pressure 500 bar
    Dodací termín 3 až 4 pracovní týdny
    728 € incl. VAT
    602 €

    Foot-operated, highly resistant lubricating press. Spring-loaded wiper cover and pump mechanism made of cast iron guarantee use even for extremely viscous lubricants The sealed...

    Code: 15700
    160103 BATERIOVÝ MAZACÍ LIS 18V, 1,5 Ah Create Flow
    Výprodej Doprodej
    Battery powered lubricating press without display, batteries 18V 1.5 Ah, max. 675 bar
    Skladem (1 pcs)
    279 € incl. VAT
    230 €

    The battery lubrication press is designed for standard cartridges or filling from a barrel. Achieves high pressures up to 675 bar (limited to 500 bar by safety valve) and...

    Code: 160103
    čerpadlo na adblue 560304 Create Flow
    Pump on ADBLUE, power supply 230V AC, 30 l/min, flow meter, 4 m dispensing hose, dispensing gun
    Dodací termín 3 až 4 pracovní týdny
    2 087 € incl. VAT
    1 725 €

    The pump set includes a 4 m x 19 mm EPDM dispensing hose and accessories: holder, gun, gauge, suction kit (depending on model).

    Code: 560304
    Mobilní mazaci lis 424152 Create Flow
    Mobile grease gun with pneumatic pump
    Dodací termín 3 až 4 pracovní týdny
    1 133 € incl. VAT
    937 €

    Mobile lubrication press includes : PM 3 - 55:1 high pressure pneumatic pump for 20 drums 404 100 with top cover for 20 kg drum 418 002, 2 m x 1/4" dispensing hose 412102...

    Code: 424152
    680300 MECHANICKÉ MĚŘIDLO NA NAFTU Create Flow
    Mechanic flow meter on diesel, flow 20 to 100 l/min
    Přesný dodací termín na poptání
    281 € incl. VAT
    232 €

    The mechanical diesel flowmeter can also be used for gravity dispensing. Resettable flow meter up to 999.9 litres and the total meter has 6 digits. 1" BSP (F) input/output, or...

    Code: 680300
    Bateriový mazaci lis 160500 Create Flow
    Battery-operated greasing press with display, batteries 20V 4 Ah, max. 700 bar
    Skladem (1 pcs)
    832 € incl. VAT
    688 €

    The battery lubrication press is designed for standard cartridges or filling from a barrel. Achieved high pressure up to 700 bar - 10000 psi (Limited to 500 bar by safety valve)...

    Code: 160510
    354120 PNEUMATICKÉ PÍSTOVÉ ČERPADLO NA OLEJ
    Pneumatic barrel pump for pumping oils 3:1 for 200 l barrels
    Skladem (2 pcs)
    496 € incl. VAT
    410 €

    PM2 pneumatic piston pump for pumping lubricants from mobile and stationary equipment. Pump size 2" BSP (M) adapter for attachment to container or drum. Plug for the possibility...

    Code: 354120
    Diesel pump, 12 V power supply, 60 l/min, digital flow meter, 4 m dispensing hose, dispensing gun including flow meter Napájení 12 V DC
    Diesel pump, 12 V power supply, 60 l/min, digital flow meter, 4 m dispensing hose, dispensing gun including flow meter Napájení 12 V DC
    Dodací termín 3 až 4 pracovní týdny
    1 568 € incl. VAT
    1 296 €

    Diesel pump set including digital flow meter (PN 680 300), dispensing gun, 4 dispensing hoses, suction pipe, 12V DC power supply. Flow meter is valid only for non-commercial...

    Code: 684465
    560230 ELEKTRICKÉ MEMBRÁNOVÉ ČERPADLO ADBLUE 230V Create Flow
    Diaphragm pump for AdBlue max. 30 l/min, max. 1,6 bar, 1-f 230 IN AC
    Dodací termín 3 až 4 pracovní týdny
    677 € incl. VAT
    559 €

    Multi-diaphragm pump without mechanical seals, designed for pumping AdBlue®/DEF. Self-priming capability, by-pass valve. Electric motor IP55 protection and on/off switch, fuse...

    Code: 560230
    čerpadlo na naftu 685754 Create Flow
    Diesel pump 50 l/min into the barrel, flow meter, 4 m dispensing hose, automatic guns
    Dodací termín 3 až 4 pracovní týdny
    1 361 € incl. VAT
    1 125 €

    Diesel pump set including mechanical flow meter (PN 680 300), dispensing gun, dispensing hose 4, suction pipe, 230V power supply. Flow meter is valid only for non-commercial...

    Code: 685754
    Ruční sudové čerpadlo pro čerpání olejů Create Flow
    Handheld lever barrel pump on oil for 200 L barrels
    Skladem (163 pcs)
    84 € incl. VAT
    70 €

    Lever operated hand drum pump for dispensing low viscosity lubricating oils from 60 - 205 litre drums. All-metal construction of pump, discharge pipe and telescopic suction...

    Code: 304500
    Sudove rotační čerpadlo 308010 Create Flow
    Handheld rotary barrel pump on oil for 25 l, 50 l and 200 l barrels
    Skladem (7 pcs)
    137 € incl. VAT
    113 €

    Hliník hand rotary pump for pumping low and medium viscosity petroleum liquids. Power 0.3 litres per revolution. The barrel pump includes a barrel adapter for height adjustment...

    Code: 308010
    684451 ELEKTRICKÉ ČERPADLO NA NAFTU 12V Create Flow
    Vane pump on diesel, 12 V power supply, 60 l/min, max. displacement 8 m
    Dodací termín 3 až 4 pracovní týdny
    790 € incl. VAT
    653 €

    Self-priming pump with automatically adjustable blades. Pump body cast iron with corrosion protection, rotor made of steel, blades made of acetyl resin. The pump is equipped...

    Code: 684451
    Show all related products Previous product Next product

    Product detailed description

    Zubove_Cerpadlo_SAMOA_Create_Flow

    Zubove_Cerpadlo_Create_Flow

    Zubove_cerpadlo_685720_Cerpadlo

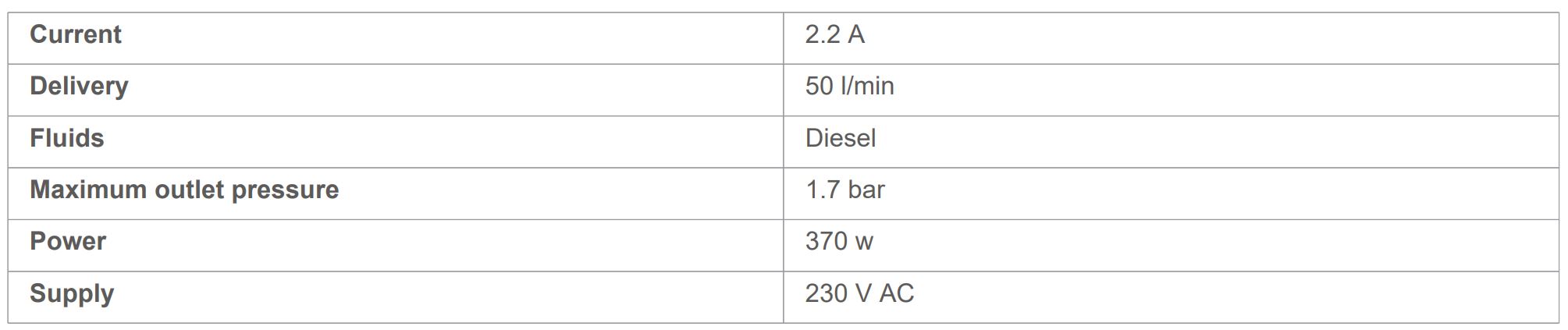

    Additional parameters

    Category: Mazací technika SAMOA Industrial
    Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
    Weight: 5 kg
    Materiál: Litina
    Max. výkon: 50 l/min
    Max. výtlak: 1.7 bar (17 m)
    Připojení: 1" BSP vnitřní závit
    El. motor: 370 W, 230 V AC, 2.2 A
    Max. teplota: +70°C
    Vhodné kapaliny: Nafta
