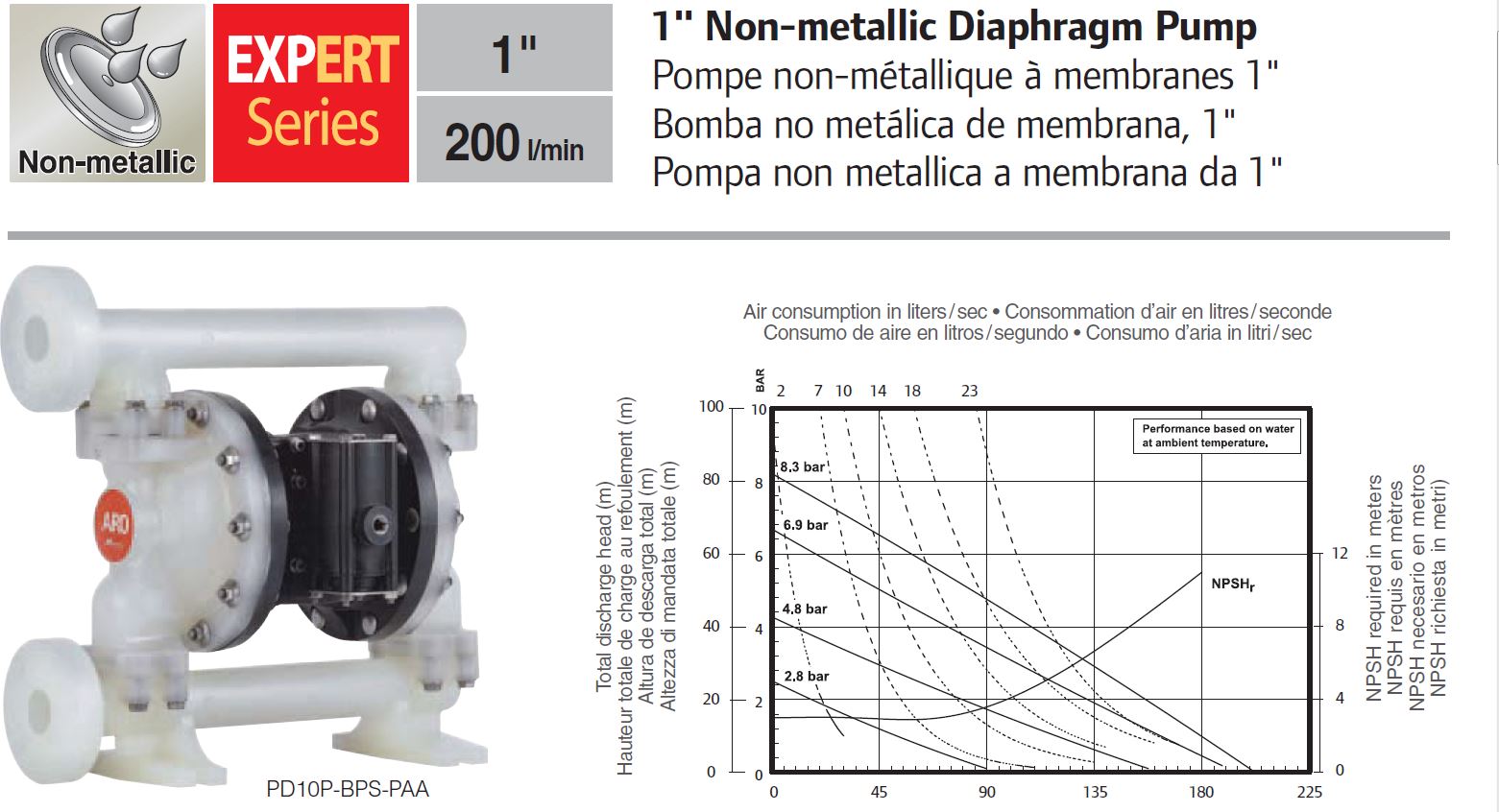

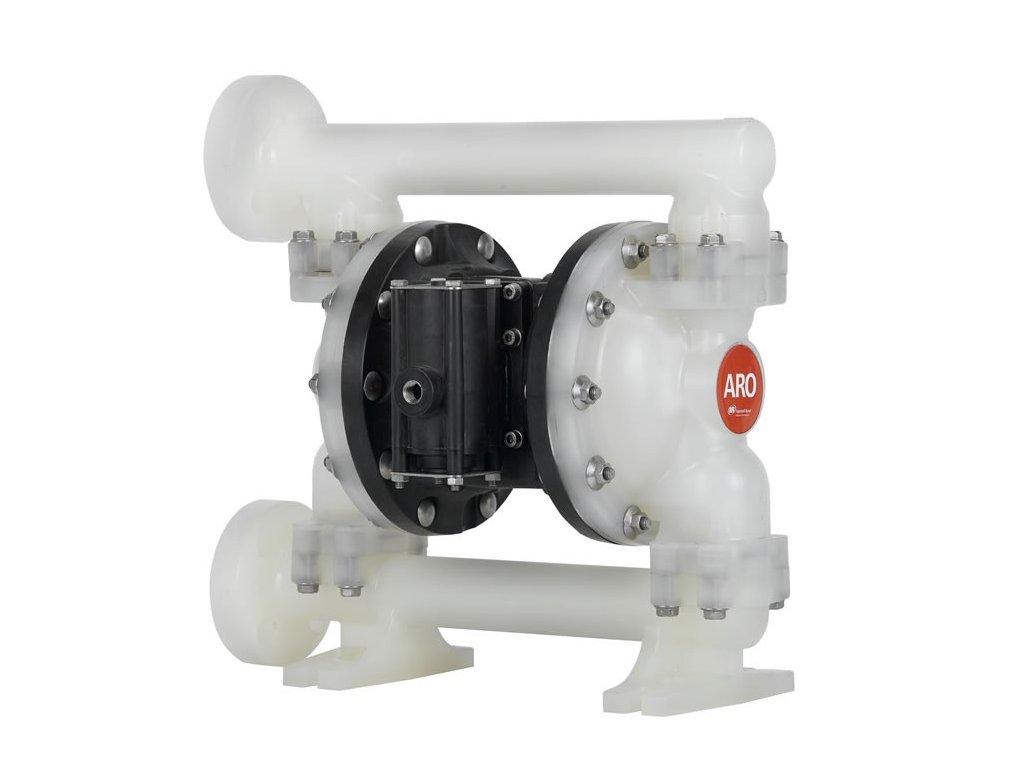

Membránové čerpadlo ARO 1" Polypropylen/Teflon, Výkon 200 l/min, výtlak 8,3 bar Výkon 200 l/min, výtlak 8,3 bar
Code: PD10P-FPS-PTTRelated products

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Hytrel diaphragm for pump ARO 6605 XXXXX

Air silencer ARO, pos. 201


ARO, valve seat, PVDF, 66605X-4XX, pos. 21

Air service kit for pump ARO PD03/05/07

Service kit for diaphragm pump ARO PD03 contains 2 pcs Teflon diaphragm, 2 pcs Santoprene backing diaphragm, 4 pcs Teflon balls, o-rings

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.


ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

Santoprene diaphragm for pump ARO PD05P

Santoprene wheel for pump ARO PD05P, pos. 22

Santoprene diaphragm for pump ARO PD10, pos. 7

Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

ARO, air service kit, PD03/05/07

Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 year |
Weight: | 9 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Polypropylen |
Materiál sedel čerpadla: | Polypropylen |
Materiál kuliček čerpadla: | Teflon |
? Materiál membrán čerpadla: | Teflon/Santopren |
Max. výkon: | 200 l/min |
Max. výtlak: | 8,3 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -5,7 m |
Max. teplota média: | +4°C až +79°C |
Max. velikost pevných částic: | max. 3,2 mm |
? Připojení sání/výtlak: | Přírubové provedení DN 25 |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | NE |

Membrane pump ARO PD05P-BRS-PAA-B with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene, max. output 54 l/min, discharge pressure...

Diaphragm pump, output 133 l/min, discharge 8,3 bar, material cast iron, seats cast iron, diaphragms and balls Teflon.

Diaphragm pump ARO 6665J-344 with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Teflon. Max. output 49,2 l/min at water, discharge...

Diaphragm pump ARO 1/4". Material Polypropylene, membranes and Santoprene beads. Output 40 l/min, displacement 8.3 bar. Pump is suitable for chemical solutions, acid alkalis,...


Diaphragm pump ARO 1/4" Polypropylene / SANTOPRENE, Output 20 l/min, discharge pressure 8,3 bar. Material Polypropylen, membrane and Santoprene beads. The pump is suitable for...

Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Teflon, Output 178 l/min, displacement 8,3 bar

Membrane pump ARO PD05-BPS-PAA-B with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 54 l/min, discharge pressure...

Plastic diaphragm pump ARO in material version polypropylene, diaphragm and Santoprene beads. Max. pump output Pump material design 465 l/min, max. discharge 8.3 bar. The...

Diaphragm pump ARO with side connection, flange version DN25. Material design Polypropylen, Santoprene balls and membranes, Output 200 l/min, discharge pressure 8,3 bar.

Diaphragm pump ARO 1" Stainless steel/Teflon, Performance 197 l/min, discharge pressure 8,3 bar

Diaphragm pump ARO 66605J-3EB with compressed air drive. Connection internal thread 1/2" BSP. Pump material Polypropylen/Santoprene. Max. output 49,2 l/min at water, discharge...

Membrane pump ARO in material Polypropylen/Teflon. Output 40 l/min, displacement 8.3 bar. The material design of the pump is suitable for acids, alkalis and various chemical...

Membrane pump ARO in material Hliník/Teflon. Output 200 l/min, displacement 8.3 bar. Including ATEX certificate. The pumps are used to pump neutral flammable liquids such as...


Diaphragm pump ARO with 1" BSP female thread, middle connection. Material Polypropylen/Santoprene, Output 178 l/min, discharge 8,3 bar
-
Katalogový list (338.1 kB)
-
Celkový katalog ARO (12 MB)
-
Tabulka chemických odolností (4.3 MB)
-
Katalog ARO (14.1 MB)
-
Manuál (1.3 MB)
