    Magnetic sensor M8 normally open AM001

    Code: AM001
    Brand: Autosen
    AM001 magnetický snímač
    €65 / pcs €78 incl. VAT €65 / 1 pcs
    Skladem na externím skladu
    Delivery to:
    09/05/2024
    • Operating distance 60 mm; based on M 4.0 magnet
    • Response sensitivity approx. 1.2 mT
    • Degree of protection IP67

    Magnetic sensor with M8x1 metal thread and M8 connector. The switching output is normally open. 60 mm switching distance based on an M 4.0 magnet with a response sensitivity of approx. 1.2 mT. With LED switching status indicator

    Detailed information

    Related products

    AA901 et main 800
    Mounting bracket M8 AA901
    Skladem na externím skladu
    €13 incl. VAT
    €11

    For safe and optimal installation of M8 sensors.

    Code: AA901
    AA952 et main 800
    Damping magnet M 3.0 AA952
    Skladem na externím skladu
    €18 incl. VAT
    €15

    Damping magnet M 3.0 made of ferrous barium. Diameter 20 mm, thickness 6,5 mm, central hole 4,1 mm. Suitable for our magnetic sensors AM001-AM004

    Code: AA952
    AA953 et main 800
    Damping magnet M 5.0 AA953
    Skladem na externím skladu
    €25 incl. VAT
    €20

    Magnetic damping magnet M 5.0 made of barium-ferrite. Diameter 31 mm, thickness 15 mm, centre hole 5 mm. Suitable for our magnetic sensors AM001-AM004

    Code: AA953
    AA001 et main 800 kabel snímače
    Sensor cable 2 m PUR M8 3 pole IP 69 AA001
    Skladem na externím skladu
    €22 incl. VAT
    €18

    AC/DC Protection IP 67 | IP 68 | IP 69K Vibration and shock resistant

    Code: AA001
    AA002 et main 800 kabel snímače
    Sensor cable 5 m PUR M8 3 pole IP 69 AA002
    Skladem na externím skladu
    €24 incl. VAT
    €20

      Vibration and shock resistant Protection IP 67 | IP 68 | IP 69K AC/DC

    Code: AA002
    AA003 et main 800 kabel snímače
    Sensor cable 2 m PUR M8 3 pole IP 69 AA003
    Skladem na externím skladu
    €25 incl. VAT
    €20

    DC PNP Protection IP 67 | IP 68 | IP 69K 2 LEDs for switching and controlling the display

    Code: AA003
    AA004 et main 800 Kabel snímače
    Sensor cable 5 m PUR M8 3 pole IP 69 AA004
    Skladem na externím skladu
    €27 incl. VAT
    €22

    DC PNP Protection IP 67 | IP 68 | IP 69K 2 LEDs for switching and controlling the display

    Code: AA004
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    €216 incl. VAT
    €179

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    €319 incl. VAT
    €263

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    €262 incl. VAT
    €216

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AM001

    General information

    Sensing 68 mm with magnet AA953, 34 mm with magnet AA952
    5000 Hz

    Outputs / inputs

    normally open (NO)

    Electrical data

    Yes
    10 ... 30 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    III
    10 mA

    Mechanical data

    PBT
    with thread
    (316L)

    gold-plated contacts3 pins
    60 mm

    accuracy

    ... 10% of the actual switching distance Sr
    .2 mT

    environmental conditions

    . -25°C
    75°C
    IP67

    Further information

    indicator LED yellow
    fixing nuts
    DIN EN 55011: class B
    DIN EN 61000-4-2 ESD
    EN 61000-4-3 HF blasted
    DIN EN 61000-4-4 rupture
    EN 61000-4-5 Surge
    EN 61000-4-6 HF wired
    CE
    cULus

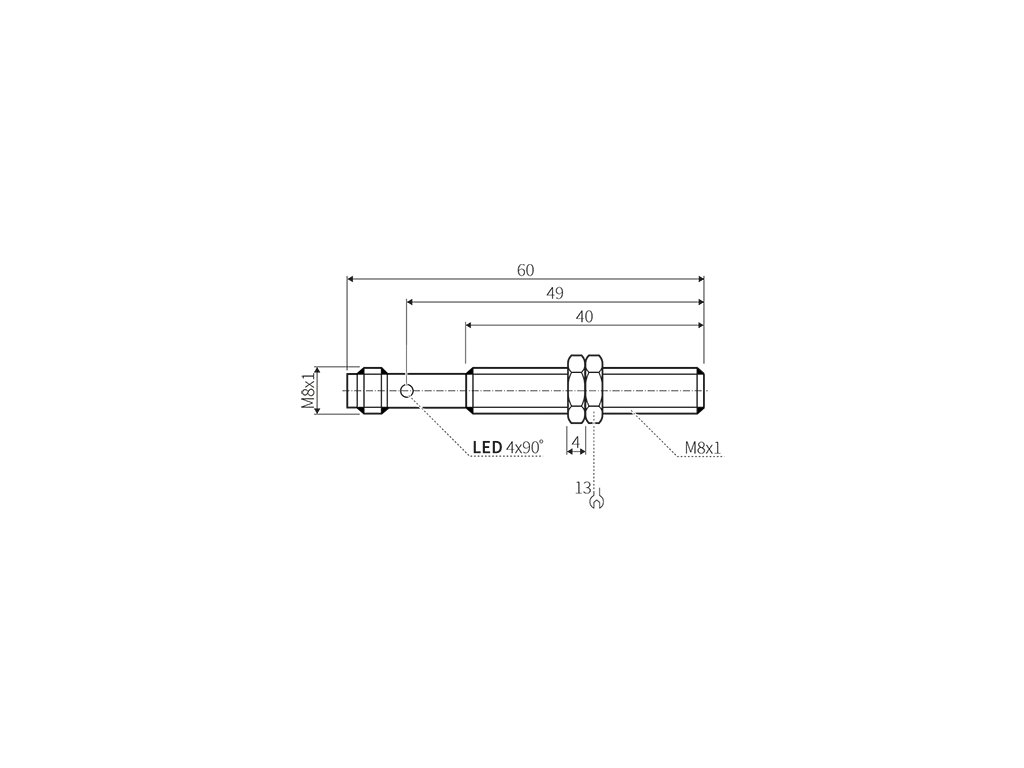

    sketches


    Additional parameters

    Category: Magnetické snímače
    Warranty: 5 let
    Weight: 0.1 kg
