    Home / Produkty / Dávkovací čerpadla SEKO / ACL 603 PVDF/Teflon/Viton max. 8 l/hour, max. 12 bar

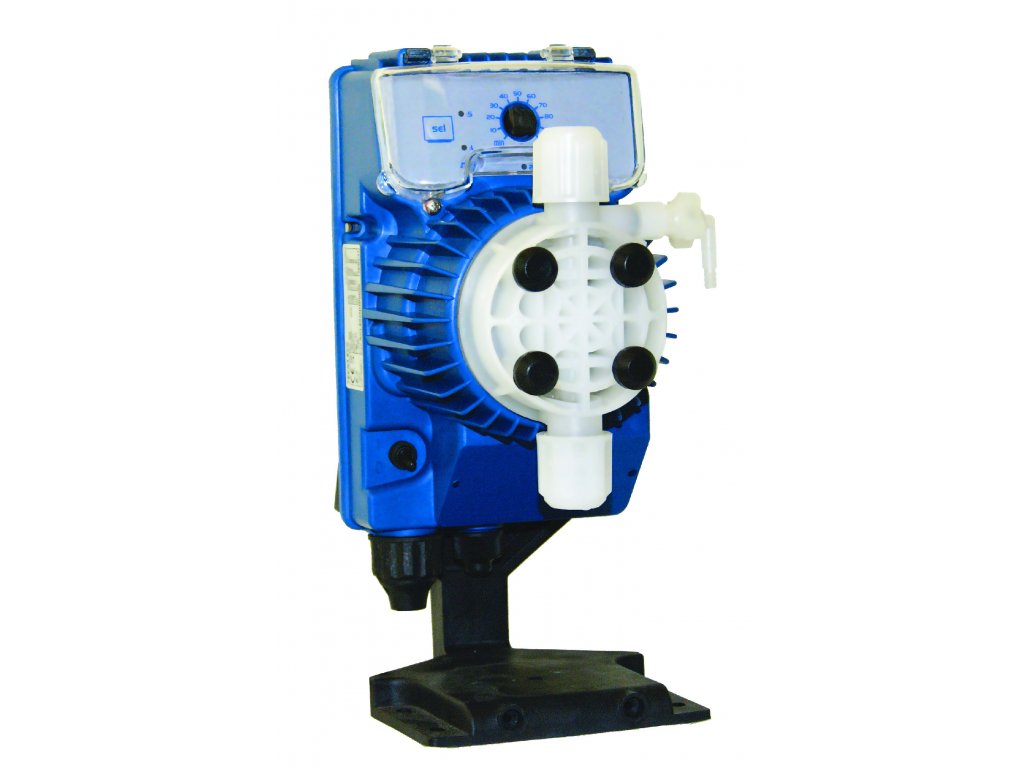

    ACL 603 PVDF/Teflon/Viton max. 8 l/hour, max. 12 bar

    Code: AKL603NHH0000
    Dávkovací čerpadlo SEKO TEKNA EVO AKL Create Flow
    358 € / pcs 434 € incl. VAT 358 € / 1 pcs
    Skladem (1 pcs)
    Delivery to:
    07/10/2025

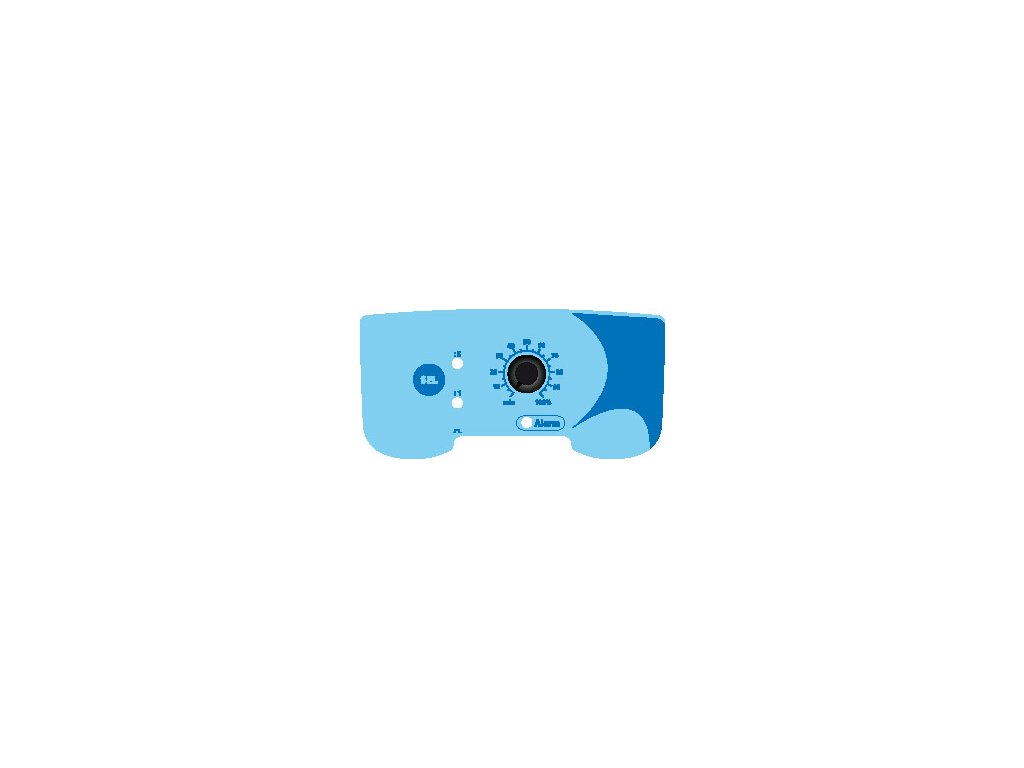

    Analog dosing pump. Manually adjustable constant flow via potentiometer on front panel, frequency ranges (0 ÷ 20% or 0 ÷ 100%), LED power-on indicator. Included in the package is a foot and injection valve in PVDF material, Viton gasket, PVC hose for suction approx. 1.5 m long, Polyethylene hose for discharge approx. 1.5 m long, plastic pump foot (holder).

    Detailed information

    Related products

    Plovák pro dávkovací čerpadlo SEKO Create FLow
    Float switch SEKO
    Skladem (19 pcs)
    47 € incl. VAT
    39 €

    Voltageless level gauge including bracket for attachment to heel filter SEKO. A level sensor prevents the pump from running if the fluid in the storage tank runs out. In the...

    Code: EM99121000
    Hadička pro dávkovací čerpadla SEKO 8 x12 mm Create Flow
    Polyethylene tubing for dosing pumps SEKO EVO 603-800 4 x 6 mm
    Skladem (90 m)
    1 € incl. VAT
    1 €

    Polyethylene hose for dosing pumps SEKO EVO 603 and 800, size 4 x 6 mm. Can be ordered from 1 m.

    Code: RIC0153022

    Product detailed description

    Dávkovací čerpadlo SEKO pro automyčky Create FLow

    Čerpadlo pro automyčku

    Čerpadlo SEKO pro automyčku Create Flow

     Polic-AKS-AKL

    Dávkovací čerpadlo pro automyčku Create Flow

    Dávkovací čerpadlo SEKO příslušenství Create FLow



























    Additional parameters

    Category: Dosing pumps SEKO
    Warranty: 0
    Weight: 3 kg
    Max. výkon: 8 l/hod
    Max. tlak: 12 bar
    ? Počet zdvihů: 160 zdvihů/min
    Hlava: PVDF
    Membrána: Teflon
    Kuličky: Kereamika
    Těsnění: Viton
    Napájení: 100-240 V AC 50/60 Hz
    ? Instalační sada: Vstřikovací a patní ventil, hadička na sání a výtlak, patní držák
    ATEX certifikát: NE
