Membránové čerpadlo SEAFLO33 Max.výkon 11,6 l/min, max. 3,1 bar, samonasávací -1.8 m. Napájení 12 V DC
Code: SFDP1-030-045-33Related products
Product detailed description
Series 33 pumps are designed for a wide range of applications including liquid pumping, spraying, circulation, filtration and dosing. The diaphragm pumps are self-priming (-1.8 m) and can be operated without pumping fluid (dry running) without damaging the pump. The function of the integrated pressure switch and integrated by-pass ensures safe operation of the pump. An integrated pressure sensor ensures that the pump is switched on when the pressure drops in the discharge pipe. When the tap on the discharge pipe is closed, the pump is stopped by a pressure rise.

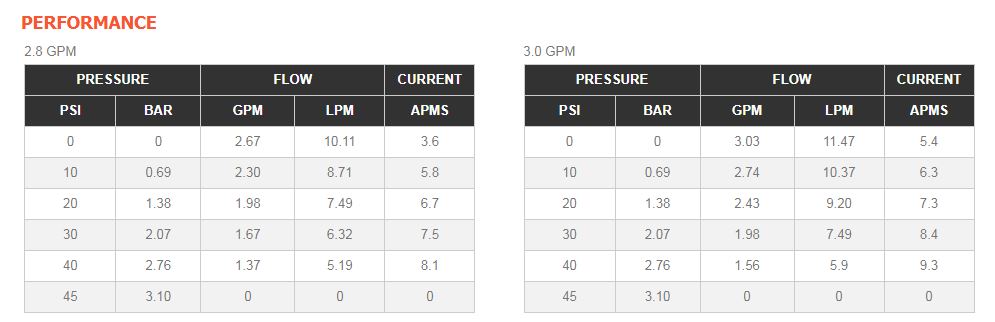

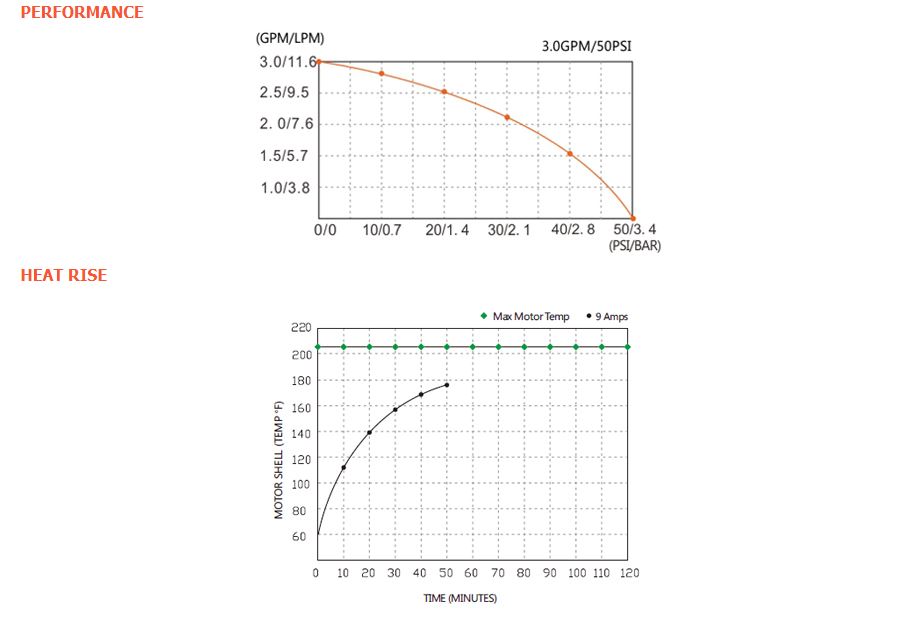

Maximum pump output is 11.6 l/min, maximum discharge pressure 3.1 bar. (The values are tabulated. Please refer to the attached power curve for exact performance).
Additional parameters
| Category: | 12 V DC pumps |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 3 kg |
| Materiál tělesa čerpadla: | Nylon/Polypropylen |
| Ventliy: | EPDM |
| Membrány: | Santopren |
| ? Max. výkon: | 11,6 l/min |
| Výtlak: | 3,1 bar (31 m) |
| Sání: | -1,8 m |
| Připojení sání/výtlak: | 1/2" (14 mm) vnější závit |
| Maximální terplota: | +60°C |
| Funkce: | integrovaný tlakový senzor |
| Rozměr: | 210 x 114,5 x 86 mm |
| Elektromotor : | 12V DC, 6.0 A |
| ATEX: | Ne |
| Krytí el. motoru: | IP 42 |
